Saab 9000 1991-1993 Headlamp, sealed beam

Group 3a Electrical, general, section 560

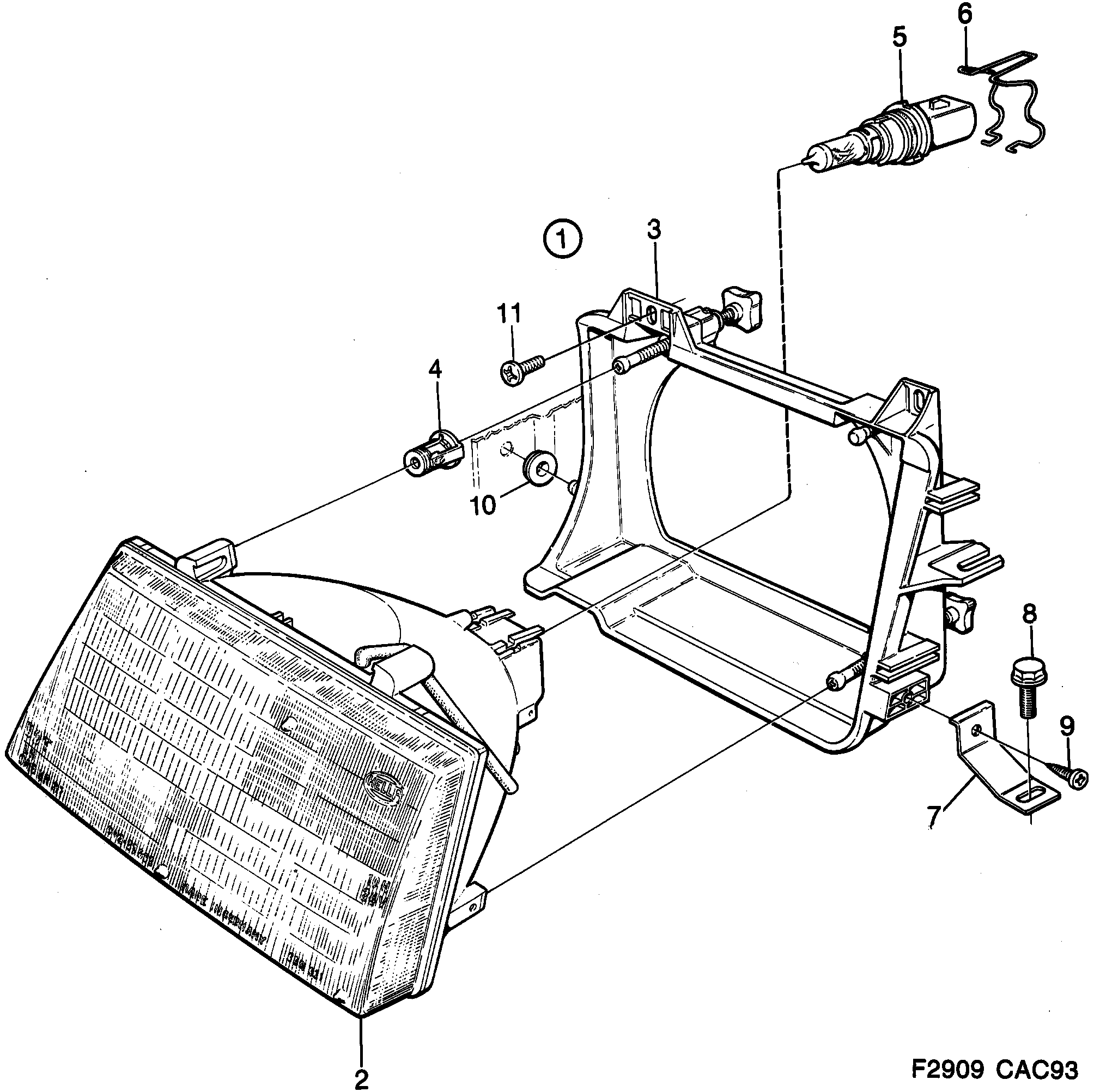

Saab 9000 Headlamp, sealed beam diagram
PosArticlePart No.
1Headlamp9521352
1Headlamp9521360
2Headlamp insert9521774
2Headlamp insert9521782
3Attaching frame9521816
3Attaching frame9521824
4Bearing sleeve9526484
5Bulb32000476 (replaces 9512401)
6Spring9526260
7Attaching bracket9525254
7Attaching bracket9525262
8Screw7982366 (replaces 7975170)
9Screw7922438
10Bushing9504648
11Screw7973001 (replaces 7973159)
