Saab 9000 1990-1990 Headlamp, sealed beam

Group 3a Electrical, general, section 530

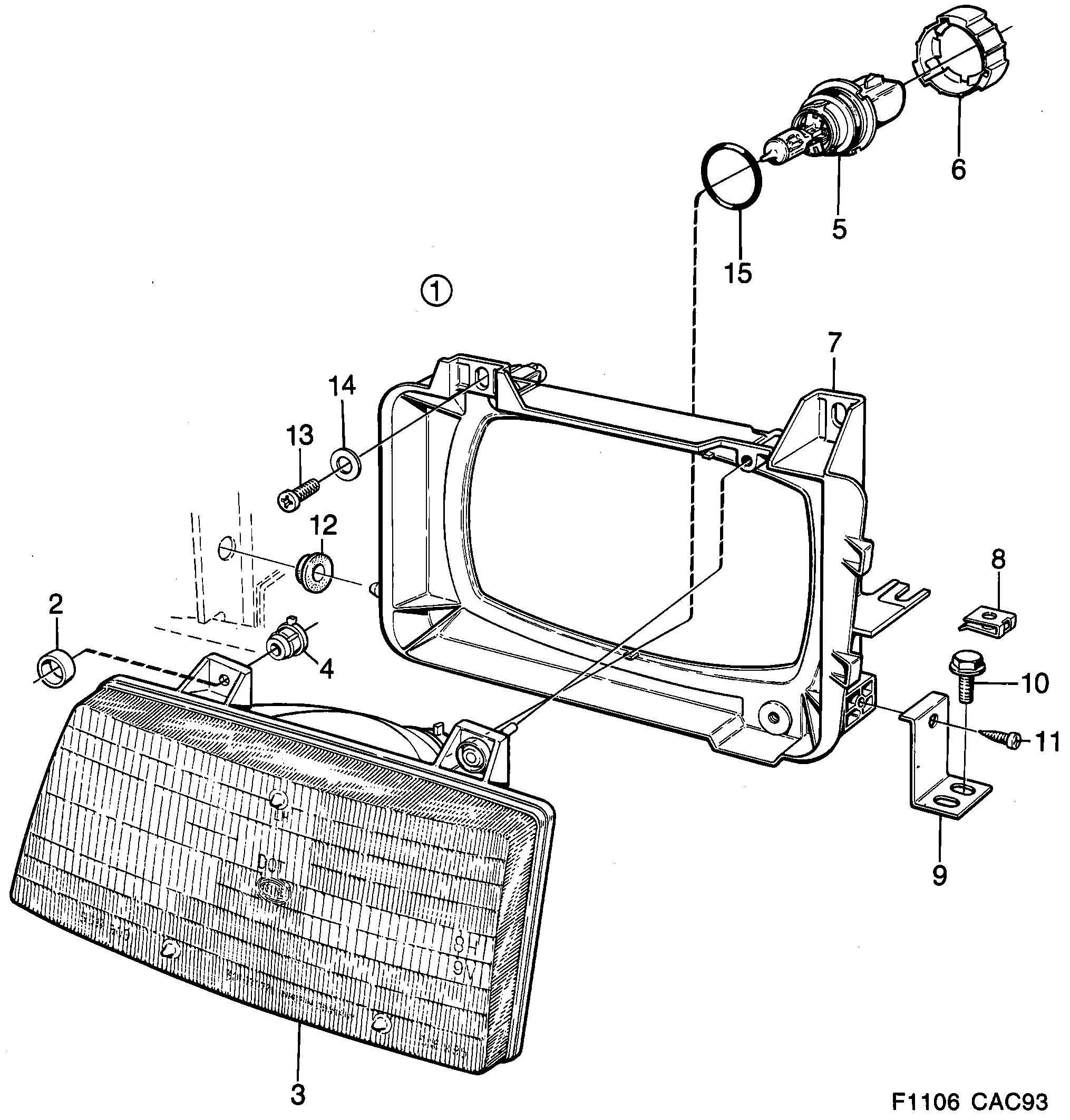

Saab 9000 Headlamp, sealed beam diagram
PosArticlePart No.
1Headlamp9122672
1Headlamp9122680
2Clamping sleeve9513037
3Headlamp insert9122698
3Headlamp insert9122706
4Bearing sleeve9512328
5Bulb32000476 (replaces 9512401)
6Lock ring9512393
7Attaching frame9513078
7Attaching frame9513086
8Clip8550824
9Attaching bracket4013017
9Attaching bracket4013025
10Screw7982366 (replaces 7975170)
11Screw7922438
12Bushing9504648
14Washer8029951
15Protection9514811
