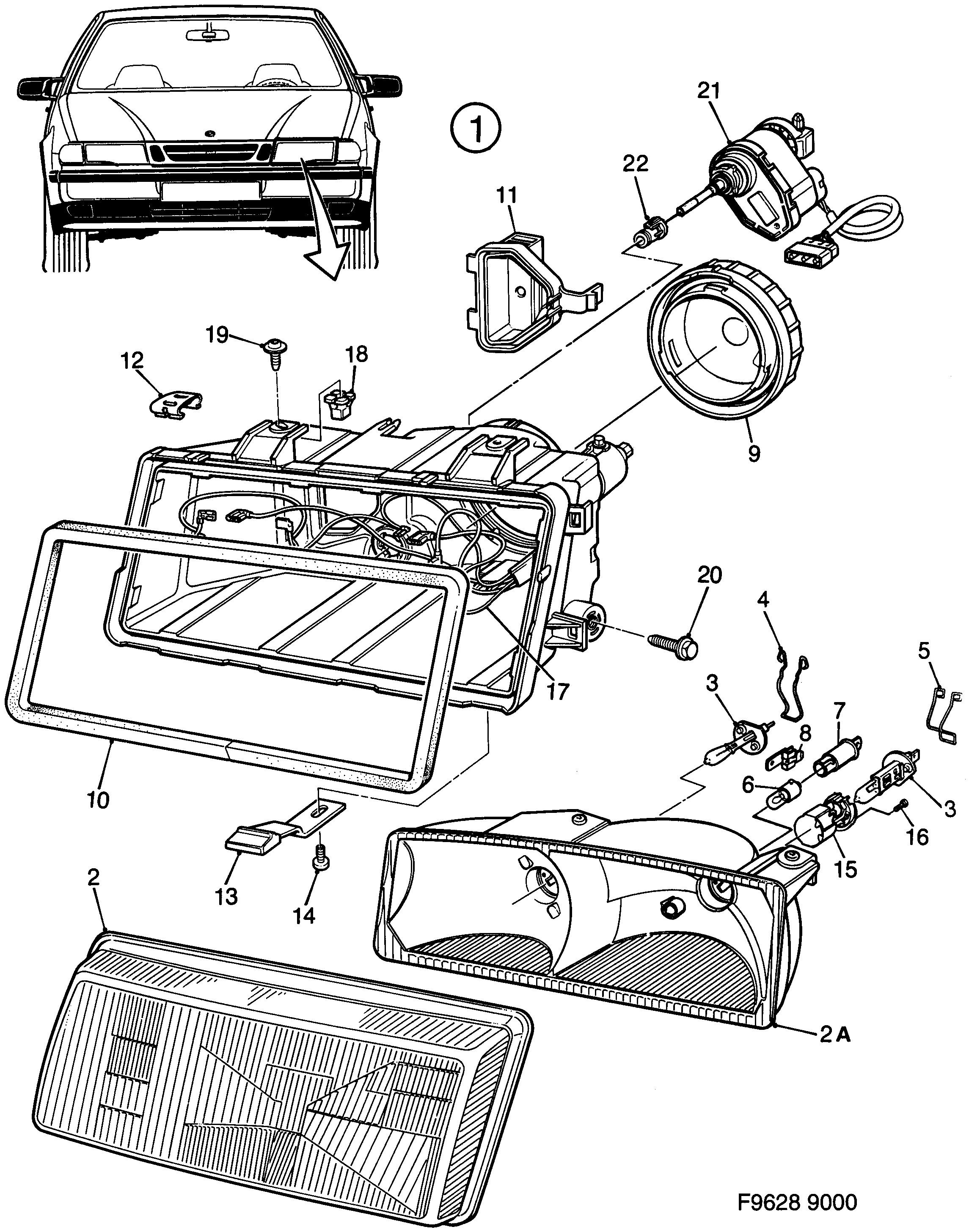

Group 3a Electrical, general, section 510
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 9081373 |
| 1 | Headlamp | 9081381 |
| 1 | Headlamp | 9085671 |
| 1 | Headlamp | 9085689 |
| 1 | Headlamp | 9082918 |
| 1 | Headlamp | 9082926 |
| 2 | Headlamp lens | 9081431 |
| 2 | Headlamp lens | 9081449 |
| 2 | Headlamp lens | 9089772 |
| 2 | Headlamp lens | 9089780 |
| 2 | Headlamp lens | 9084013 |
| 2 | Headlamp lens | 9084021 |
| 2A | Reflector | 9081415 |
| 2A | Reflector | 9081423 |
| 2A | Reflector | 9083999 |
| 2A | Reflector | 9084005 |
| 3 | Bulb | 93169009 (replaces 4685301) |
| 4 | Spring | 4089256 |
| 5 | Spring | 4447744 |
| 6 | Bulb | 12798497 (replaces 7157308) |
| 7 | Bulb socket | 4381448 |
| 8 | Clip | 4381455 |
| 9 | Sealing cover | 8539710 |
| 10 | Seal | 9521881 (replaces 9082439) |
| 11 | Cover | 9085416 |
| 12 | Clip | 9556705 |
| 13 | Stop | 9082579 |
| 14 | Screw | 7922891 |
| 15 | Bulb socket | 4447736 |
| 16 | Screw | 4447751 |
| 17 | Cable harness | 4253407 |
| 18 | Nut | 7975261 |
| 19 | Screw | 7973001 |
| 19 | Screw | 7985690 |
| 20 | Screw | 11900354 (replaces 7978109) |
| 20 | Hexagon screw | 92152130 (replaces 7984305) |
| 21 | Electrical motor | 4094967 |
| 21 | Electrical motor | 4343125 |
| 22 | Setting screw | 4957510 |
