Saab 9000 1985-1989 Headlamp, sealed beam

Group 3a Electrical, general, section 490

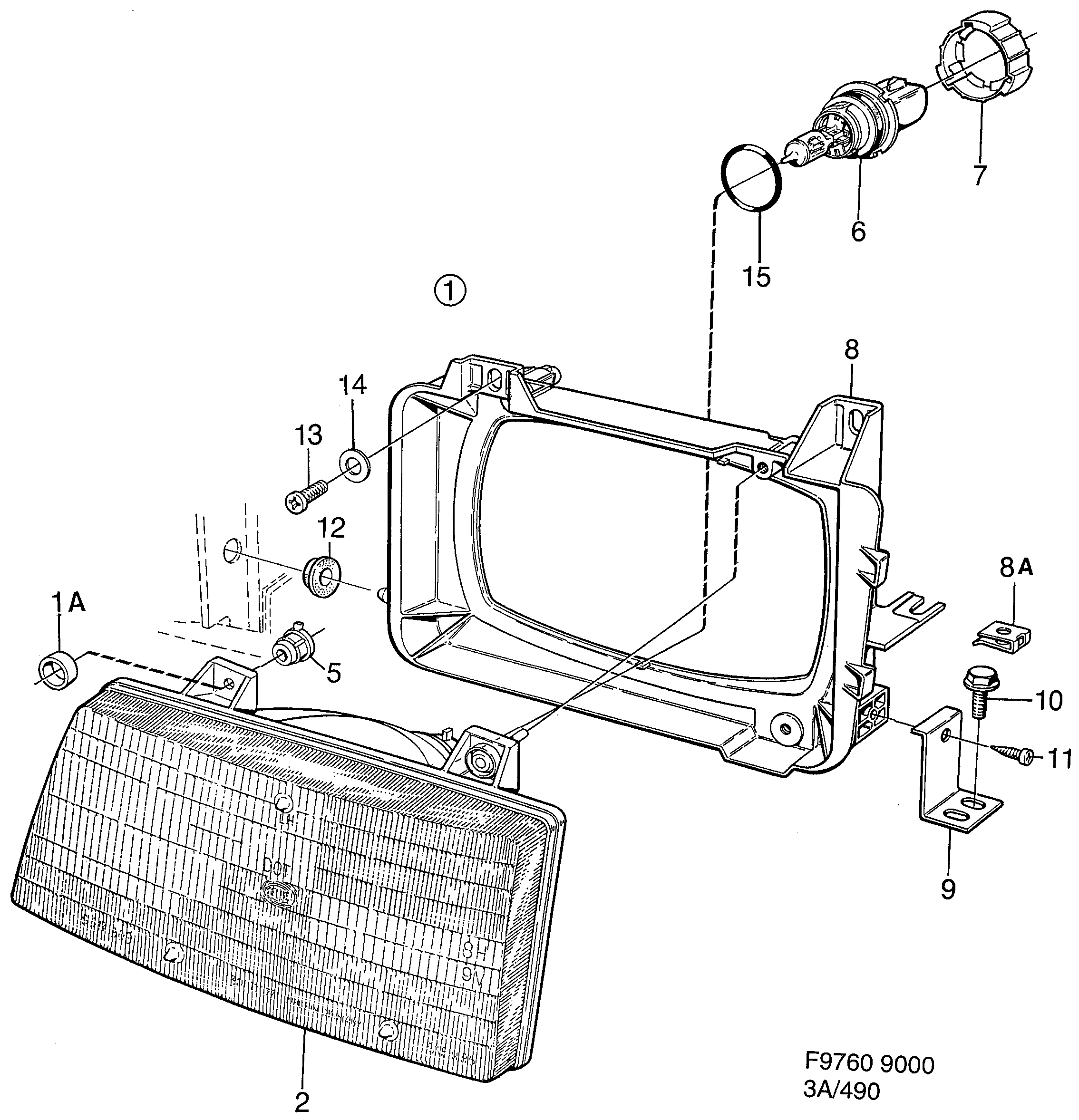

Saab 9000 Headlamp, sealed beam diagram

Pos	Article	Part No.
1	Headlamp	9122672
1	Headlamp	9122680
1A	Clamping sleeve	9513037
2	Headlamp insert	9122698
2	Headlamp insert	9122706
5	Bearing sleeve	9512328
6	Bulb	32000476 (replaces 9512401)
7	Lock ring	9512393
8	Attaching frame	9513078
8	Attaching frame	9513086
8A	Clip	8550824
9	Attaching bracket	4013017 (replaces 9504630)
9	Attaching bracket	4013017
9	Attaching bracket	4013025
10	Screw	7969223
10	Screw	7982366 (replaces 7975170)
11	Screw	7973001 (replaces 7976954)
11	Screw	7973001 (replaces 7973159)
11	Screw	7922438
12	Bushing	9504648
14	Washer	8029951
15	Protection	9514811
