Saab 9000 1994-1998 Trionic

Group 3a Electrical, general, section 450

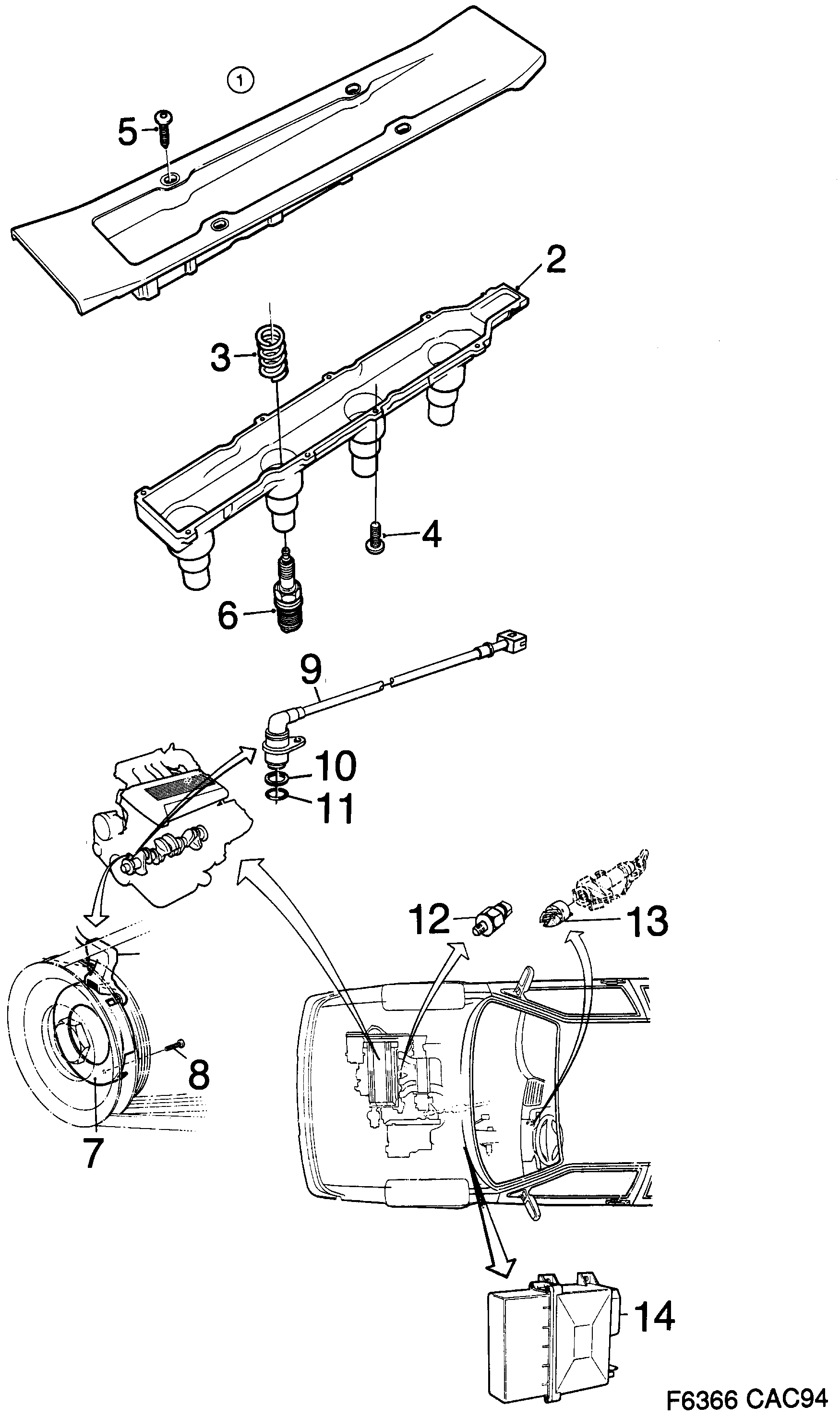

Saab 9000 Trionic diagram

Pos	Article	Part No.
1	Ignition cassette	55561132 (replaces 9134404)
1	Ignition discharge module	55561132 (replaces 9178955)
2	Lower section	9167016
3	Spring	9167032
4	Screw	7968316
5	Screw	30551902 (replaces 9145764)
6	Spark plug	30520467
6	Spark plug	32000330
7	Aperture disc	55557241 (replaces 9167024)
8	Screw	9114455
9	Crankshaft position sensor	90451441 (replaces 4227203)
10	Support ring	93166804
11	O-ring	9171117
