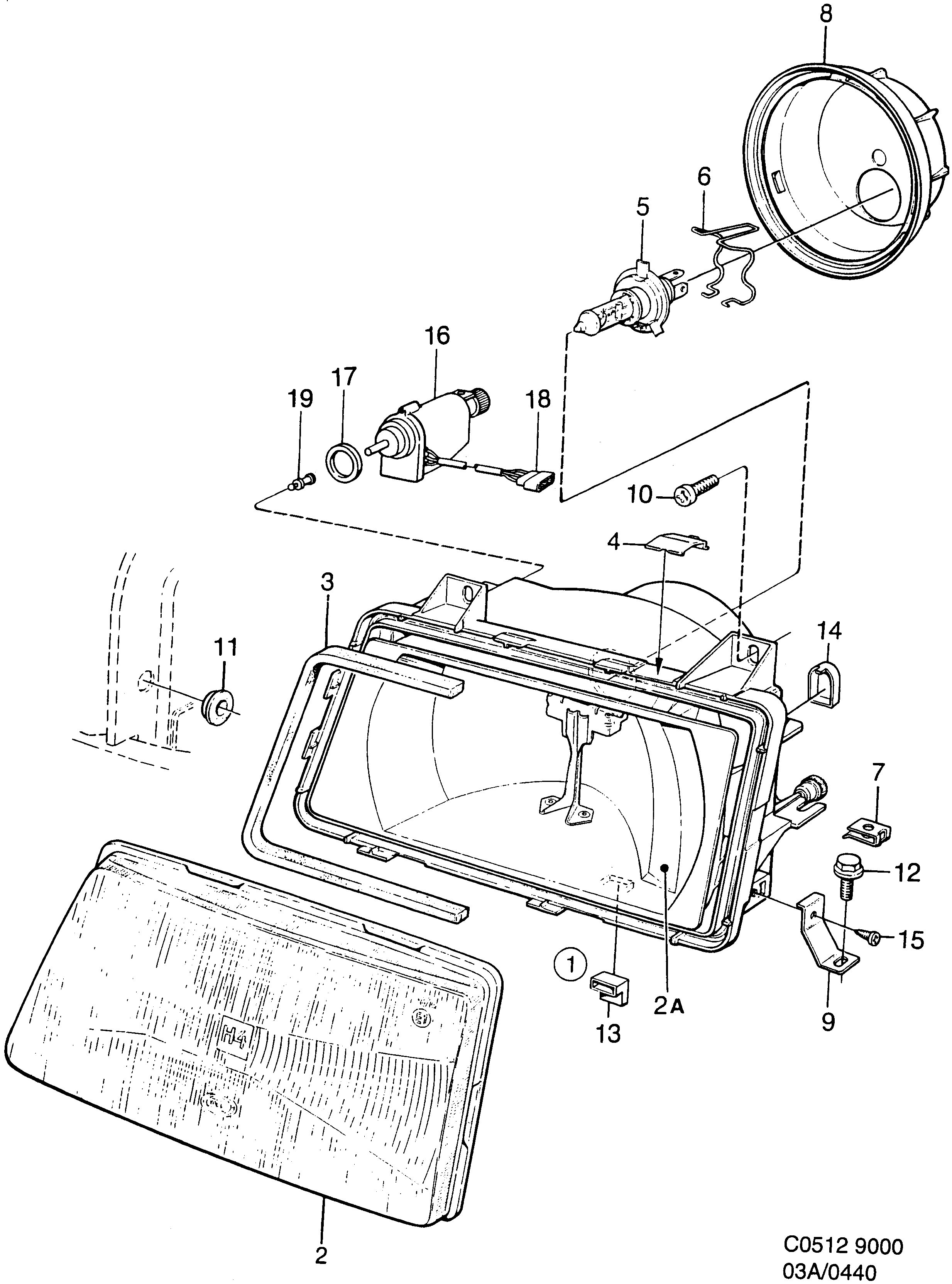

Group 3a Electrical, general, section 440
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 9125279 |
| 1 | Headlamp | 32000388 (replaces 9125287) |
| 1 | Headlamp | 9125295 |
| 1 | Headlamp | 9125303 |
| 2 | Headlamp lens | 9521956 |
| 2 | Headlamp lens | 9521964 |
| 2 | Headlamp lens | 9525312 |
| 2 | Headlamp lens | 9525320 |
| 2A | Reflector | 9125311 |
| 2A | Reflector | 32000390 (replaces 9125329) |
| 2A | Reflector | 9125337 |
| 2A | Reflector | 9125345 |
| 3 | Seal | 9521881 |
| 4 | Clip | 9556705 |
| 5 | Bulb | 93169008 (replaces 8510851) |
| 6 | Spring | 9564352 |
| 7 | Clip | 8550824 |
| 8 | Cover | 9525015 |
| 9 | Attaching bracket | 9525254 |
| 9 | Attaching bracket | 9525262 |
| 10 | Screw | 7973001 (replaces 7973159) |
| 11 | Bushing | 9504648 |
| 12 | Screw | 7969223 |
| 13 | Vent pipe | 9526351 |
| 14 | Bleeder cover | 9526344 |
| 16 | Electrical motor | 9566662 |
| 17 | Sealing ring | 9529793 |
| 18 | Connector housing | 9503327 |
| 19 | Adapter | 9569963 |
| Lamp adjustment kit | 8547846 |
