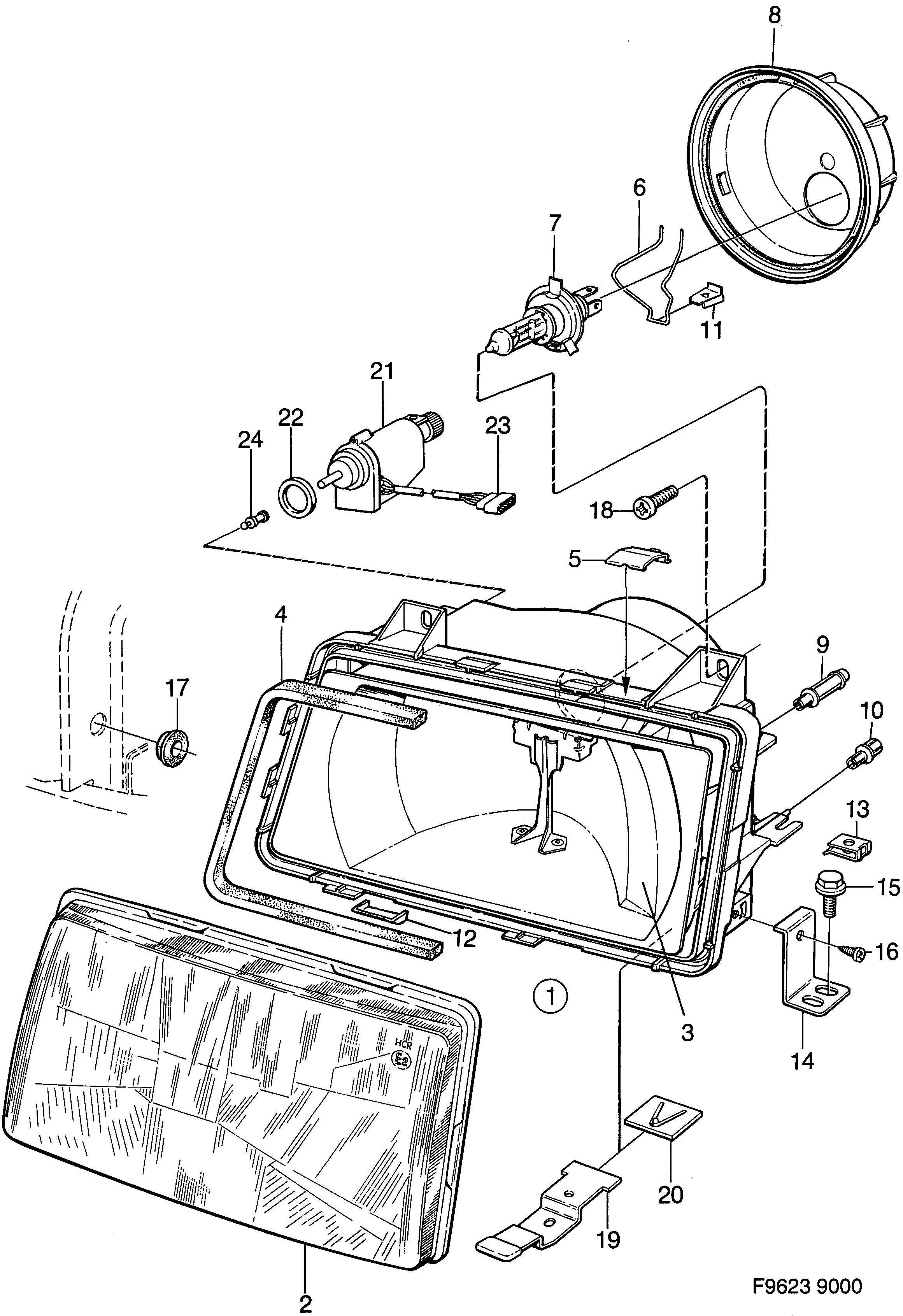

Group 3a Electrical, general, section 430
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 9565938 |
| 1 | Headlamp | 9565946 |
| 1 | Headlamp | 9565953 |
| 1 | Headlamp | 9565961 |
| 2 | Headlamp lens | 9501172 |
| 2 | Headlamp lens | 9501180 |
| 2 | Headlamp lens | 9505157 |
| 2 | Headlamp lens | 9505165 |
| 3 | Reflector | 9501214 |
| 3 | Reflector | 9501222 |
| 3 | Reflector | 9505132 |
| 3 | Reflector | 9505140 |
| 4 | Seal | 4251856 |
| 4 | Seal | 4251864 |
| 5 | Clip | 9501230 |
| 6 | Spring | 9501255 |
| 7 | Bulb | 93169008 (replaces 8510851) |
| 8 | Cover | 9513581 |
| 9 | Bearing sleeve | 4381463 |
| 10 | Bearing sleeve | 4381471 |
| 11 | Clip | 4381489 |
| 12 | Support | 9564238 |
| 13 | Clip | 8550824 |
| 14 | Attaching bracket | 4013017 (replaces 9504630) |
| 14 | Attaching bracket | 4013017 |
| 14 | Attaching bracket | 4013025 |
| 15 | Screw | 7969223 |
| 15 | Screw | 7982366 (replaces 7975170) |
| 16 | Screw | 7973001 (replaces 7976954) |
| 16 | Screw | 7973001 (replaces 7973159) |
| 17 | Bushing | 9504648 |
| 19 | Stop | 9502618 |
| 20 | Bracket | 9502766 |
| 21 | Electrical motor | 9529785 |
| 22 | Sealing ring | 9529793 |
| 23 | Connector housing | 9503327 |
| 24 | Adapter | 9569963 |
| Lamp adjustment kit | 8547838 |
