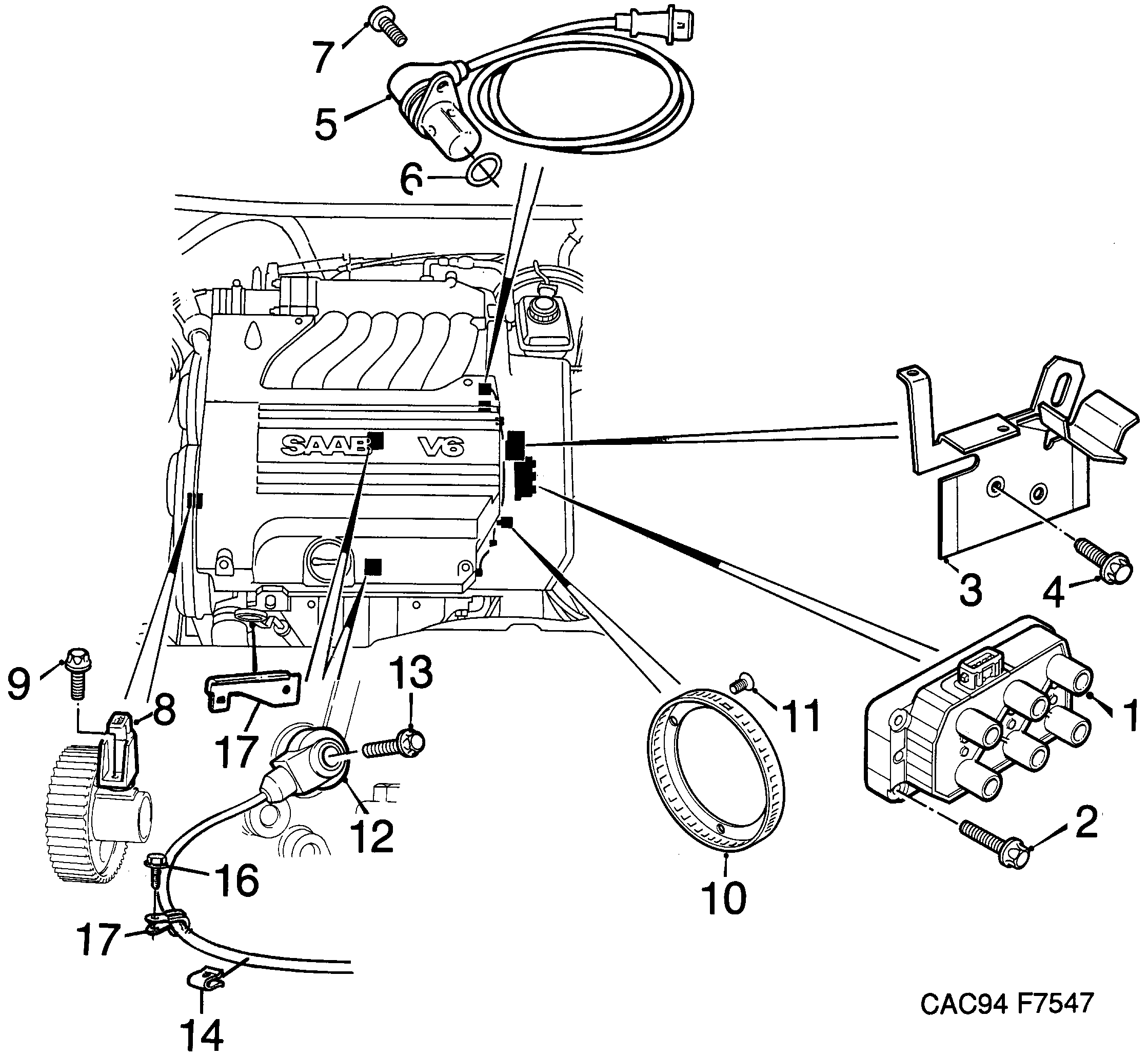

Group 3a Electrical, general, section 420
| Pos | Article | Part No. |
|---|---|---|
| 1 | Ignition coil module | 4770046 |
| 1 | Ignition coil module | 4770210 |
| 2 | Screw | 11093953 (replaces 4770020) |
| 3 | Bracket | 4504478 |
| 4 | Screw | 4504528 |
| 5 | Crankshaft position sensor | 90357481 |
| 5 | Crankshaft position sensor | 91153782 (replaces 4300737) |
| 6 | O-ring | 9171117 |
| 7 | Screw | 11093961 (replaces 4500351) |
| 8 | Camshaft position sensor | 90510667 (replaces 4770079) |
| 8 | Camshaft position sensor | 4660452 |
| 10 | Aperture disc | 90469427 (replaces 4501185) |
| 11 | Screw | 90280051 (replaces 4501193) |
| 12 | Knock sensor | 90511177 (replaces 8822595) |
| 12 | Knock sensor | 4300729 |
| 13 | Screw | 11093611 (replaces 4501110) |
| 14 | Clamp | 12763576 (replaces 4388757) |
| 15 | Clamp | 7969348 |
| 16 | Screw | 11900353 (replaces 7978091) |
| 17 | Connector holder | 4229944 |
