Saab 9000 1985-1989 SAAB DI

Group 3a Electrical, general, section 400

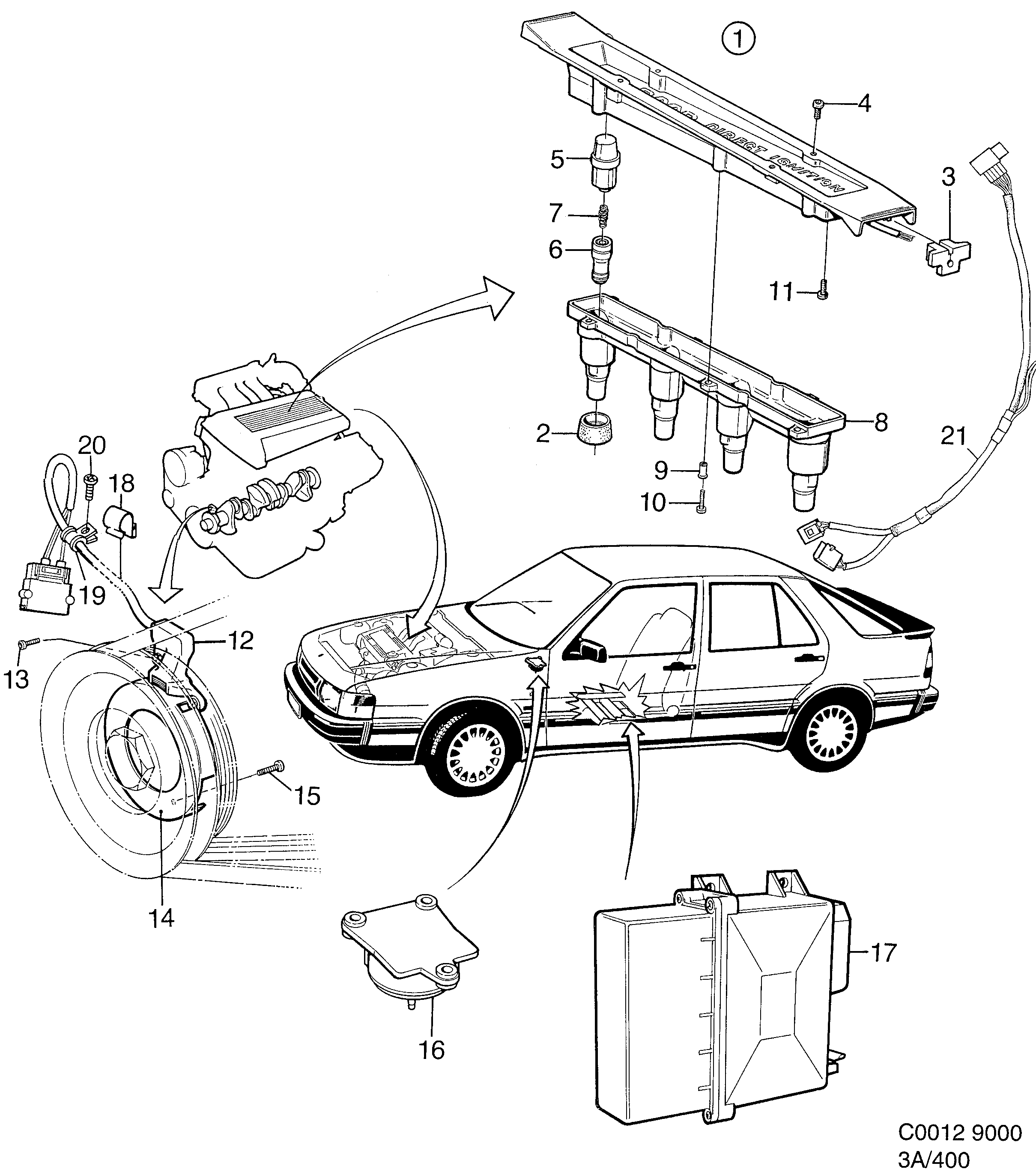

Saab 9000 SAAB DI diagram

Pos	Article	Part No.
1	Ignition cassette	55561132 (replaces 7485808)
2	Seal	7480056
3	Grommet	7586811
4	Screw	8059578 (replaces 9114976)
5	Ignition coil	7589815
6	Sleeve	7589831
7	Spring	7589823
8	Lower section	7589856
9	Spacer sleeve	7589864
10	Screw	7968316
11	Screw	7974512
12	Sensor	7482540
13	Screw	9114455
14	Aperture disc	9118001
15	Screw	9127440
16	Sensor	7538697
17	Electronic unit	7585797
17	Electronic unit	7484272
17	Electronic unit	9119348
17	Electronic unit	7483514
17	Electronic unit	8826588 (replaces 7484306)
18	Clamp	7108491
18	Clip	8578262
19	Clamp	8139339
20	Screw	8129868
20	Screw	8125023
21	Cable harness	9321787
