Saab 9000 1993-1993 Trionic

Group 3a Electrical, general, section 380

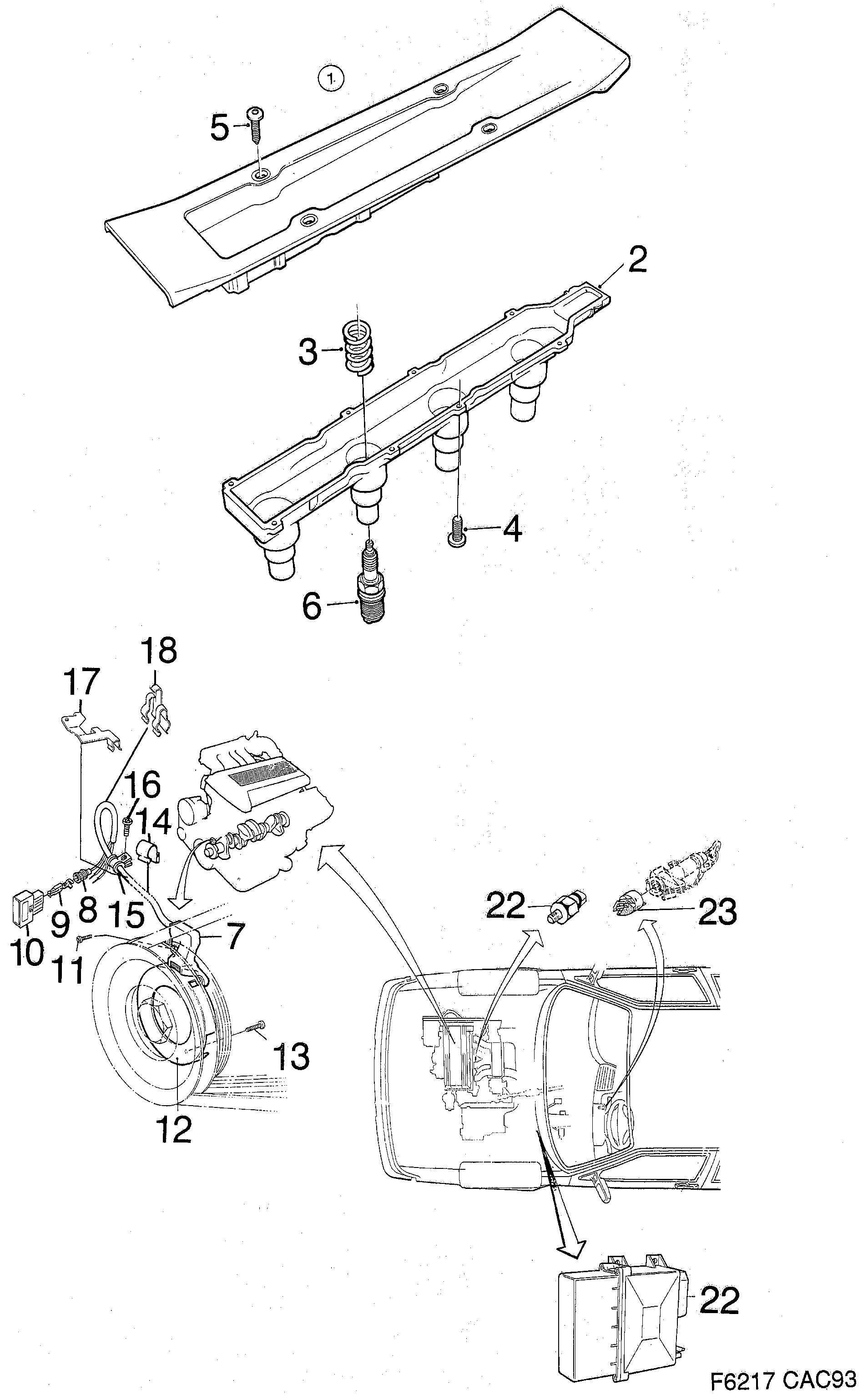

Saab 9000 Trionic diagram

Pos	Article	Part No.
1	Ignition cassette	55561132 (replaces 9134404)
2	Lower section	9167016
3	Spring	9167032
4	Screw	7968316
5	Screw	30551902 (replaces 9145764)
7	Sensor	9133067
7	Sensor	9130493
8	Seal	4061966
9	Cable terminal	4692331 (replaces 4061578)
10	Connector housing	12788993 (replaces 4113601)
11	Screw	9127440
12	Aperture disc	30520456 (replaces 9117177)
13	Screw	9114455
14	Clip	4158671
15	Clamp	8139339
16	Screw	8125023
17	Clamp	8856890
18	Clamp	8856908
22	Electronic unit	7859705
22	Electronic unit	7859721
22	Electronic unit	4300109
22	Electronic unit	4300125
22	Electronic unit	7859747
22	Electronic unit	4300448
22	Electronic unit	9108531
22	Electronic unit	4300455
22	Electronic unit	7859689
22	Electronic unit	7859697
