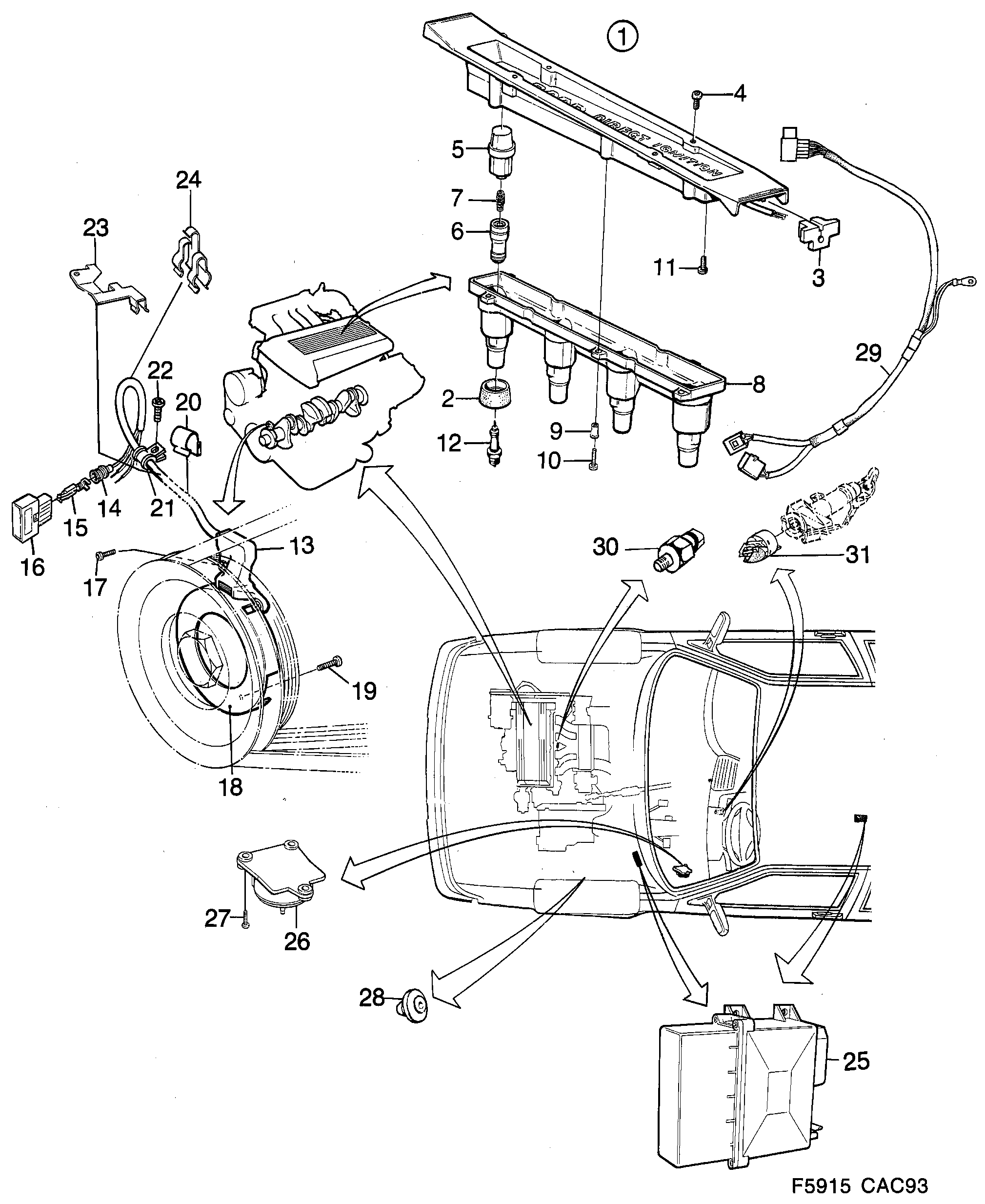

Group 3a Electrical, general, section 350
| Pos | Article | Part No. |
|---|---|---|
| 1 | Ignition cassette | 55561132 (replaces 7485808) |
| 2 | Seal | 7480056 |
| 3 | Grommet | 7586811 |
| 4 | Screw | 8059578 (replaces 9114976) |
| 4 | Screw | 8857872 |
| 5 | Ignition coil | 7589815 |
| 6 | Sleeve | 7589831 |
| 7 | Spring | 7589823 |
| 8 | Lower section | 7589856 |
| 9 | Spacer sleeve | 7589864 |
| 10 | Screw | 7968316 |
| 11 | Screw | 7974512 |
| 13 | Sensor | 7482540 |
| 13 | Sensor | 9133067 |
| 13 | Sensor | 8786246 |
| 13 | Sensor | 9130493 |
| 14 | Seal | 4061966 |
| 15 | Cable terminal | 4692331 (replaces 4061578) |
| 16 | Connector housing | 12788993 (replaces 4113619) |
| 17 | Screw | 9114455 |
| 17 | Screw | 9127440 |
| 18 | Aperture disc | 9118001 |
| 18 | Aperture disc | 30520456 (replaces 9117177) |
| 20 | Clip | 4158671 |
| 21 | Clamp | 8139339 |
| 22 | Screw | 8125023 |
| 23 | Clamp | 8856890 |
| 24 | Clamp | 8856908 |
| 25 | Electronic unit | 8856858 |
| 25 | Electronic unit | 7859705 |
| 25 | Electronic unit | 9119397 |
| 25 | Electronic unit | 7859721 |
| 25 | Electronic unit | 9119405 |
| 25 | Electronic unit | 4300109 |
| 25 | Electronic unit | 4300125 |
| 25 | Electronic unit | 7859747 |
| 25 | Electronic unit | 4300448 |
| 25 | Electronic unit | 9108531 |
| 25 | Electronic unit | 4300455 |
| 25 | Electronic unit | 9113879 |
| 25 | Electronic unit | 7859689 |
| 25 | Electronic unit | 8826539 (replaces 8788614) |
| 25 | Electronic unit | 9119363 |
| 25 | Electronic unit | 7859697 |
| 25 | Electronic unit | 9119371 |
| 25 | Electronic unit | 7859713 |
| 26 | Sensor | 7538697 |
| 27 | Screw | 7922446 |
| 28 | Plug | 8267296 |
| 29 | Cable harness | 9321787 |
