Saab 9000 1986-1989 Ignition distributor

Group 3a Electrical, general, section 340

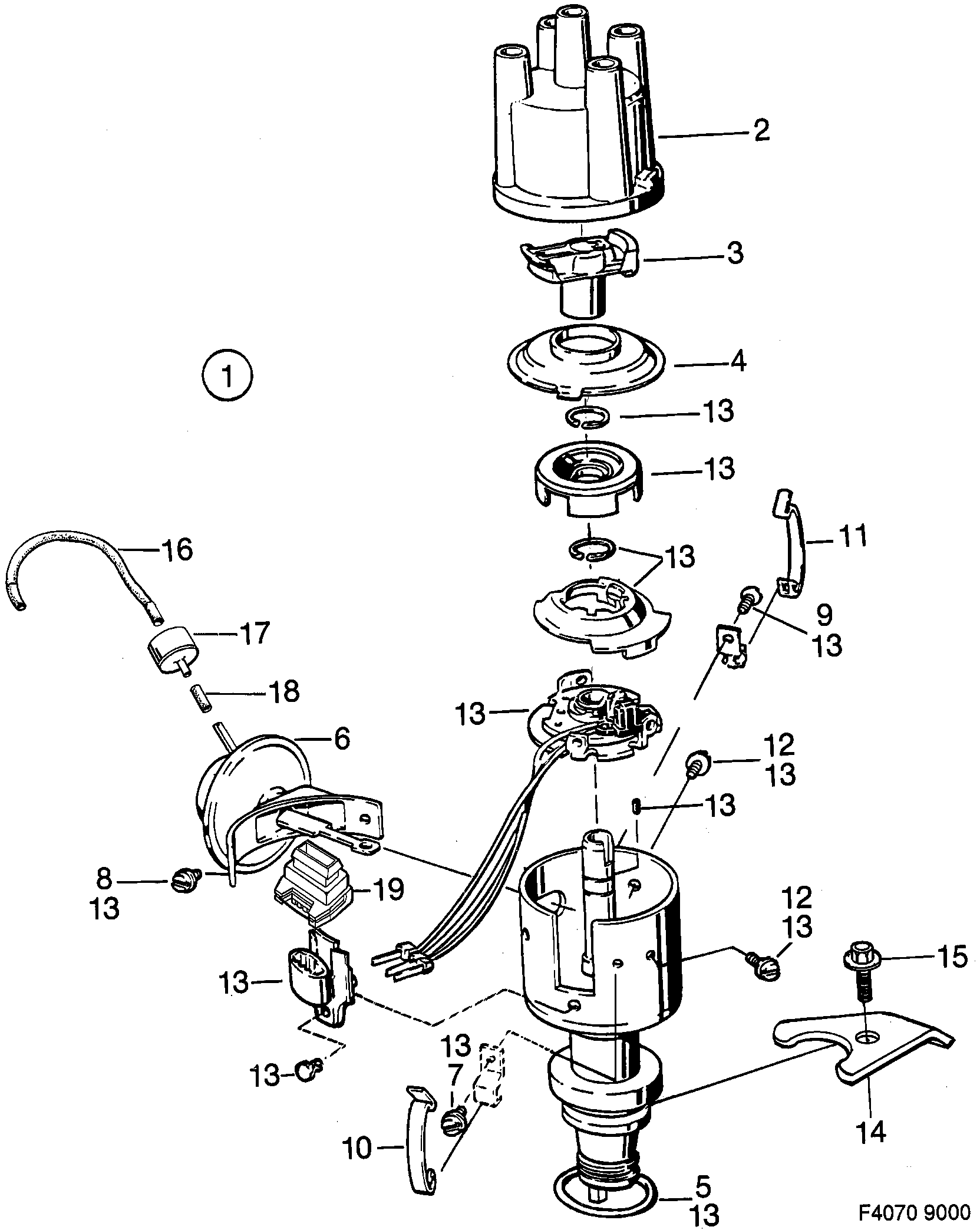

Saab 9000 Ignition distributor diagram
PosArticlePart No.
1Ignition distributor7561814
1Ignition distributor7481393 (replaces 7561806)
1Ignition distributor7481393
2Distributor cap7501216
3Rotor7564420
4Cover7519135
5O-ring9176470 (replaces 7519143)
6Regulator7564438
6Regulator7564446
7Screw7519119
8Screw7519127
8Screw30520525 (replaces 9119561)
9Screw7519101
10Spring7519085
11Spring9309956
13Repair kit7588312
14Bracket8362287
15Screw9166323 (replaces 8082950)
16Vaccum hose9136243
17Valve8323362
