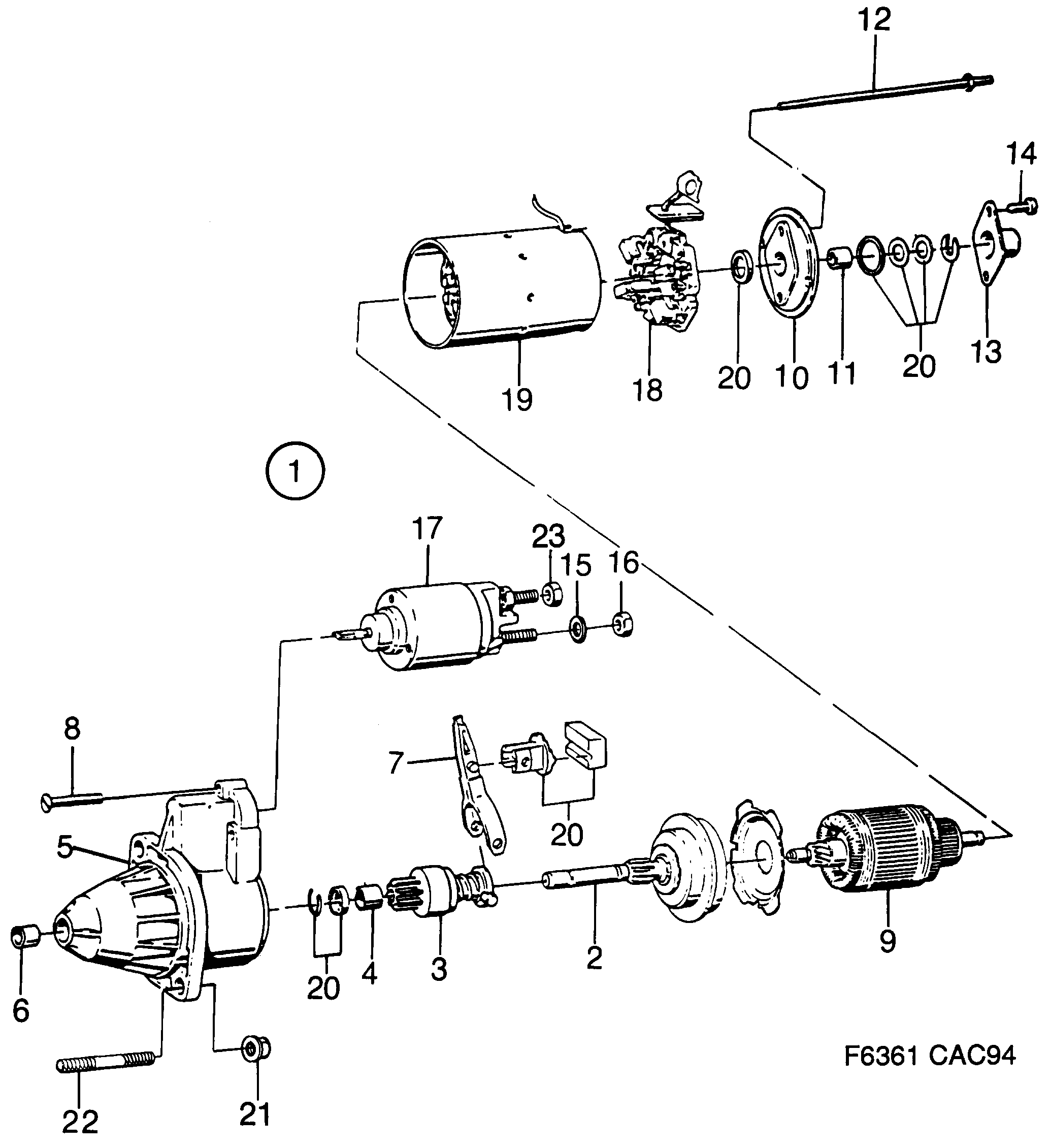

Group 3a Electrical, general, section 300
| Pos | Article | Part No. |
|---|---|---|
| 1 | Starter motor | 4235610 |
| 2 | Planetary gear | 7535255 |
| 3 | Drive gear | 4160099 |
| 4 | Bearing bushing | 7527732 |
| 5 | Gear house | 4443750 |
| 6 | Bearing bushing | 7527757 |
| 7 | Engagement lever | 7527765 |
| 8 | Screw | 7535271 |
| 9 | Rotor | 4443768 |
| 10 | Ball bearing | 7535297 |
| 11 | Bearing bushing | 7527807 |
| 12 | Screw | 7535305 |
| 13 | Cap | 7535313 |
| 14 | Screw | 7535321 |
| 15 | Washer | 7527849 |
| 16 | Nut | 7535339 |
| 17 | Actuator solenoid | 4443776 |
| 18 | Plate | 4443784 |
| 19 | Gauges | 7527872 |
| 20 | Kit | 7527880 |
| 21 | Nut | 7967979 |
| 22 | Stud | 92151911 (replaces 7971112) |
| 23 | Nut | 11900451 (replaces 7977929) |
