Saab 9000 1985-1989 Ignition coil, cables, spark plugs etc

Group 3a Electrical, general, section 280

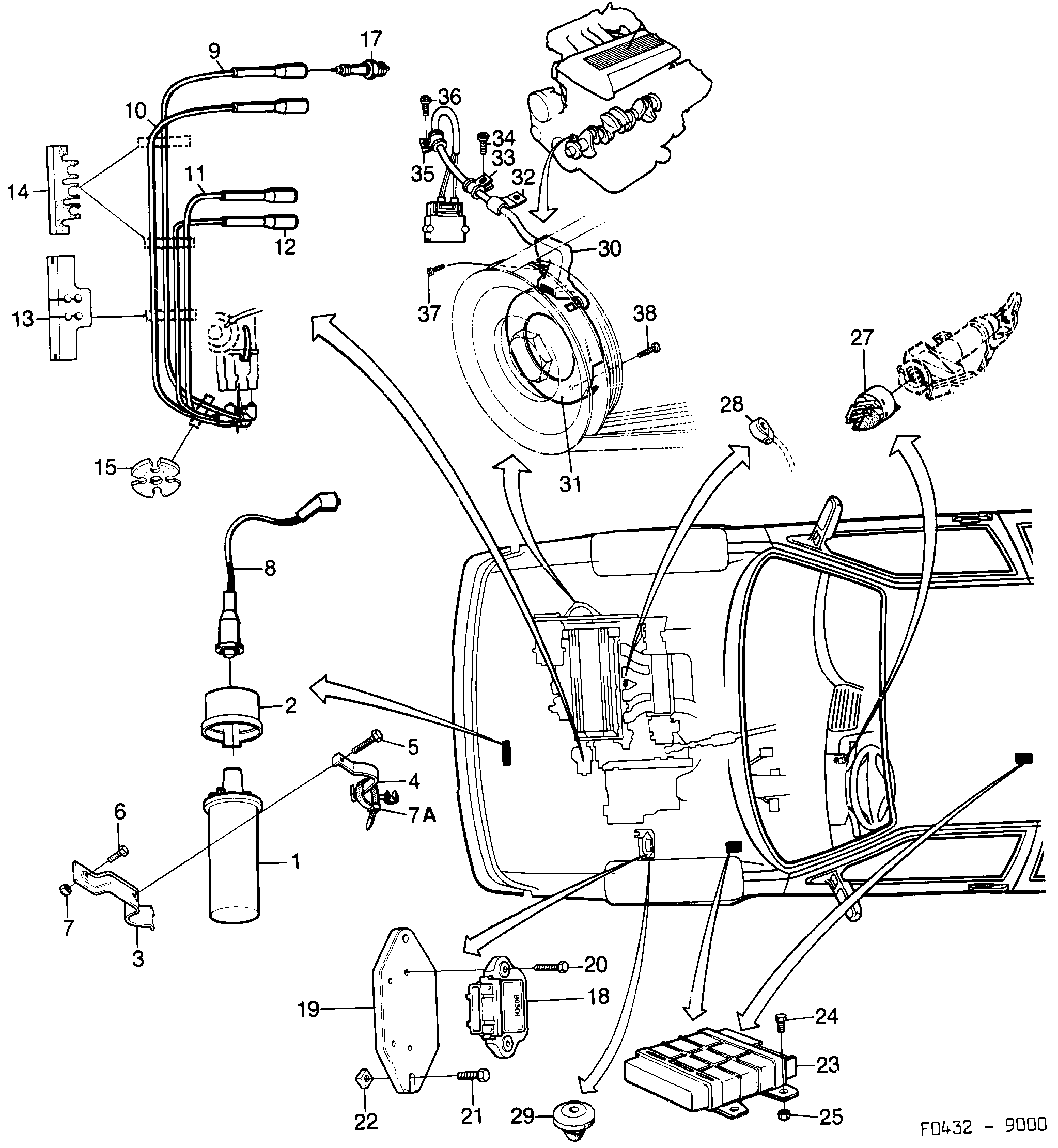

Saab 9000 Ignition coil, cables, spark plugs etc diagram

Pos	Article	Part No.
1	Ignition coil	32000256 (replaces 8573834)
2	Protecting casing	8566374
3	Bracket	9388398
4	Cap	9388554
5	Screw	7977457
6	Screw	8019747
7	Nut	92153043 (replaces 7975576)
7A	Clamp	7398456
8	Ignition lead	4374336 (replaces 9390840)
9	Ignition lead	7504483
10	Ignition lead	7504491
11	Ignition lead	7504509
12	Ignition lead	7504517
13	Retainer	7504525
13	Retainer	7523004
14	Retainer	7503832
14	Retainer	7522998
14	Retainer	7585540
15	Retainer	7506793
17	Spark plug	8819294
17	Spark plug	9116385
17	Spark plug	5962485 (replaces 8819302)
17	Spark plug	32000330
18	Electronic unit	8573826
18	Power unit	9390220
18	Power unit	7503600
19	Cooling body	8574816
20	Screw	7975519
21	Screw	7973191
22	Nut	7975279
23	Electronic unit	7503592
23	Electronic unit	7588544
23	Engine control module	7484504
23	Electronic unit	7563067
23	Engine control module	7484512
23	Electronic unit	7584592
23	Engine control module	7484520
24	Screw	7977960 (replaces 7922388)
24	Screw	7922826
24	Screw	7922347
25	Nut	7975261
29	Plug	8267296
30	Sensor	7482540
31	Aperture disc	7486814
32	Clamp	7487952
33	Clamp	8139362
34	Screw	8129868
35	Clamp	8139339
37	Screw	9127440
