Saab 9000 1990-1993 EZK

Group 3a Electrical, general, section 260

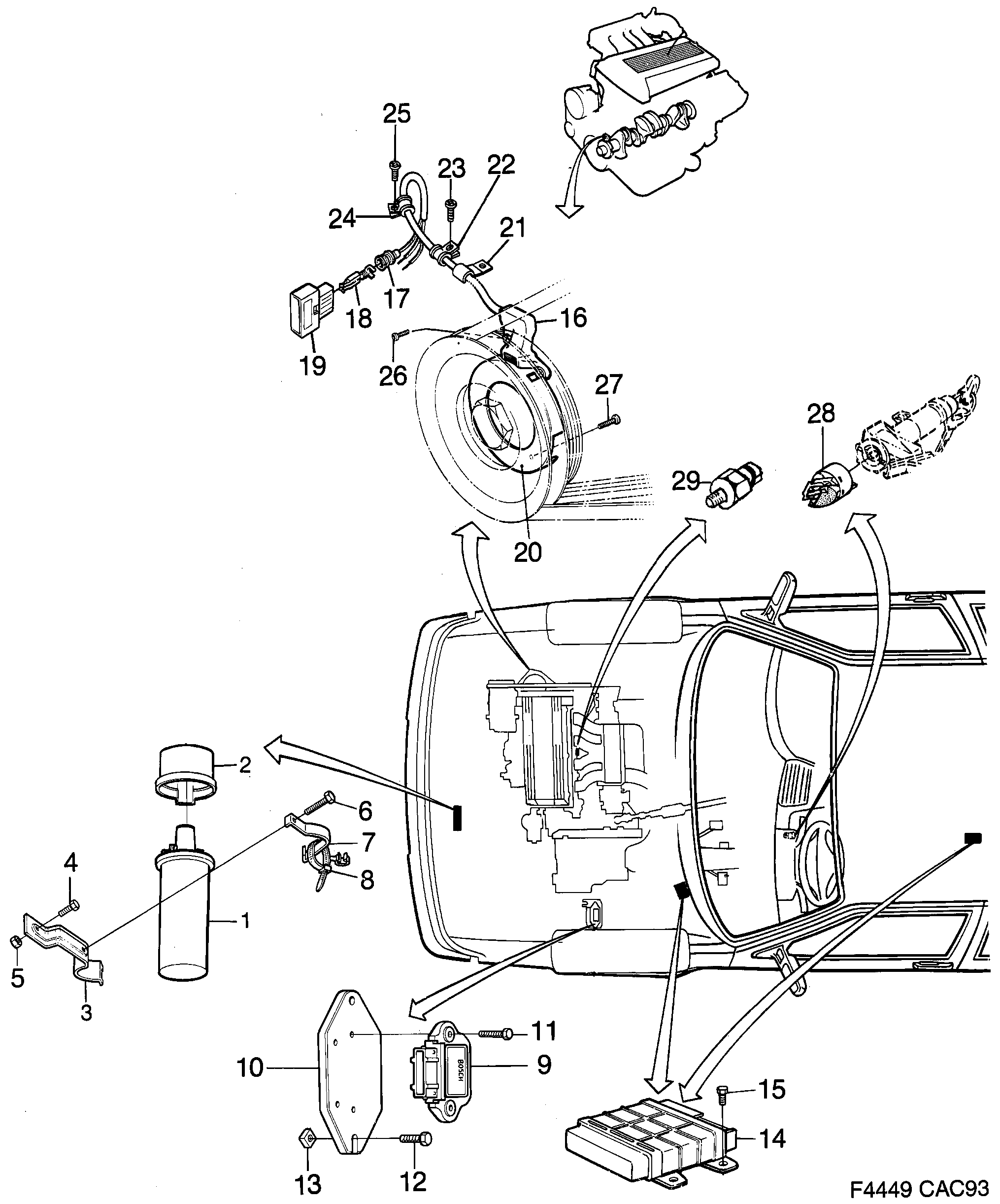

Saab 9000 EZK diagram

Pos	Article	Part No.
1	Ignition coil	32000256 (replaces 8573834)
2	Protecting casing	8566374
3	Bracket	9388398
4	Screw	8019747
4	Screw	8059420
5	Nut	92153043 (replaces 7975576)
6	Screw	7977457
7	Cap	9388554
8	Clamp	7398456
9	Power unit	7503600
9	Power unit	5960059
10	Cooling body	8574816
11	Screw	7975519
12	Screw	7973191
13	Nut	7975279
14	Engine control module	7484504
14	Engine control module	7484512
14	Electronic unit	7872286
14	Engine control module	7484520
14	Electronic unit	7872294
15	Screw	7922347
16	Sensor	7482540
16	Sensor	9133067
17	Seal	4061966
18	Cable terminal	4692331 (replaces 4061578)
19	Connector housing	12788993 (replaces 4113619)
19	Connector housing	12788993 (replaces 4113601)
20	Aperture disc	9117979
20	Aperture disc	9117201
21	Clamp	7487952
22	Clamp	8139362
22	Clamp	7969389
23	Screw	8129868
24	Clamp	8139339
26	Screw	9114455
26	Screw	9127440
27	Screw	7482490
