Saab 9000 1990-1993 Electrical system

Group 3a Electrical, general, section 2420

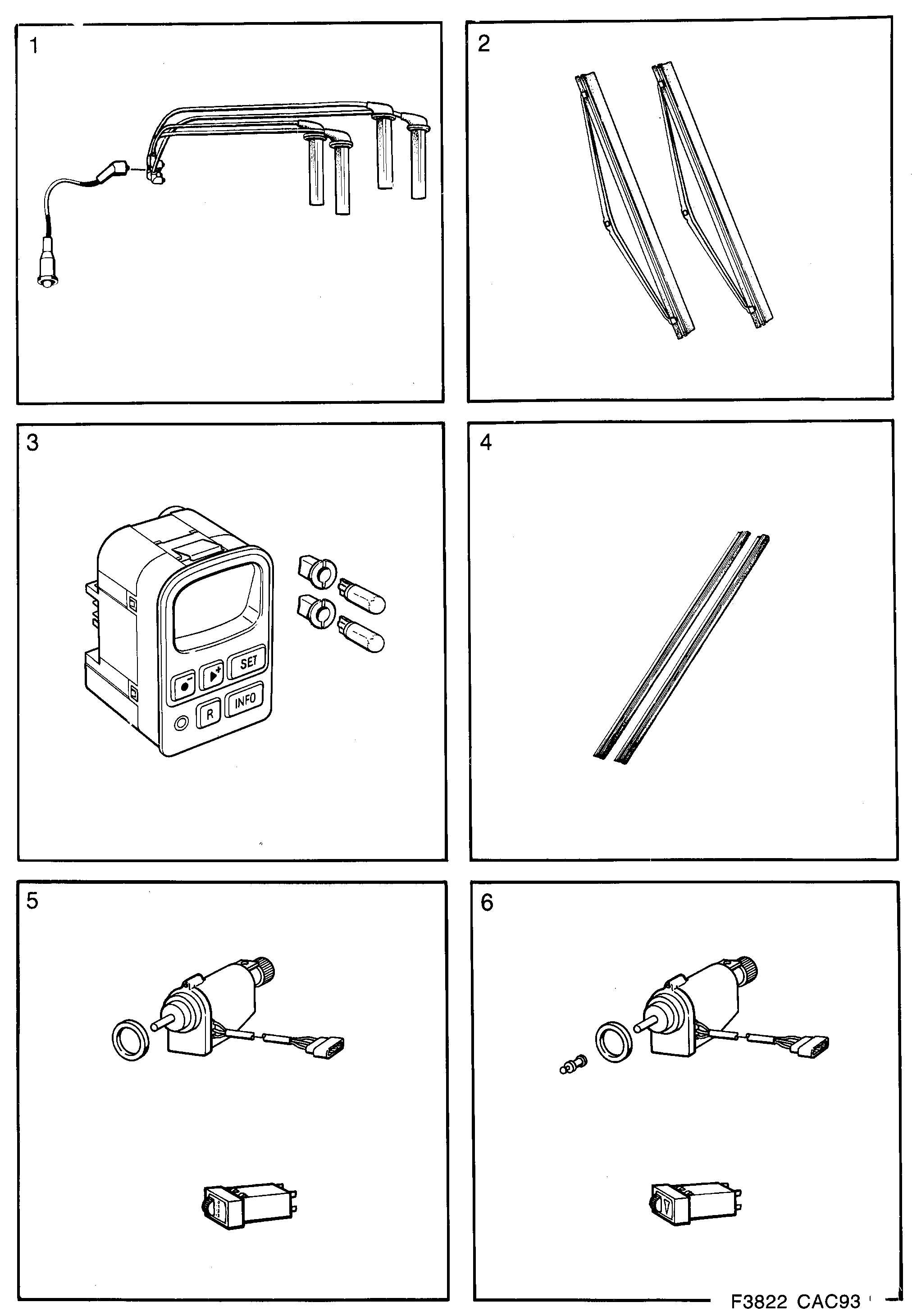

Saab 9000 Electrical system diagram

Pos	Article	Part No.
1	Kit ignition cables	8817520
	Ignition lead	4374336 (replaces 9390840)
	Ignition lead	7504483
	Ignition lead	7504491
	Ignition lead	7504509
	Ignition lead	7504517
2	Wiper blade kit	8548042 (replaces 8547077)
	Wiper blade	4095063 (replaces 9513268)
2	Wiper blade kit	8547408
	Wiper blade	30520558 (replaces 9120882)
2	Wiper blade kit	8548042
	Wiper blade	4095063
2	Wiper blade kit	8549172 (replaces 8548299)
	Wiper blade	9082587
2	Wiper blade kit	8549180 (replaces 8548281)
	Wiper blade	9088238
3	Driving computer	4110607
	Bulb	4084547
	Bulb socket	4085775
4	Profiled rubber kit	8547564
	Profile	9526310
4	Profiled rubber kit	4448064
5	Lamp adjustment kit	8547838
	Switch	9527904
	Electrical motor	9529785
	Connector housing	9503327
	Sealing ring	9529793
6	Lamp adjustment kit	8547846
	Electrical motor	9566662
	Adapter	9569963
