Saab 9000 1992-1993 Instrument

Group 3a Electrical, general, section 2390

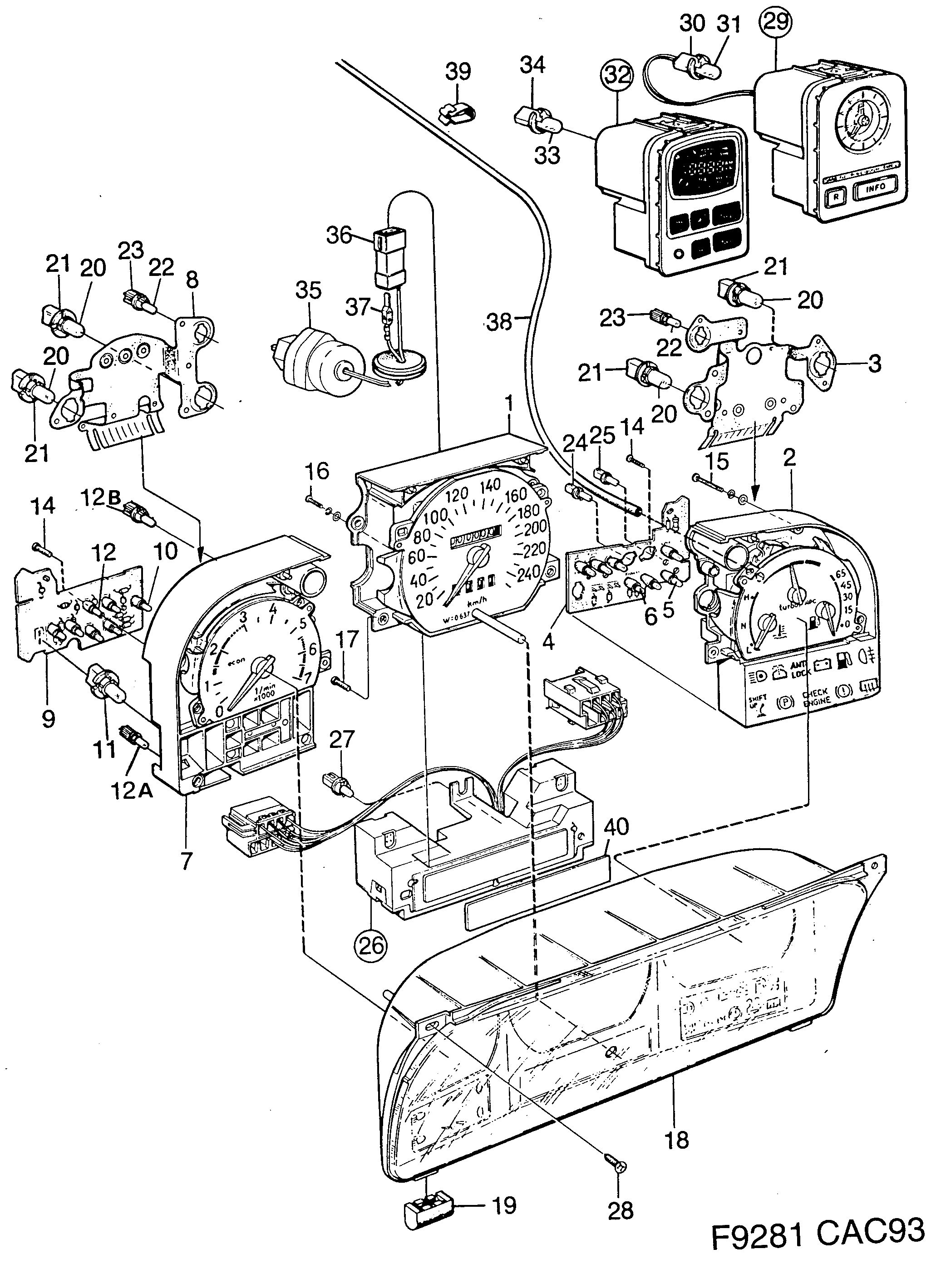

Saab 9000 Instrument diagram

Pos	Article	Part No.
1	Speedometer	4084075
1	Speedometer	4084125
1	Speedometer	4084133
1	Speedometer	4084109
1	Speedometer	4084158
1	Speedometer	4084091
1	Speedometer	4084141
2	Combination instrument	4174371
2	Combination instrument	4174405
2	Combination instrument	4174389
2	Combination instrument	4174397
2	Combination instrument	4084828
2	Combination instrument	4110672
2	Combination instrument	4084224
2	Combination instrument	4084232
2	Combination instrument	4110680
2	Combination instrument	4062238
2	Combination instrument	4062220
3	Foil	9505629
3	Foil	4084240
3	Foil	4084844
4	Circuit board	9565326
4	Circuit board	9525700
5	Bulb	9509175
6	Bulb	9514894
7	Tachometer	4084067
7	Tachometer	4084380
8	Foil	9525742
9	Circuit board	4084166
11	Bulb	9513888
12A	Bulb	9525767
14	Screw	9506619
15	Screw	9505553
16	Screw	9505561
17	Screw	9508862
18	Gauges	4068078
19	Support	9505298
20	Bulb	93190472 (replaces 9505116)
21	Bulb socket	9505520
22	Bulb	5375266 (replaces 9505538)
23	Bulb socket	5375266 (replaces 9505546)
24	Bulb	8568693
25	Bulb	8566853
26	Display	4083176
26	Display	4437208
26	Display	4437216 (replaces 4083184)
26	Display	4437216
28	Screw	92150118 (replaces 7970536)
29	Claw, left	9513334
29	Claw, left	9501321
32	Driving computer	4110607
33	Bulb	4084547
34	Bulb socket	4085775
35	Sensor	4083804
36	Connector housing	4113262
36A	Seal	4113353
37	Cable terminal	12789934 (replaces 4115192)
38	Vaccum hose	9136243
39	Clamp	7108491
40	Cover washer	4084752
