Saab 9000 1994-1998 Electrical system

Group 3a Electrical, general, section 2370

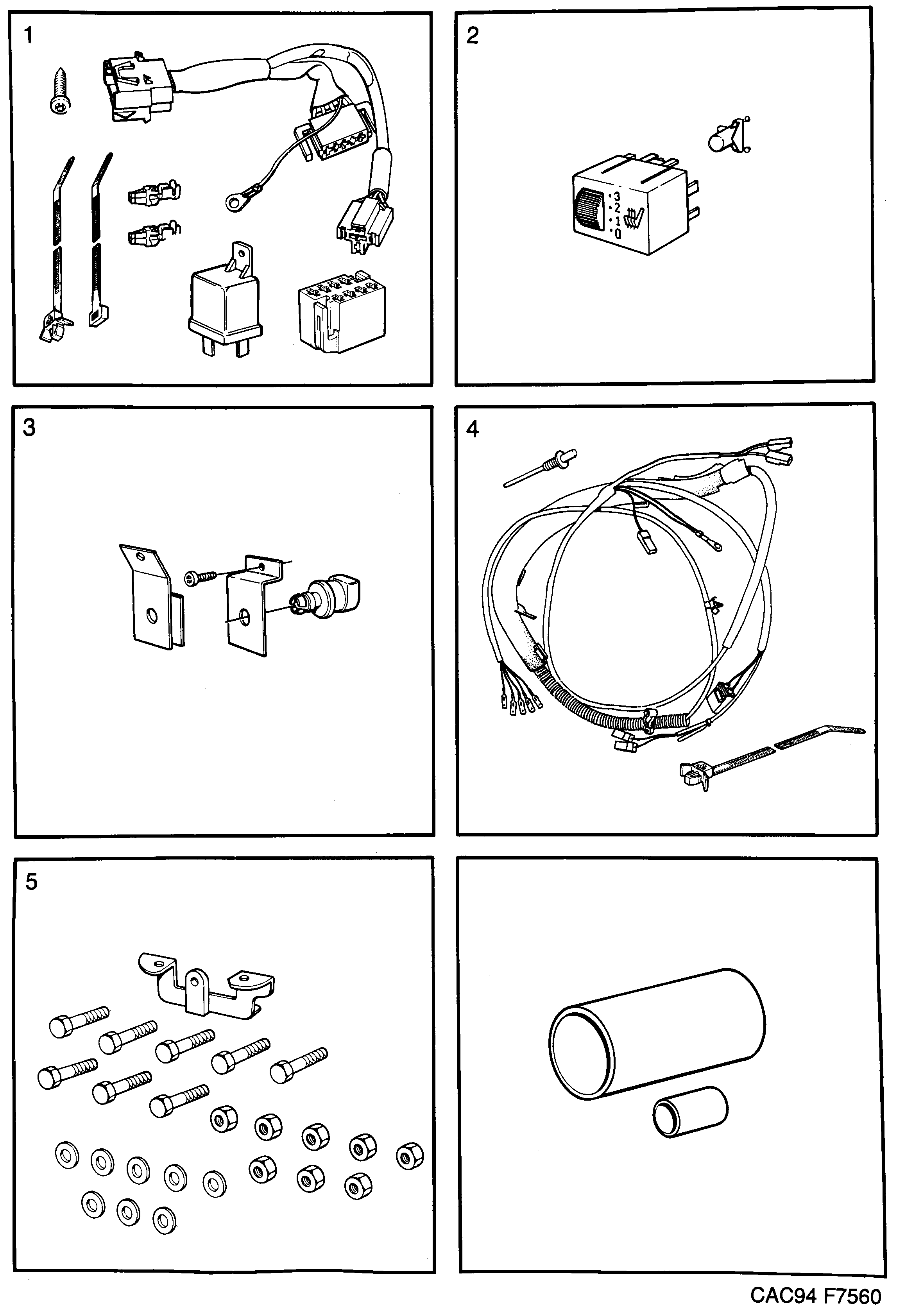

Saab 9000 Electrical system diagram

Pos	Article	Part No.
1	Starter inhibitor kit	8548075
	Screw	92153219 (replaces 7970601)
	Tie strap	7971864
	Connector housing	8533697
	Cable harness	8548059
	Relay	9563099
2	Switch button	4084554
	Cover	8549263
	Button	8549271
	Bulb	8549289
3	Temperature sensor kit	8548471
	Screw	7922271
	Sensor	9123456
	Bracket	9514183
	Bracket	9569781
4	Conversion kit	8548554
	Cable cover	4353538
	Hose	4354817
	Screw	8410961
	Tie strap	8552663
5	Mounting kit	4521035
6	Shrink hose	4668737
