Saab 9000 1990-1993 Starter motor

Group 3a Electrical, general, section 230

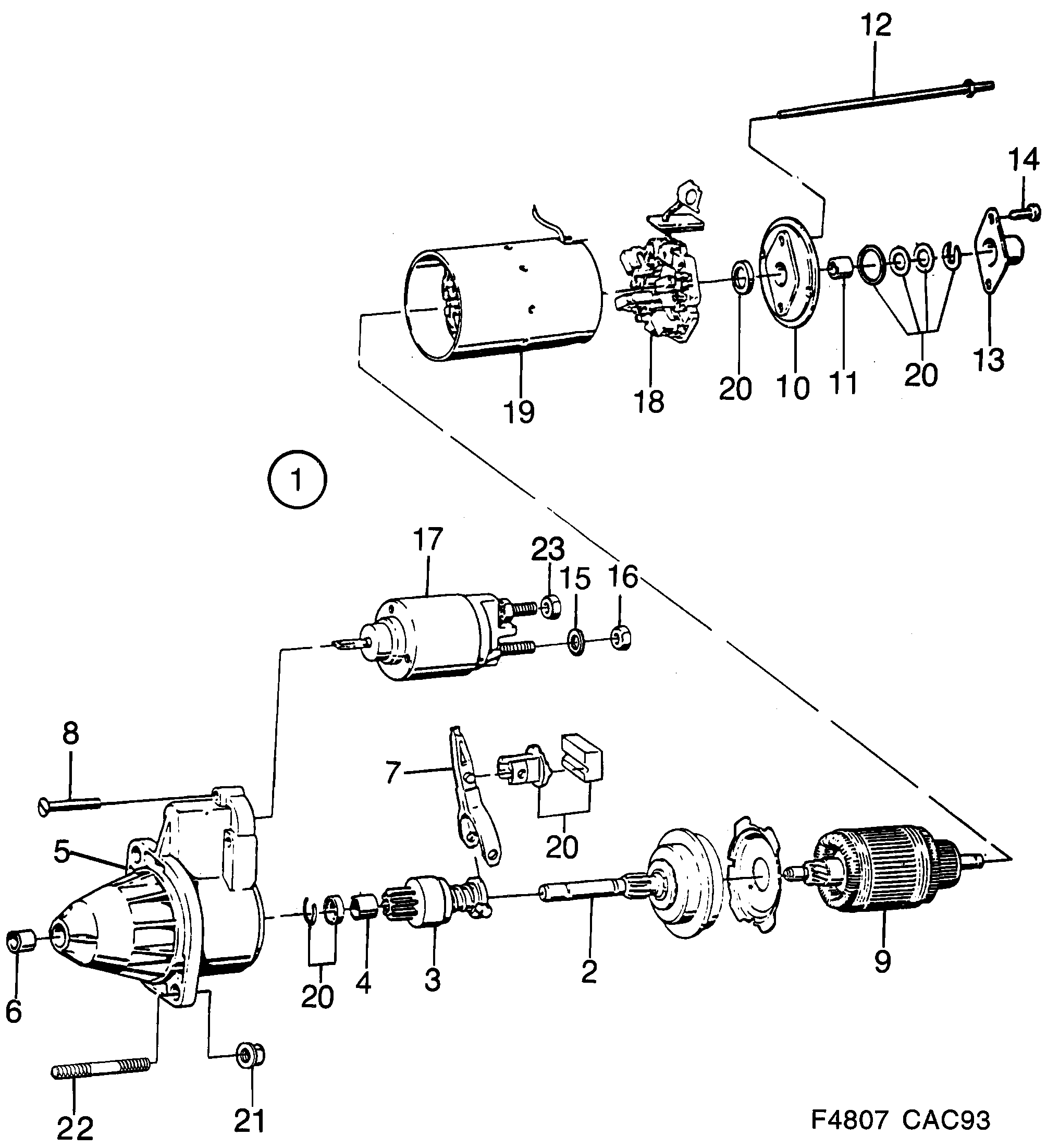

Saab 9000 Starter motor diagram

Pos	Article	Part No.
1	Starter motor	8977498
2	Planetary gear	7535255
3	Drive gear	4160099
4	Bearing bushing	7527732
5	Gear house	4160115
6	Bearing bushing	7527757
7	Engagement lever	7527765
8	Screw	7535271
9	Rotor	4160123
10	Ball bearing	7535297
11	Bearing bushing	7527807
12	Screw	7535305
13	Cap	7535313
14	Screw	7535321
15	Washer	7527849
16	Nut	7535339
17	Actuator solenoid	7527856
18	Plate	4443784 (replaces 7527864)
19	Gauges	7527872
20	Kit	7527880
21	Nut	7967979
22	Stud	92151911 (replaces 7971112)
23	Nut	11900451 (replaces 7977929)
