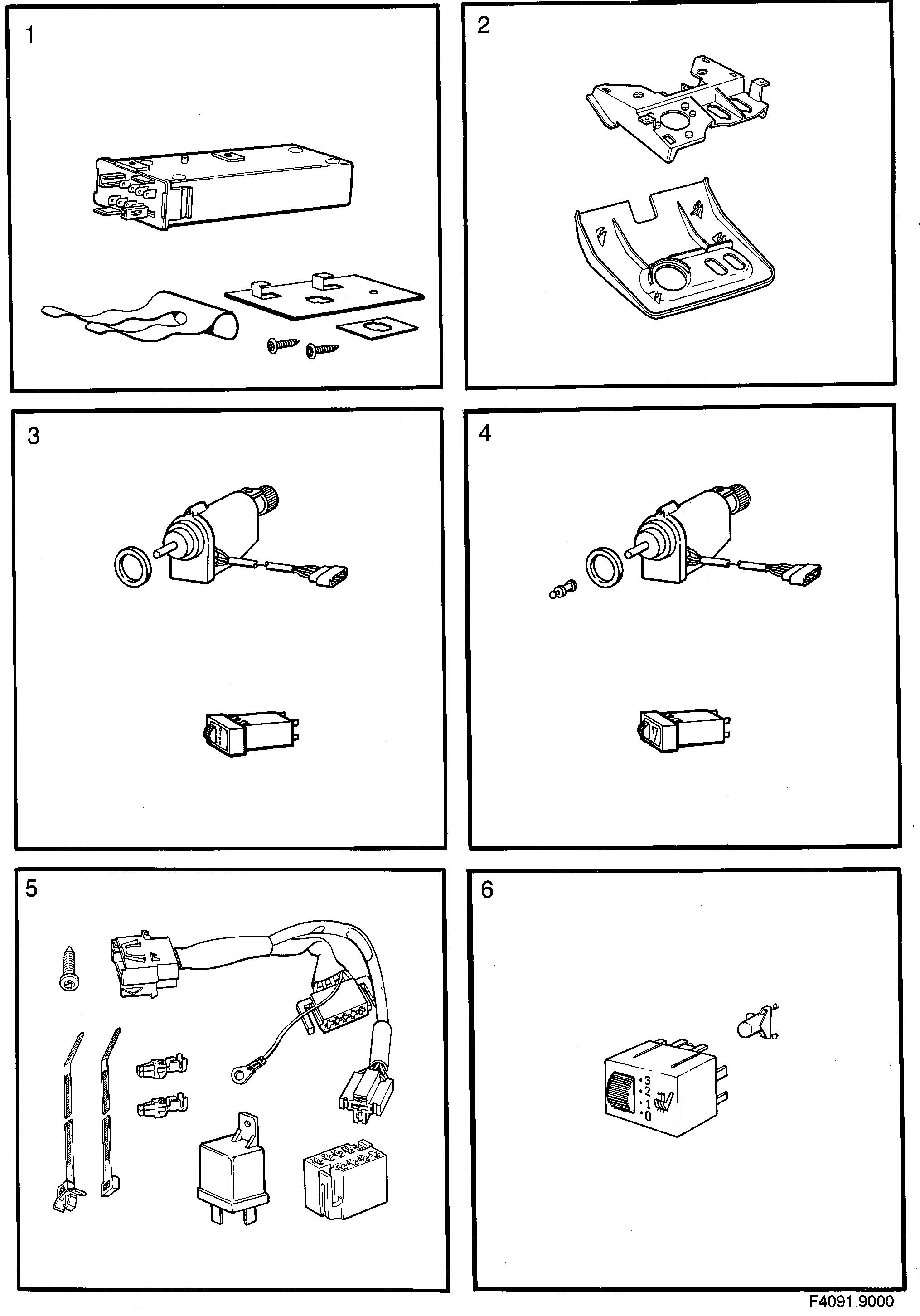

Group 3a Electrical, general, section 2290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electronic unit | 8547622 |
| Electronic unit | 9529975 | |
| Screw | 7922347 | |
| Clip | 8565855 | |
| Bracket | 9120114 | |
| Spacer washer | 9564345 | |
| 2 | Kit | 4037701 (replaces 9698036) |
| Base plate | 9575903 | |
| Cover | 9660176 | |
| 3 | Lamp adjustment kit | 8547838 |
| Switch | 9527904 | |
| Electrical motor | 9529785 | |
| Connector housing | 9503327 | |
| Sealing ring | 9529793 | |
| 4 | Lamp adjustment kit | 8547846 |
| Electrical motor | 9566662 | |
| Adapter | 9569963 | |
| 5 | Starter inhibitor kit | 8548075 |
| Screw | 92153219 (replaces 7970601) | |
| Tie strap | 7971864 | |
| Connector housing | 8533697 | |
| Cable harness | 8548059 | |
| Relay | 9563099 | |
| 6 | Switch button | 4084554 |
| Cover | 8549263 | |
| Button | 8549271 | |
| Bulb | 8549289 |
