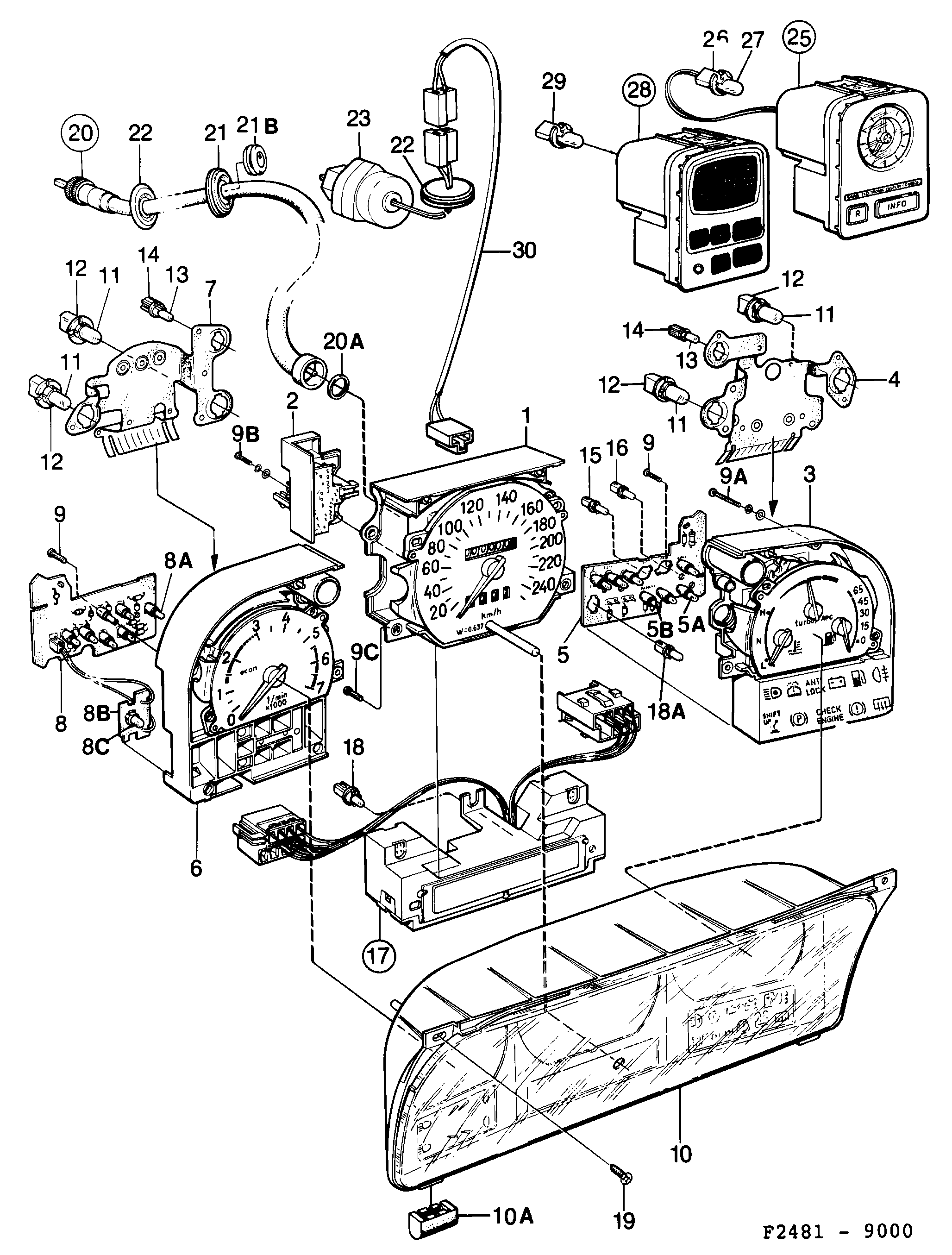

Group 3a Electrical, general, section 2230
| Pos | Article | Part No. |
|---|---|---|
| 1 | Speedometer | 9504689 |
| 1 | Speedometer | 9521089 |
| 1 | Speedometer | 9504705 |
| 1 | Speedometer | 9516089 |
| 1 | Speedometer | 9521097 |
| 1 | Speedometer | 9504721 |
| 1 | Speedometer | 9121732 |
| 1 | Speedometer | 9513896 |
| 1 | Speedometer | 9121955 |
| 1 | Speedometer | 9121963 |
| 1 | Speedometer | 9121989 |
| 1 | Speedometer | 9121971 |
| 2 | Pulse sensor | 9505082 |
| 3 | Combination instrument | 9504739 |
| 3 | Combination instrument | 9513904 |
| 3 | Combination instrument | 9520685 |
| 3 | Combination instrument | 9525544 |
| 3 | Combination instrument | 9565169 |
| 3 | Combination instrument | 9521147 |
| 3 | Combination instrument | 9513979 |
| 3 | Combination instrument | 9520917 |
| 3 | Combination instrument | 9525858 |
| 3 | Combination instrument | 9565193 |
| 3 | Combination instrument | 9513862 |
| 3 | Combination instrument | 9520891 |
| 3 | Combination instrument | 9525569 |
| 3 | Combination instrument | 9565177 |
| 3 | Combination instrument | 9525445 |
| 3 | Combination instrument | 9516154 |
| 3 | Combination instrument | 9520768 |
| 3 | Combination instrument | 9525841 |
| 3 | Combination instrument | 9565185 |
| 3 | Combination instrument | 9515198 |
| 3 | Combination instrument | 9520693 |
| 3 | Combination instrument | 9525585 |
| 3 | Combination instrument | 9565284 |
| 3 | Combination instrument | 9521139 |
| 3 | Combination instrument | 9520792 |
| 3 | Combination instrument | 9515214 |
| 3 | Combination instrument | 9520909 |
| 3 | Combination instrument | 9525833 |
| 3 | Combination instrument | 9565318 |
| 3 | Combination instrument | 9515206 |
| 3 | Combination instrument | 9520883 |
| 3 | Combination instrument | 9525452 |
| 3 | Combination instrument | 9525999 |
| 3 | Combination instrument | 9565292 |
| 3 | Combination instrument | 9516162 |
| 3 | Combination instrument | 9520776 |
| 3 | Combination instrument | 9525643 |
| 3 | Combination instrument | 9565300 |
| 3 | Combination instrument | 9520784 |
| 4 | Foil | 9505629 |
| 5 | Circuit board | 9505637 |
| 5 | Circuit board | 9513912 |
| 5 | Circuit board | 9525700 |
| 5 | Circuit board | 9565326 |
| 5A | Bulb | 9509175 |
| 5B | Bulb | 9514894 |
| 6 | Tachometer | 9504671 |
| 6 | Tachometer | 9514845 |
| 6 | Tachometer | 9525536 |
| 6 | Tachometer | 9565409 |
| 6 | Tachometer | 9567801 |
| 6 | Tachometer | 9567850 |
| 7 | Foil | 9505587 |
| 7 | Foil | 9525742 |
| 8 | Circuit board | 9509449 |
| 8 | Circuit board | 9529983 |
| 8 | Circuit board | 9565391 |
| 8B | Circuit board | 9509456 |
| 8C | Bulb | 9513888 |
| 9 | Screw | 9506619 |
| 9A | Screw | 9505553 |
| 9B | Screw | 9505561 |
| 9C | Screw | 9508862 |
| 10 | Gauges | 9505074 |
| 10A | Support | 9505298 |
| 11 | Bulb | 93190472 (replaces 9505116) |
| 12 | Bulb socket | 9505520 |
| 13 | Bulb | 5375266 (replaces 9505538) |
| 14 | Bulb socket | 5375266 (replaces 9505546) |
| 15 | Bulb | 8568693 |
| 16 | Bulb | 8566853 |
| 17 | Display | 9503533 |
| 17 | Display | 9519000 |
| 17 | Display | 9522640 |
| 17 | Display | 9527490 |
| 17 | Display | 9527730 |
| 18A | Bracket | 9506122 |
| 19 | Screw | 7922271 |
| 20 | Speed wire | 9518150 |
| 20A | Spacer washer | 7575848 |
| 21 | Grommet | 9508920 |
| 21B | Spacer | 9473943 |
| 22 | Grommet | 9512013 |
| 23 | Sensor | 9123324 |
| 25 | Claw, left | 9513334 |
| 28 | Driving computer | 9124579 |
| 29 | Bulb | 9509993 |
| 30 | Cable harness | 9524646 |
