Saab 9000 1990-1993 Holders and brackets

Group 3a Electrical, general, section 2210

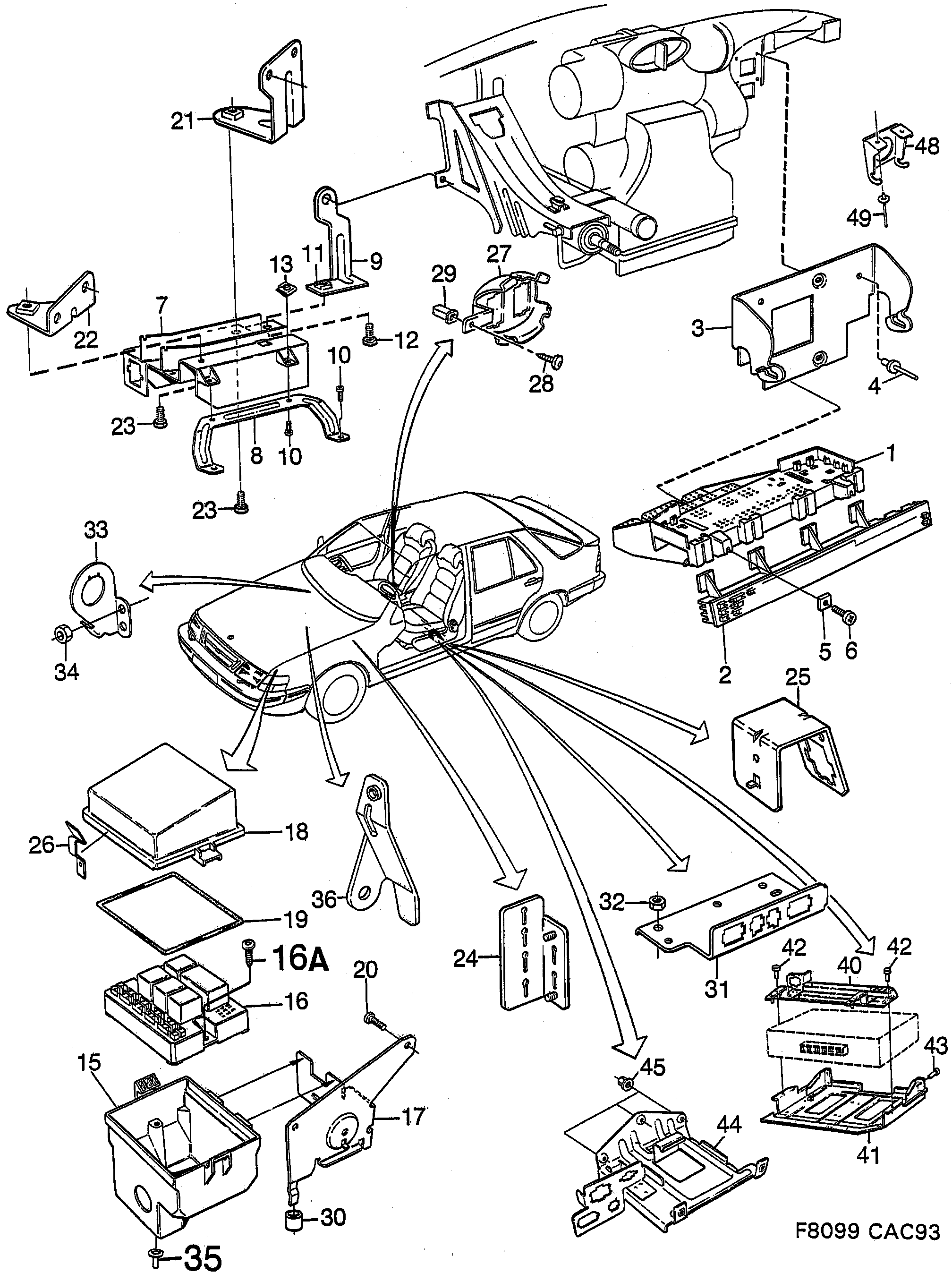

Saab 9000 Holders and brackets diagram

Pos	Article	Part No.
1	Retainer	9122730
1	Retainer	4174967
2	Retainer	9122748
2	Retainer	9122755
3	Bracket	9505959
3	Bracket	9508441
4	Rivet	7961642
5	Clip nut	7968555
6	Screw	7922297
7	Bracket	4068821
7	Bracket	4109856
7	Bracket	9526799
7	Bracket	4110557
8	Bracket	9526328
9	Bracket	9526336
9	Bracket	4109823
9	Bracket	9527631
9	Bracket	4110532
10	Screw	92153219 (replaces 7922354)
11	Clip nut	7967995
12	Screw	8059578
12	Screw	11900378 (replaces 7978372)
15	Box	9125386
15	Box	4117339
16	Bracket	9123407
16	Bracket	4111480
16A	Screw	7977861
17	Bracket	4060158
18	Cover	4069597
18	Cover	4179784
19	Seal	9527789
20	Screw	7922362
21	Bracket	9525460
21	Bracket	4109781
22	Bracket	9525486
22	Bracket	4109807
23	Screw	7922420
24	Bracket	9525908
25	Bracket	9567702
26	Lock brace	9123316
27	Bracket	9125006
27	Bracket	4175360
29	Press nut	7977358
30	Protection	4061388
31	Bracket	4068920
32	Nut	8029548
33	Bracket	4060851
33	Bracket	4176137
34	Screw	7982366 (replaces 7975170)
35	Draining plug	7116452
36	Brace	4174090
36	Brace	4432589
37	Bracket	4174835
40	Bracket	4022471
41	Plate	4021523
42	Screw	7922347
43	Nut	92153043 (replaces 7975576)
44	Bracket	4160610
45	Plastic nut	92152035 (replaces 4087128)
