Saab 9000 1985-1985 Starter motor

Group 3a Electrical, general, section 220

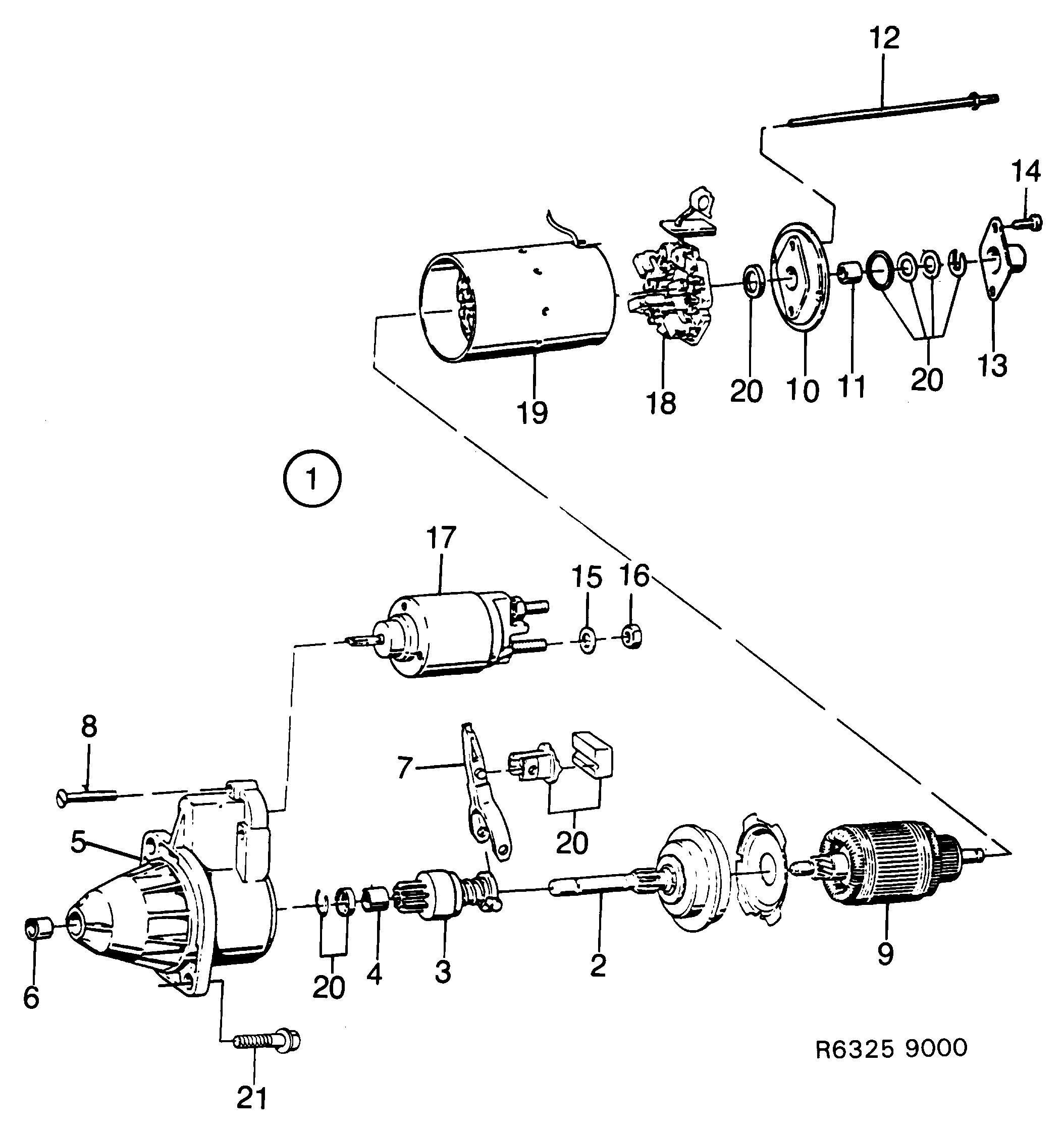

Saab 9000 Starter motor diagram

Pos	Article	Part No.
1	Starter motor	9376799
2	Planetary gear	7527716
3	Drive gear	7527724
4	Bearing bushing	7527732
5	Gauges	7527740
6	Bearing bushing	7527757
7	Engagement lever	7527765
8	Screw	7527773
9	Rotor	7527781
10	Ball bearing	7527799
11	Bearing bushing	7527807
12	Screw	7527815
13	Cap	7527823
14	Screw	7527831
15	Washer	7527849
16	Nut	7814619
17	Actuator solenoid	7527856
18	Plate	4443784 (replaces 7527864)
19	Gauges	7527872
20	Kit	7527880
21	Screw	7976939
