Saab 9000 1990-1993 Mounting details Body

Group 3a Electrical, general, section 2150

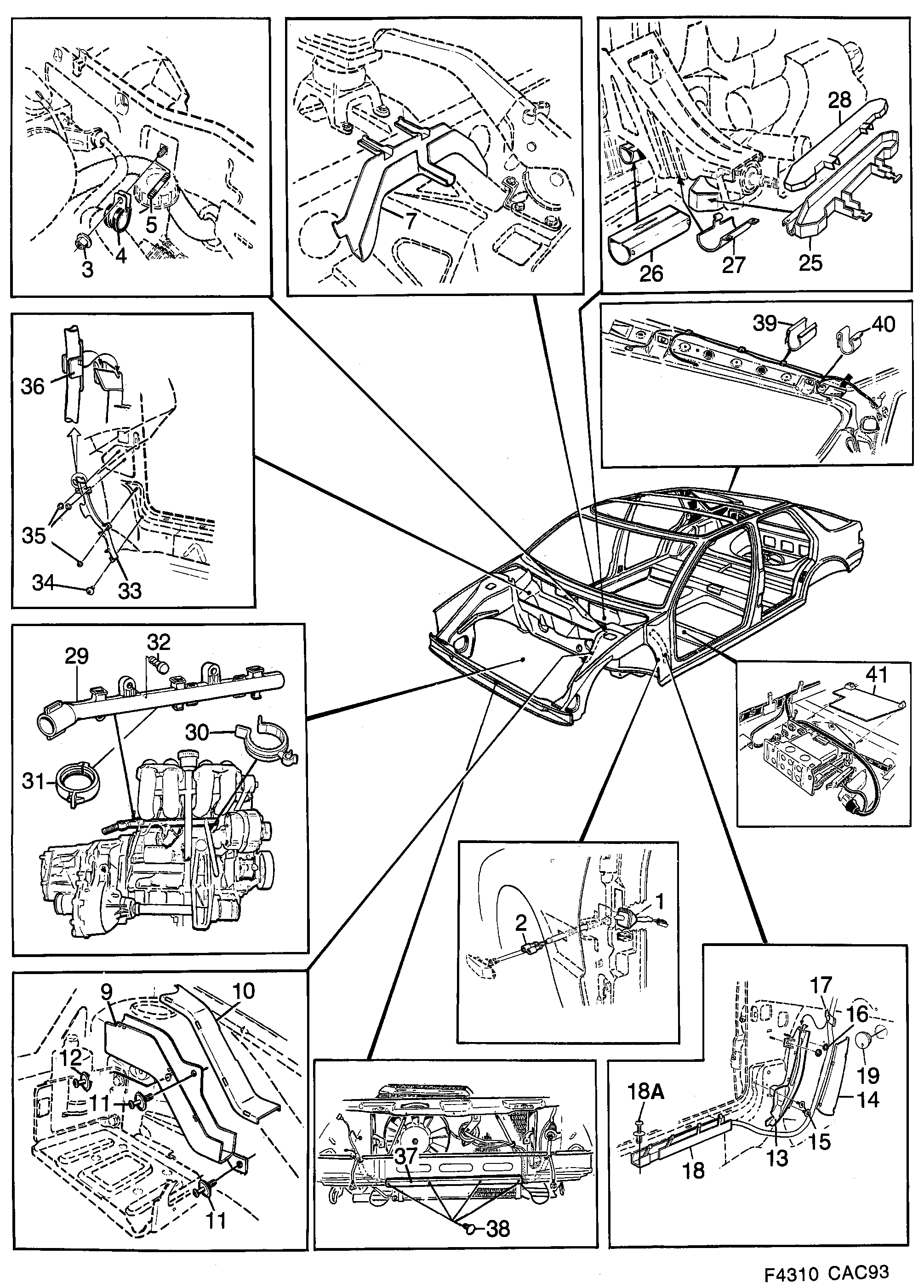

Saab 9000 Mounting details Body diagram

Pos	Article	Part No.
1	Grommet	9566928
2	Grommet	4069811
3	Nut	4062329
3	Nut	11900451 (replaces 7977929)
4	Clamp	4940995 (replaces 7969462)
5	Stud	9446881
7	Duct	4062337
9	Cable protection	4061990
9	Cable protection	4174116
10	Cover	4062303
10	Cover	4174124
11	Rivet	4063897
12	Rivet	7399694
13	Roof gutter	4060844
14	Cover	4062311
15	Rivet	9565417
17	Clip	4062295
18	Cable protection	9523218
19	Bushing	4062352
19	Bushing	4353777 (replaces 4175402)
19	Bushing	4062360
19	Bushing	4175394
19	Bushing	4353769
25	Cable protection	9524638
25	Cable channel	4069258
26	Duct	9526013
26	Clamp	9518119
27	Clamp	9526088
27	Clamp	4111217
28	Cover	4774410 (replaces 4063756)
29	Cable protection	9568106
29	Protection	4113551
30	Clamp	7539984
31	Clamp	4174058
32	Screw	8125064
33	Roof gutter	4061685
36	Clip	4067716
37	Duct	4173696
39	Clamp	7108491
40	Clamp	12755295 (replaces 9383043)
41	Plastic cover	4352993
