Saab 9000 1994-1998 Holders and brackets

Group 3a Electrical, general, section 2130

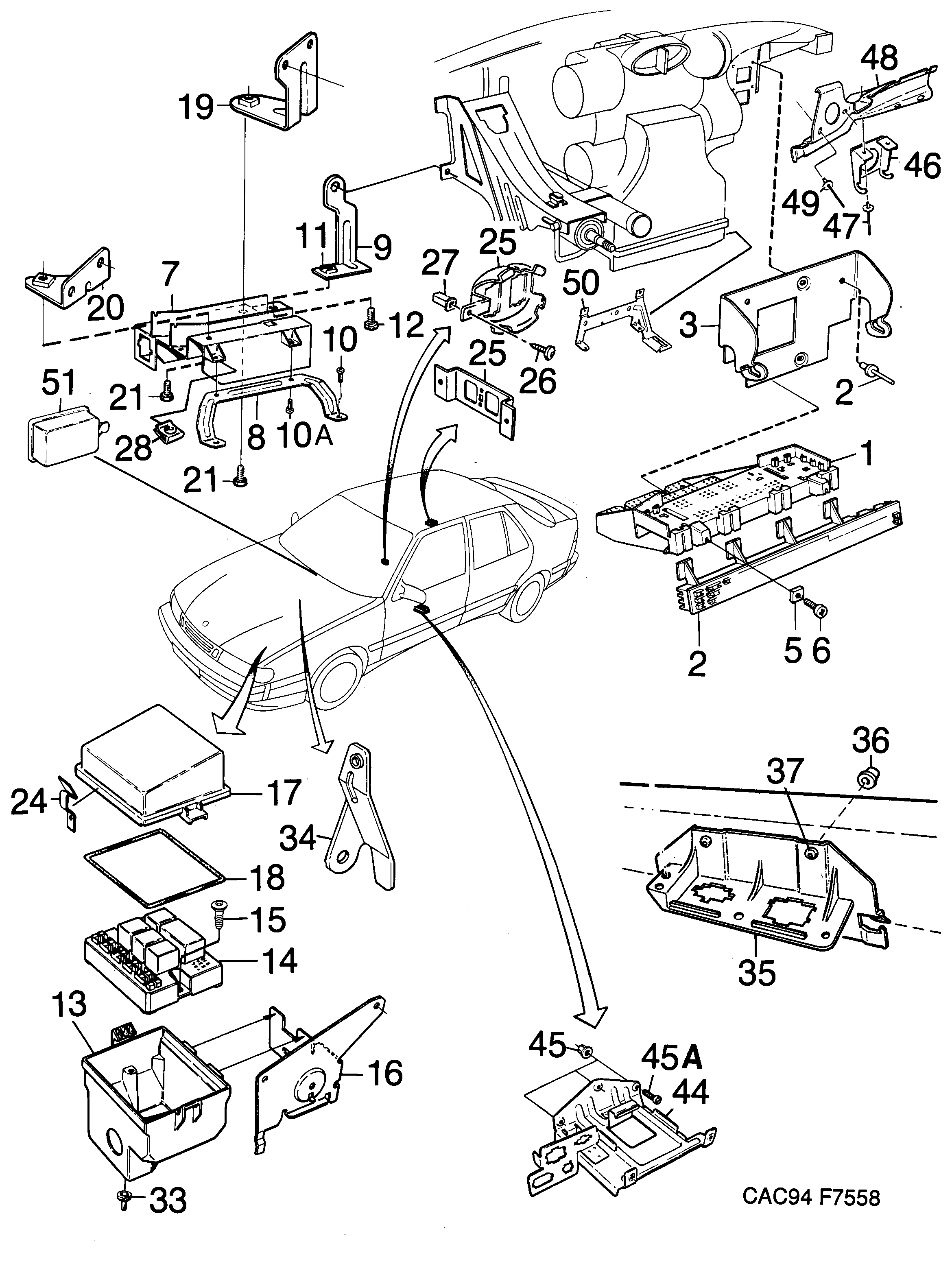

Saab 9000 Holders and brackets diagram

Pos	Article	Part No.
1	Retainer	4174967
2	Retainer	9122748
2	Retainer	9122755
3	Bracket	9505959
3	Bracket	9508441
4	Rivet	7961642
5	Clip nut	7968555
6	Screw	7922297
7	Bracket	4109856
7	Bracket	4661492
7	Bracket	4110557
8	Bracket	9526328
9	Bracket	4109823
9	Bracket	4110532
10	Screw	92153219 (replaces 7922354)
10A	Screw	92150102 (replaces 7972946)
11	Clip nut	7967995
12	Screw	8059578
12	Screw	11900378 (replaces 7978372)
13	Box	4117339
13	Box	4433967
14	Bracket	4111480
14	Bracket	4735890 (replaces 4434023)
15	Screw	7977861
17	Cover	4432605
17	Cover	4535464
17	Cover	4666665
17	Cover	4927943
18	Seal	9527789
19	Bracket	4109781
20	Bracket	4109807
21	Screw	7922420
24	Lock brace	9123316
25	Bracket	4175360
27	Press nut	7977358
28	Clip	9461070
33	Draining plug	7116452
34	Brace	4432589
35	Bracket	4174835
44	Bracket	4160610
44	Bracket	4392494
45	Plastic nut	92152035 (replaces 4087128)
45A	Screw	11900353 (replaces 7978091)
46	Bracket	4432761
47	Rivet	9849514
48	Bracket	4432753
48	Bracket	4432779
50	Bracket	4427928
50	Bracket	4427993
51	Cover	4516548
