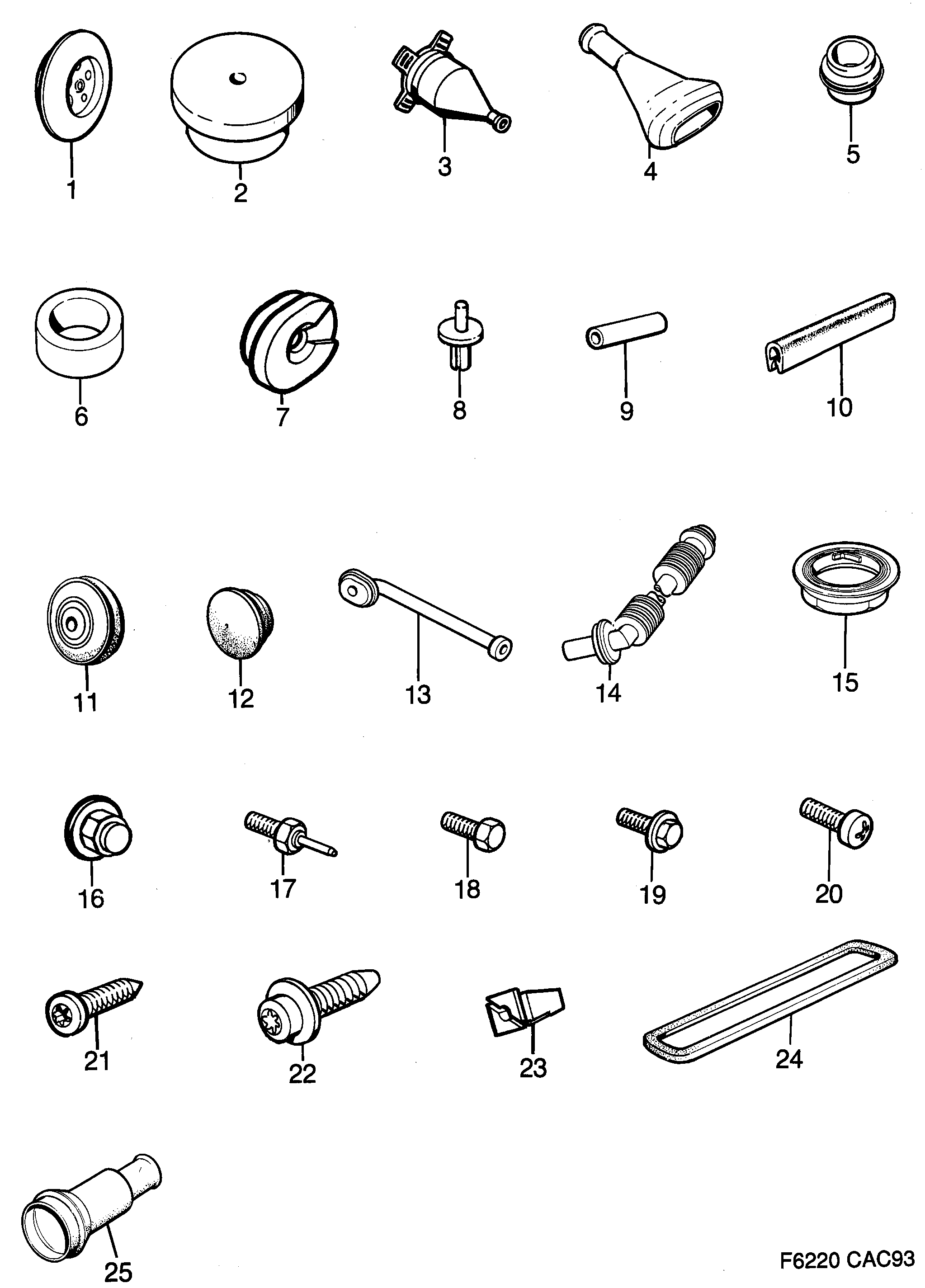

Group 3a Electrical, general, section 2120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Grommet | 9507666 |
| 2 | Bushing | 9523622 |
| 2 | Bushing | 9523465 |
| 3 | Cable protection | 8552721 |
| 4 | Protection | 8579955 |
| 5 | Grommet | 9502840 |
| 6 | Seal | 9519570 |
| 7 | Bushing | 9508482 |
| 8 | Rivet | 7399256 (replaces 9517889) |
| 9 | Protection | 9529660 |
| 10 | Protecting moulding | 7591035 |
| 10 | Protecting moulding | 9519737 |
| 10 | Protecting moulding | 8564973 (replaces 8497471) |
| 11 | Protecting bushing | 7326093 |
| 12 | Plug | 4333563 (replaces 9267881) |
| 12 | Plug | 6942775 |
| 13 | Grommet | 9503491 |
| 14 | Bellows | 9507690 |
| 15 | Nut | 9529520 |
| 16 | Nut | 92153043 (replaces 7975576) |
| 17 | Screw | 7399348 (replaces 7974090) |
| 18 | Screw | 7528953 (replaces 7971757) |
| 18 | Screw | 8082935 |
| 18 | Screw | 55562121 (replaces 7967938) |
| 18 | Screw | 8091738 |
| 19 | Screw | 92153146 (replaces 7972607) |
| 19 | Screw | 7972466 |
| 19 | Screw | 7973555 |
| 19 | Screw | 7971823 |
| 19 | Screw | 8286296 |
| 19 | Screw | 8125007 |
| 19 | Screw | 7969223 |
| 19 | Screw | 7974397 |
| 20 | Screw | 92153219 (replaces 7922354) |
| 20 | Screw | 7922826 |
| 20 | Screw | 7922362 |
| 20 | Screw | 92153149 (replaces 7977465) |
| 20 | Screw | 7399520 |
| 21 | Screw | 7922420 |
| 21 | Screw | 7922503 |
| 21 | Screw | 92151821 (replaces 8059552) |
| 21 | Screw | 7972805 |
| 21 | Screw | 7971294 |
| 21 | Screw | 8410961 |
| 22 | Screw | 92150102 (replaces 7972946) |
| 22 | Screw | 92151994 (replaces 7972953) |
| 23 | Nut | 7975261 |
| 23 | Press nut | 7977358 |
| 24 | Seal | 9564204 |
| 25 | Protection | 30520533 (replaces 9120106) |
