Saab 9000 1988-1989 Holders and brackets

Group 3a Electrical, general, section 2050

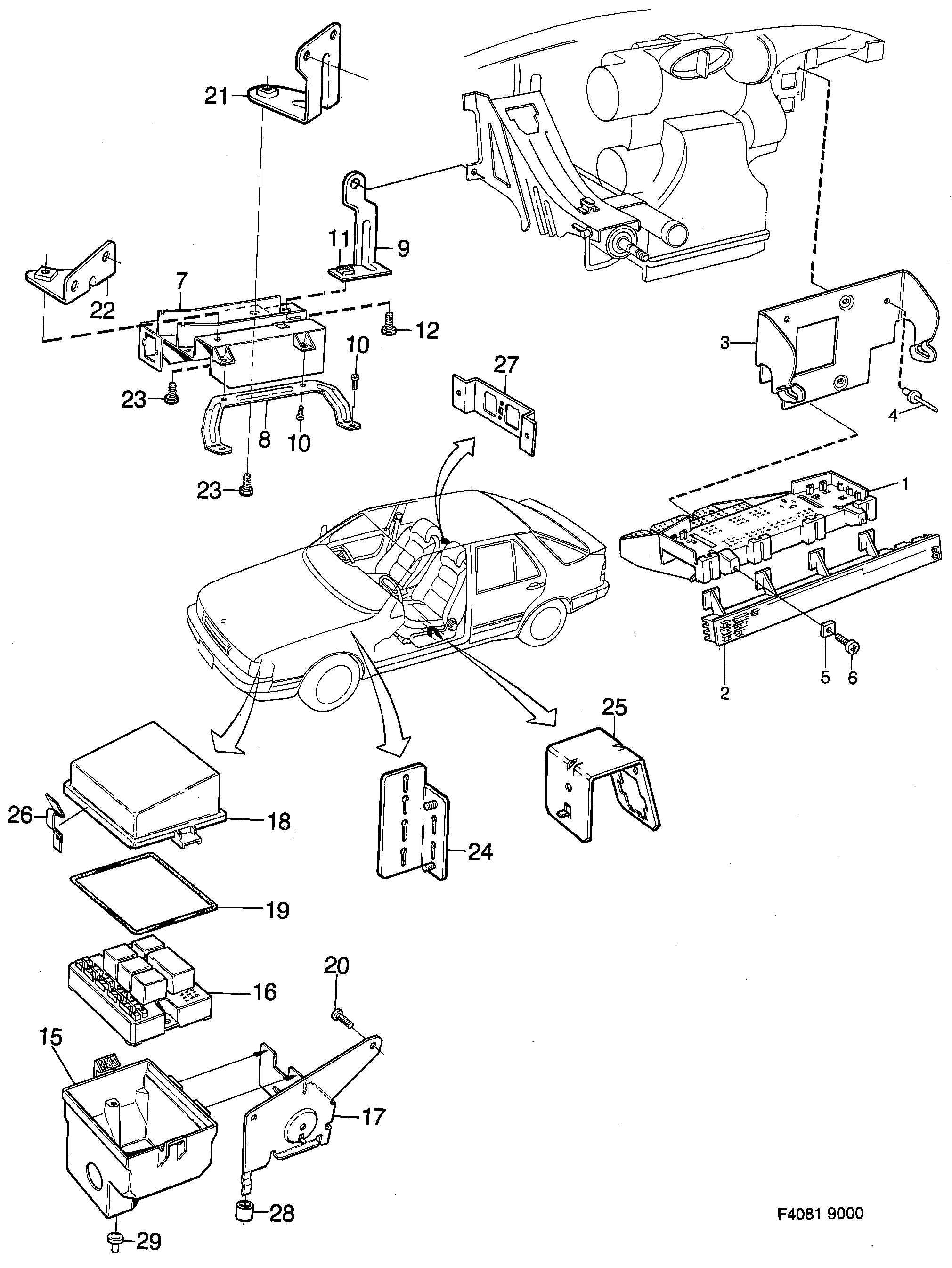

Saab 9000 Holders and brackets diagram

Pos	Article	Part No.
1	Retainer	9122730
2	Retainer	9122748
2	Retainer	9122755
3	Bracket	9505959
3	Bracket	9508441
4	Rivet	7961642
5	Clip nut	7968555
6	Screw	7922297
7	Bracket	9525007
7	Bracket	4066296
7	Bracket	9526799
8	Bracket	9526328
9	Bracket	9526336
9	Bracket	9527631
10	Screw	92153219 (replaces 7922354)
11	Clip nut	7967995
12	Screw	8059578
15	Box	9524802
15	Box	9122540
15	Box	9125386
16	Bracket	9123407
17	Bracket	9524935
17	Bracket	9121674
17	Bracket	4060158
18	Cover	9527797
18	Cover	9121872
18	Cover	4060349
19	Seal	9527789
20	Screw	7922362
21	Bracket	9525460
22	Bracket	9525486
23	Screw	7922420
24	Bracket	9525908
25	Bracket	9508029
25	Bracket	9567702
26	Lock brace	9123308
26	Lock brace	9123316
27	Bracket	9125006
28	Protection	4061388
29	Draining plug	7116452
