Saab 9000 1993-1993 Main- and engine comp.

Group 3a Electrical, general, section 1970

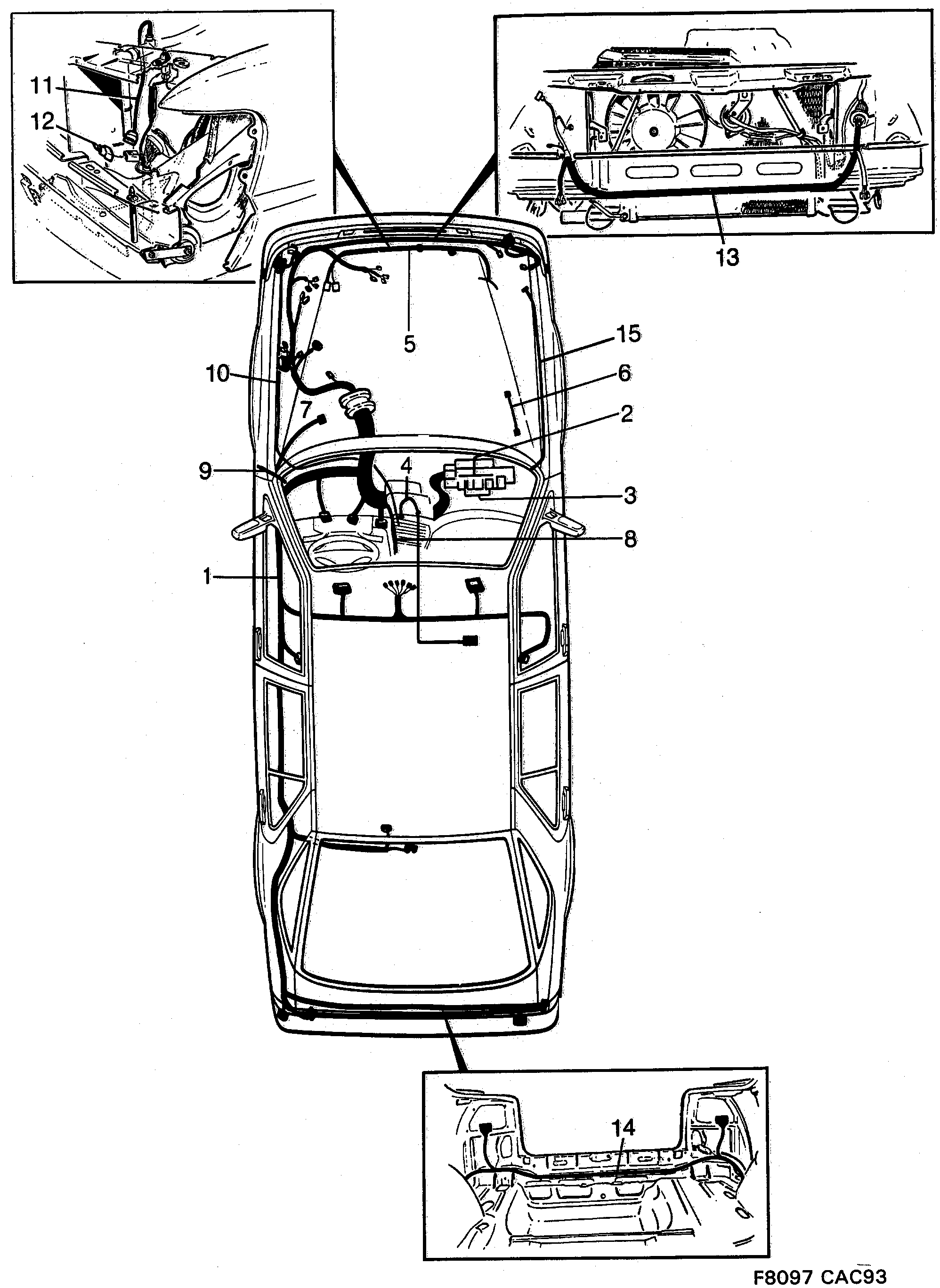

Saab 9000 Main- and engine comp. diagram
PosArticlePart No.
1Cable harness4350989
1Cable harness4350997
1Cable harness4351003
1Cable harness4351011
1Cable harness4351029
1Cable harness4418554
1Cable harness4351037
1Cable harness4418562
1Cable harness4351052
1Cable harness4351664
1Cable harness4351672
1Cable harness4351722
1Cable harness4351730
1Cable harness4418919
1Cable harness4418927
1Cable harness4351680
1Cable harness4351698
1Cable harness4351748
1Cable harness4351755
1Cable harness4351706
1Cable harness4351714
1Cable harness4351763
1Cable harness4351771
1Cable harness4351847
1Cable harness4419057
1Cable harness4351870
1Cable harness4419081
1Cable harness4351854
1Cable harness4419065
1Cable harness4351888
1Cable harness4419099
1Cable harness4351862
1Cable harness4419073
1Cable harness4351896
1Cable harness4419107
1Cable harness4419149
1Cable harness4351953
1Cable harness4351961
5Cable harness9523119
6Ground cable9565144
7Cable harness9517400
8Cable harness4067005
9Cable harness4066981
10Cable harness4433165
11Cable harness4179958
12Cable harness8598526
13Cable harness4352407
13Cable harness4352373
13Cable harness4352381
13Cable harness4352159
14Cable harness4352456
14Cable harness4352431
14Cable harness4352449
14Cable harness4352423
14Cable harness4352233
14Cable harness4352415
15Cable harness4663035
