Saab 9000 1985-1989 Bosch 115A

Group 3a Electrical, general, section 190

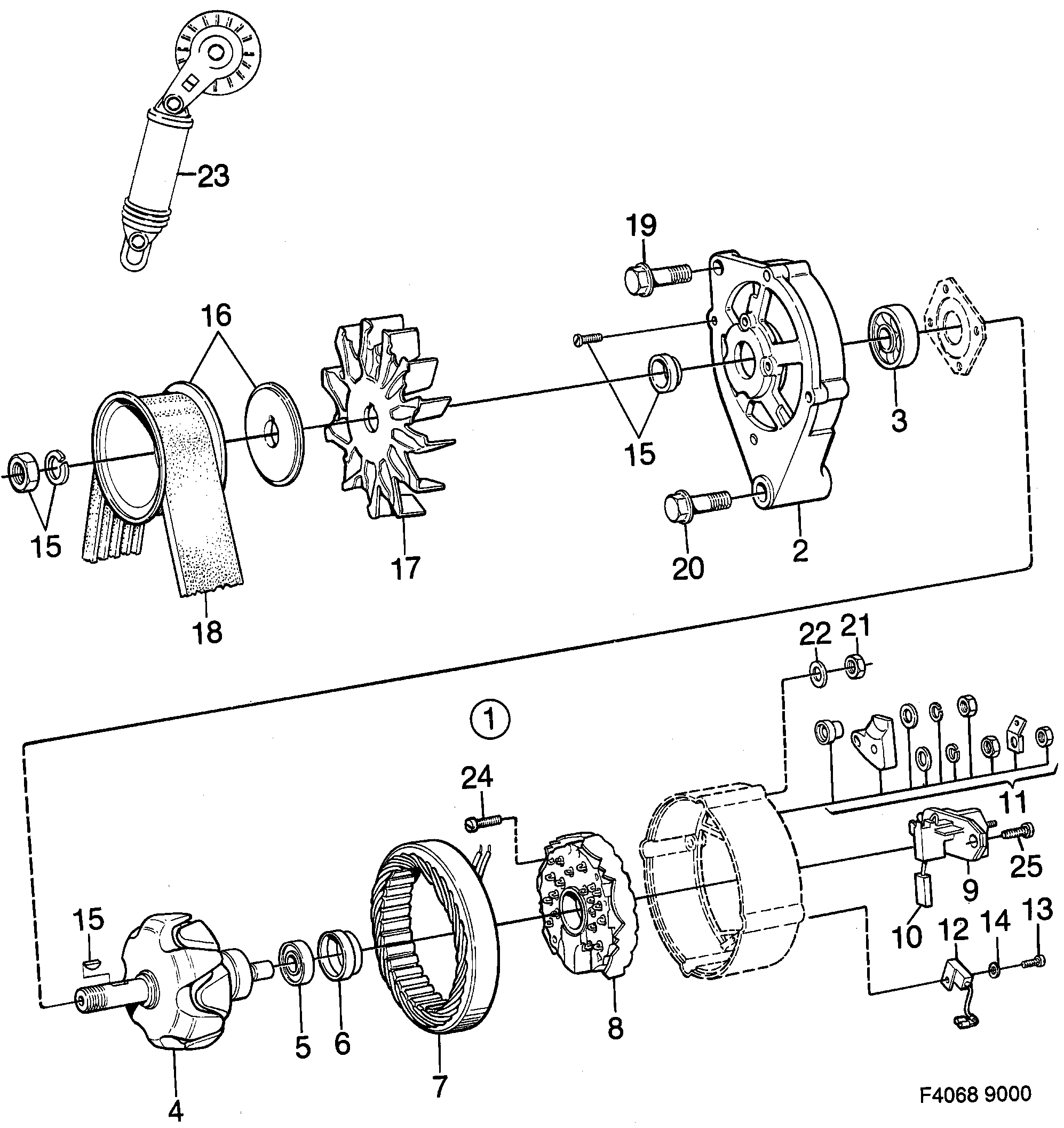

Saab 9000 Bosch 115A diagram

Pos	Article	Part No.
1	Generator	9565607
2	Bearing	9124280
3	Ball bearing	8549545 (replaces 9513128)
5	Ball bearing	9124348
6	O-ring	9124355
7	Stator	9124363
8	Rectifier	9124371
9	Voltage regulator	90349907 (replaces 8590549)
10	Brush set	9515180
11	Part kit	9124397
12	Capacitor	9523184
13	Screw	9124264
14	Washer	9124272
15	Part kit	8590994
16	Pulley	9503715
17	Fan disc	8587248
18	Belt	93185054 (replaces 7596679)
18	Belt	93185054
18	Belt	93185054 (replaces 4356887)
18	Belt	93185054 (replaces 93185057)
19	Screw	7978745
20	Screw	8098378
21	Nut	8074106
22	Washer	7933849
24	Screw	9513599
25	Screw	8571986
