Saab 9000 1992-1992 Main- and engine comp.

Group 3a Electrical, general, section 1820

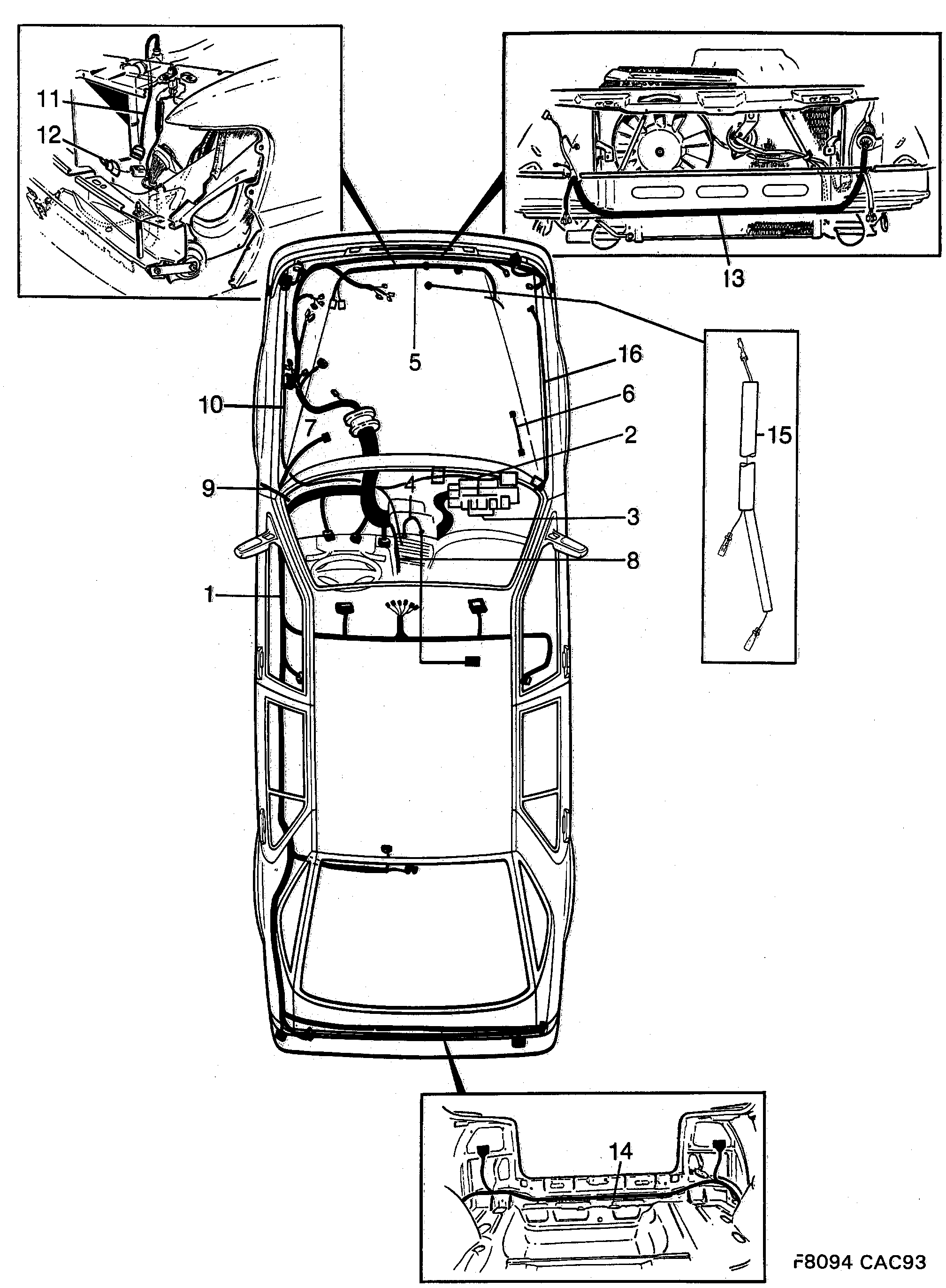

Saab 9000 Main- and engine comp. diagram
PosArticlePart No.
1Cable harness4177143
1Cable harness4177135
1Cable harness4177168
1Cable harness4177150
1Cable harness4178000
1Cable harness4178018
1Cable harness4177259
1Cable harness4177267
1Cable harness4177705
1Cable harness4177671
1Cable harness4177762
1Cable harness4177739
1Cable harness4177820
1Cable harness4177796
1Cable harness4418331
1Cable harness4418349
1Cable harness4177713
1Cable harness4177689
1Cable harness4177770
1Cable harness4177747
1Cable harness4177838
1Cable harness4177804
1Cable harness4177721
1Cable harness4177697
1Cable harness4177788
1Cable harness4177754
1Cable harness4177846
1Cable harness4177812
1Cable harness4178158
1Cable harness4178182
1Cable harness4178216
1Cable harness4178166
1Cable harness4178190
1Cable harness4178224
1Cable harness4178174
1Cable harness4178208
1Cable harness4178232
1Cable harness4353785
1Cable harness4350757
1Cable harness4350765
1Cable harness4177861
1Cable harness4179495
1Cable harness4177879
1Cable harness4179503
5Cable harness9523119
6Ground cable9565144
7Cable harness9517400
8Cable harness4067005
9Cable harness4066981
10Cable harness4433165
11Cable harness4179958
12Cable harness8598526
13Cable harness4178539
13Cable harness4178513
13Cable harness4178521
13Cable harness4179446
14Cable harness4179719
14Cable harness4178638
14Cable harness4178646
14Cable harness4178620
14Cable harness4178612
15Cable harness4582441
16Cable harness4663035
