Saab 9000 1989-1989 Main- and engine comp.

Group 3a Electrical, general, section 1780

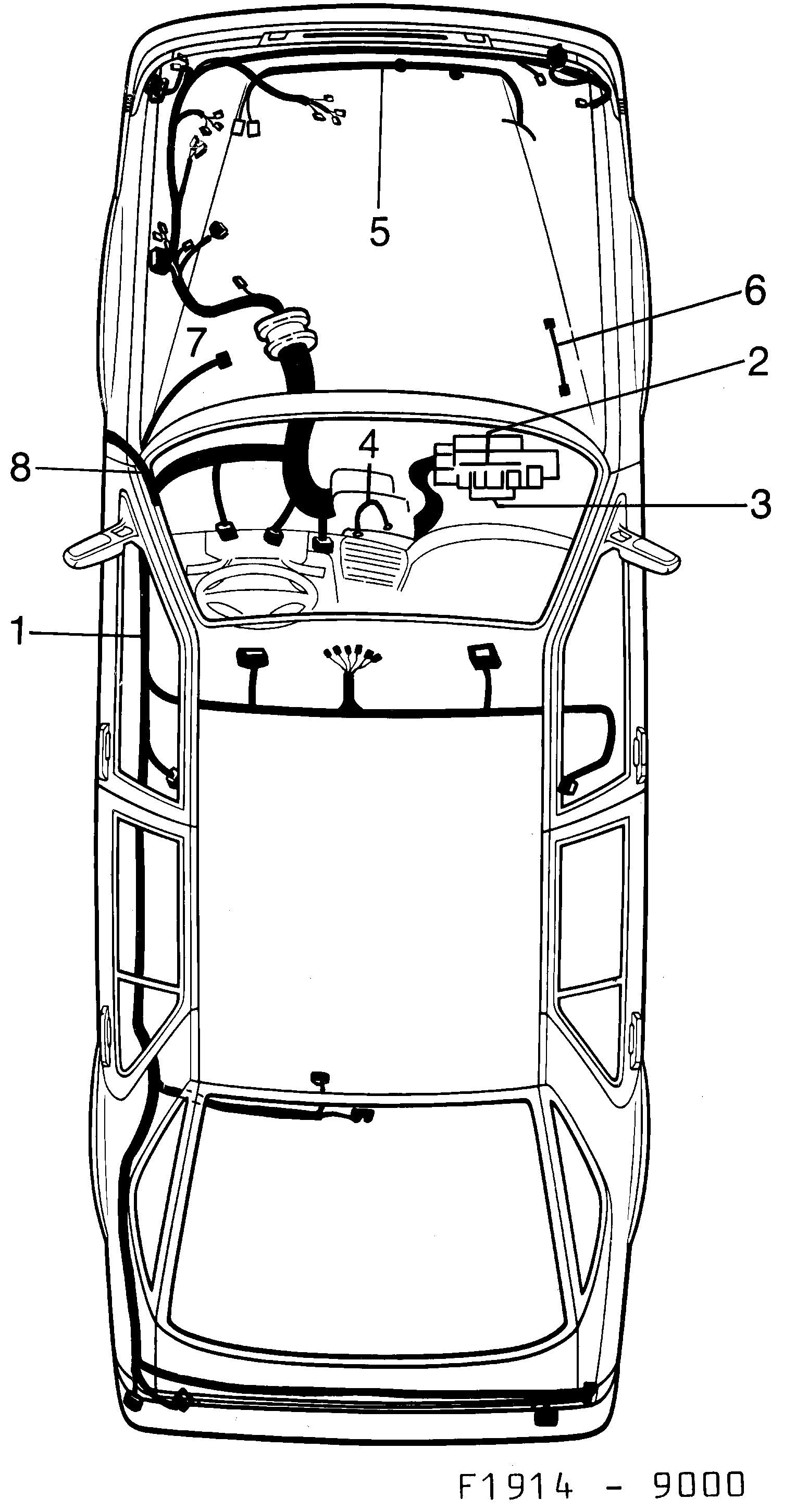

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	9569138
1	Cable harness	9569153
1	Cable harness	9569476
1	Cable harness	9569492
1	Cable harness	9569195
1	Cable harness	9569211
1	Cable harness	9569658
1	Cable harness	9569674
1	Cable harness	9569237
1	Cable harness	9569252
1	Cable harness	9569518
1	Cable harness	9569534
1	Cable harness	9569278
1	Cable harness	9569559
1	Cable harness	9569310
1	Cable harness	9569575
1	Cable harness	9569351
1	Cable harness	9569591
1	Cable harness	9569393
1	Cable harness	4063830
1	Cable harness	4060190
1	Cable harness	9124520
1	Cable harness	9569435
1	Cable harness	9569633
1	Cable harness	9569419
1	Cable harness	9124546
4	Cable	9524786
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	9517400
8	Cable harness	9517376
