Saab 9000 1997-1997 Main- and engine comp.

Group 3a Electrical, general, section 1770

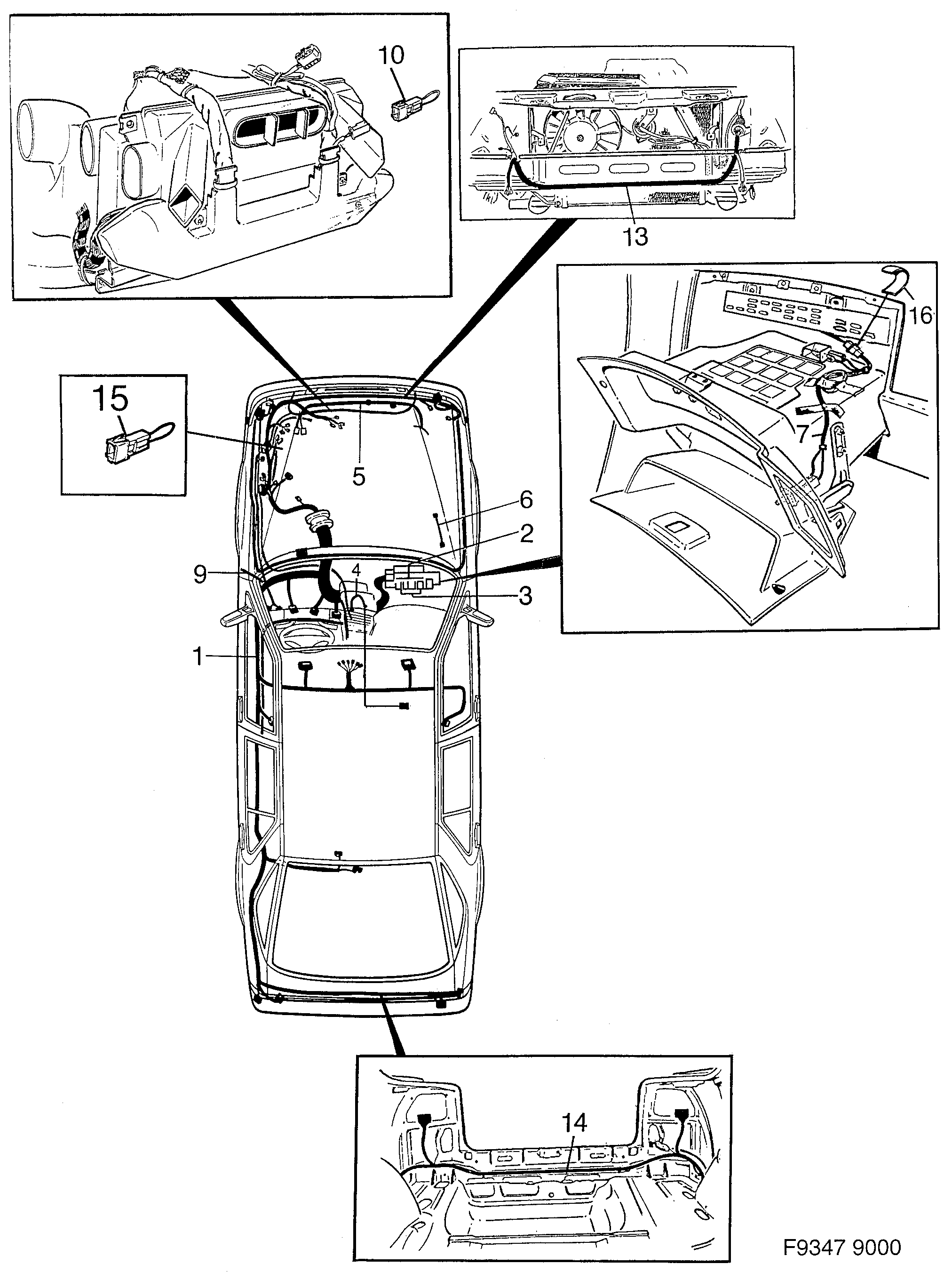

Saab 9000 Main- and engine comp. diagram
PosArticlePart No.
1Cable harness4694824
1Cable harness4928008
1Cable harness4694832
1Cable harness4928016
1Cable harness4812640
1Cable harness4928073
1Cable harness4812657
1Cable harness4928081
1Cable harness4694857
1Cable harness4928032
1Cable harness4694865
1Cable harness4928040
1Cable harness4694881
1Cable harness4928057
1Cable harness4694923
1Cable harness4942678
1Cable harness4694931
1Cable harness4942686
1Cable harness4694956
1Cable harness4942702
1Cable harness4694964
1Cable harness4942710
1Cable harness4808408
1Cable harness4942728
1Cable harness4808416
1Cable harness4942736
1Cable harness4694840
1Cable harness4928024
1Cable harness4812665
1Cable harness4928099
1Cable harness4694899
1Cable harness4928065
1Cable harness4694949
1Cable harness4942694
1Cable harness4808424
5Cable harness9523119
6Ground cable9565144
7Cable harness4432662
9Cable harness4066981
10Cable harness9569740
13Cable harness4733036
13Cable harness4733044
13Cable harness4814117
13Cable harness4733051
13Cable harness4733028
13Cable harness4733069
14Cable harness4537387
14Cable harness4537338
14Cable harness4537353
14Cable harness4537320
16Tape4948808 (replaces 4665840)
