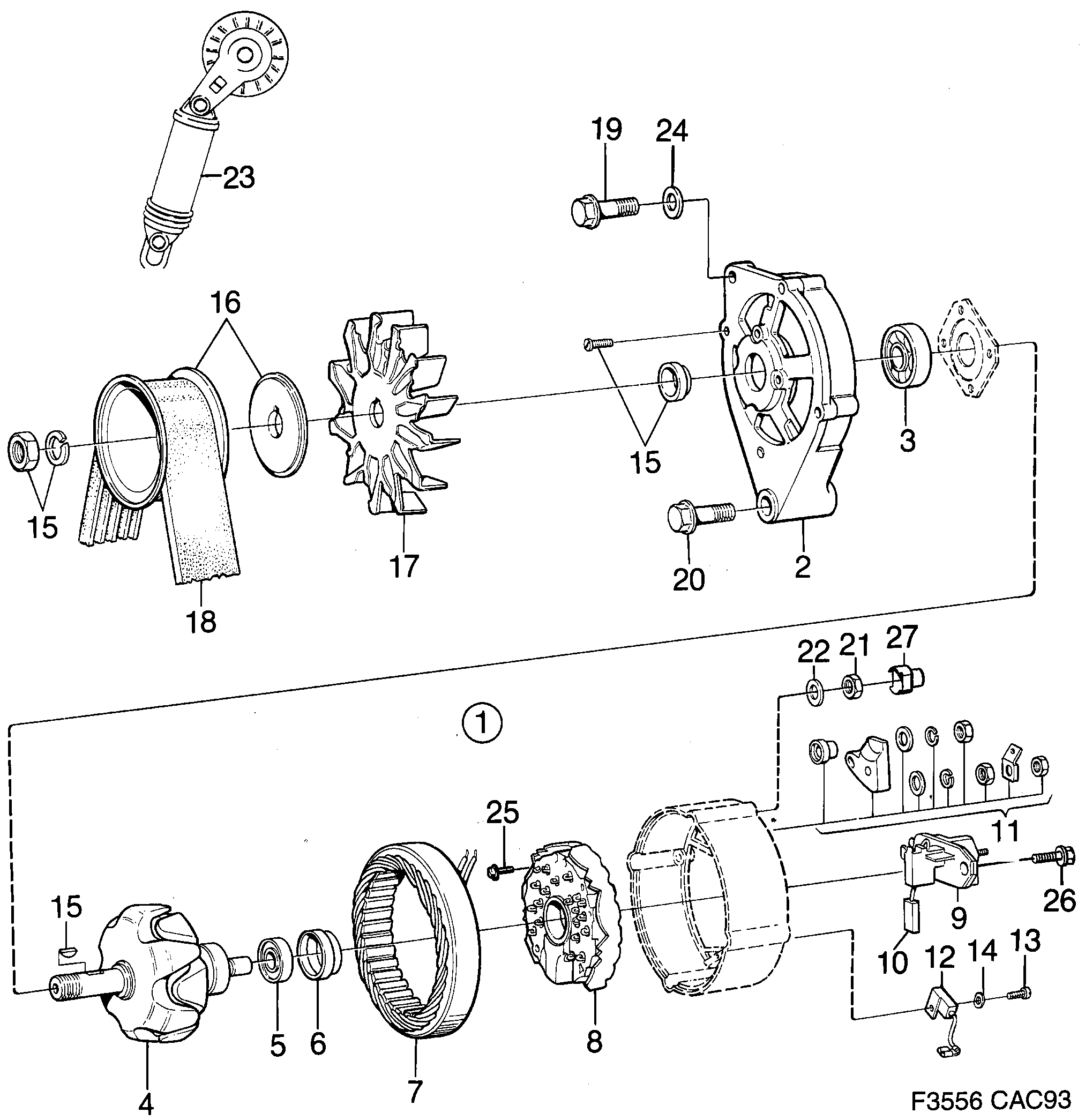

Group 3a Electrical, general, section 170
| Pos | Article | Part No. |
|---|---|---|
| 1 | Generator | 9565607 |
| 1 | Generator | 9120981 |
| 2 | Bearing | 9124280 |
| 3 | Ball bearing | 8549545 (replaces 9513128) |
| 4 | Rotor | 9124314 |
| 5 | Ball bearing | 9124348 |
| 6 | O-ring | 9124355 |
| 7 | Stator | 9124363 |
| 8 | Rectifier | 9124371 |
| 9 | Voltage regulator | 90349907 (replaces 8590549) |
| 10 | Brush set | 9515180 |
| 11 | Part kit | 9124397 |
| 12 | Capacitor | 9523184 |
| 13 | Screw | 9124264 |
| 14 | Washer | 9124272 |
| 15 | Part kit | 8590994 |
| 16 | Pulley | 9503715 |
| 16 | Pulley | 4063475 |
| 17 | Fan disc | 8587248 |
| 18 | Belt | 93185054 (replaces 7596679) |
| 18 | Belt | 93185054 |
| 18 | Belt | 93185054 (replaces 4356887) |
| 18 | Belt | 93185054 (replaces 93185057) |
| 18 | Belt | 93185055 (replaces 4029195) |
| 18 | Belt | 4356895 |
| 18 | Belt | 93185051 (replaces 4029203) |
| 18 | Belt | 93185051 (replaces 4356903) |
| 19 | Screw | 7978745 |
| 19 | Screw | 7974777 |
| 19 | Screw | 8098378 |
| 21 | Nut | 8074106 |
| 22 | Washer | 7933849 |
| 22 | Washer | 7311764 |
| 24 | Washer | 8073108 |
| 25 | Screw | 9513599 |
| 26 | Screw | 8571986 |
| 27 | Plastic cover | 9124645 |
