Saab 9000 1991-1991 Main- and engine comp.

Group 3a Electrical, general, section 1670

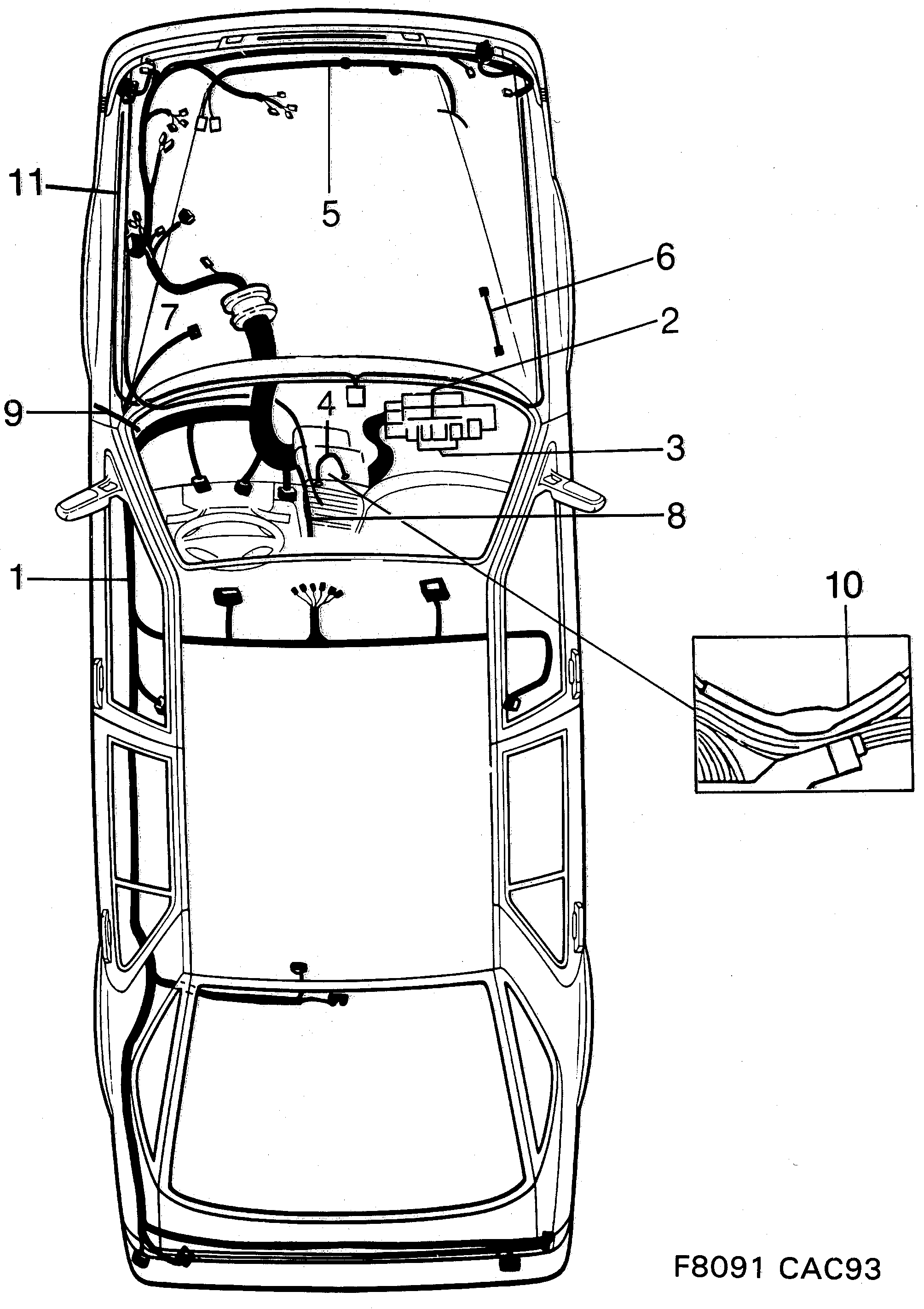

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	4111779
1	Cable harness	4111787
1	Cable harness	4111795
1	Cable harness	4111803
1	Cable harness	4111837
1	Cable harness	4111845
1	Cable harness	4111928
1	Cable harness	4111860
1	Cable harness	4112298
1	Cable harness	4112314
1	Cable harness	4112330
1	Cable harness	4112355
1	Cable harness	4112306
1	Cable harness	4112322
1	Cable harness	4112348
1	Cable harness	4112363
1	Cable harness	4112413
1	Cable harness	4112439
1	Cable harness	4112421
1	Cable harness	4112447
1	Cable harness	4350336
1	Cable harness	4112488
1	Cable harness	4112561
4	Cable	9524786
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	9517400
8	Cable harness	4067005
9	Cable harness	4066981
10	Resistor	8548034
11	Cable harness	4433132
