Saab 9000 1988-1988 Main- and engine comp.

Group 3a Electrical, general, section 1660

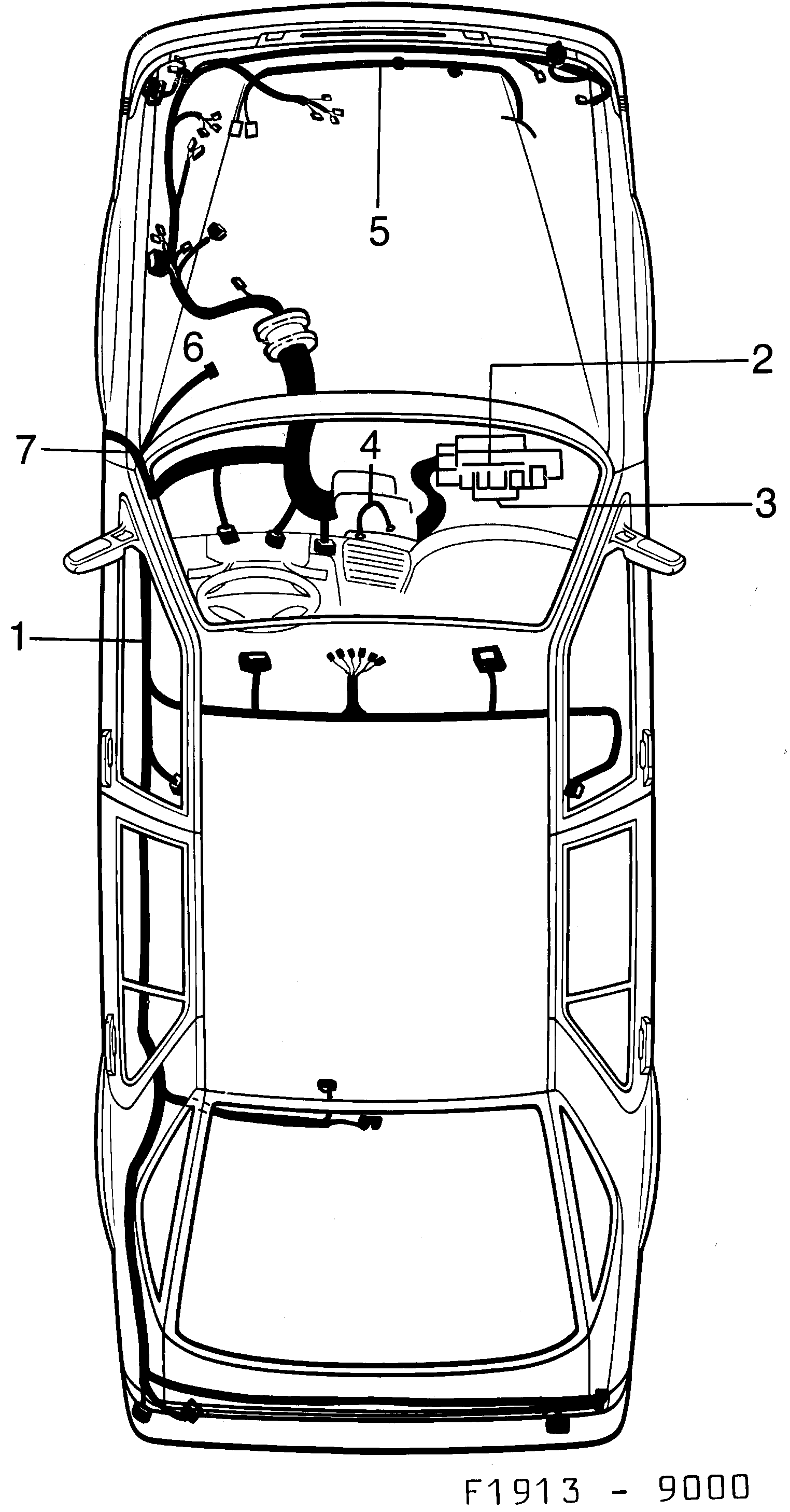

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	9527037
1	Cable harness	9527052
1	Cable harness	9527292
1	Cable harness	9527318
1	Cable harness	9527839
1	Cable harness	9527854
1	Cable harness	9527938
1	Cable harness	9527953
1	Cable harness	9527078
1	Cable harness	9527094
1	Cable harness	9527334
1	Cable harness	9527359
1	Cable harness	9566944
1	Cable harness	9566969
1	Cable harness	9527110
1	Cable harness	9527375
1	Cable harness	9527151
1	Cable harness	9527417
1	Cable harness	9527193
1	Cable harness	9527235
1	Cable harness	9527433
1	Cable harness	9527896
1	Cable harness	9527250
1	Cable harness	9520511
1	Cable harness	9527870
4	Cable	9524786
5	Cable harness	9523119
6	Cable harness	9517400
7	Cable harness	9517376
