Saab 9000 1996-1996 Main- and engine comp.

Group 3a Electrical, general, section 1650

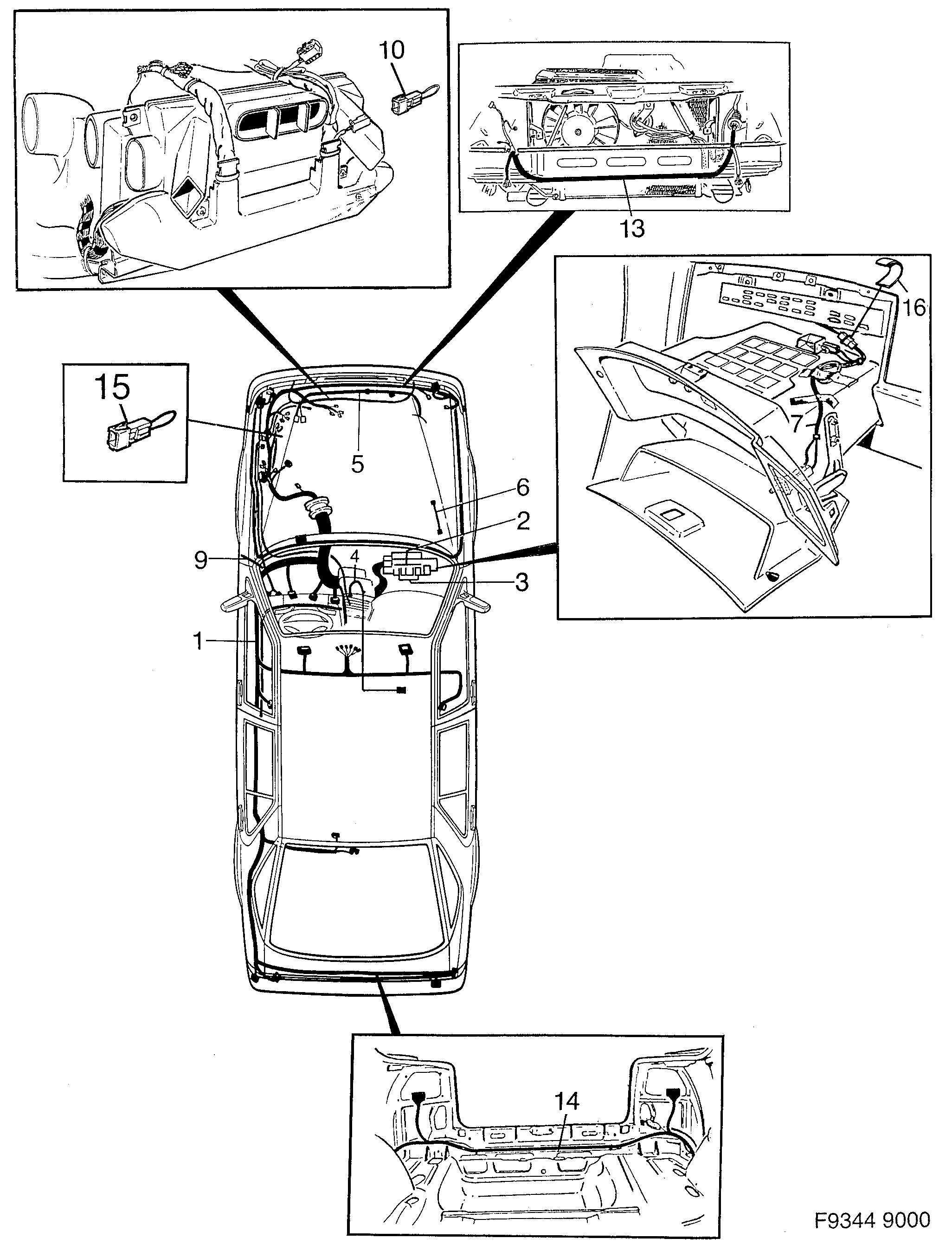

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	4587119
1	Cable harness	4587143
1	Cable harness	4666756
1	Cable harness	4666764
1	Cable harness	4587200
1	Cable harness	4587267
1	Cable harness	4808341
1	Cable harness	4587283
1	Cable harness	4808358
1	Cable harness	4667002
1	Cable harness	4667010
1	Cable harness	4587192
1	Cable harness	4666798
1	Cable harness	4587242
1	Cable harness	4587333
1	Cable harness	4808366
1	Cable harness	4667044
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	4432662
9	Cable harness	4066981
10	Cable harness	9569740
13	Cable harness	4586954
13	Cable harness	4586962
13	Cable harness	4586988
13	Cable harness	4586939
13	Cable harness	4586996
14	Cable harness	4537387
14	Cable harness	4537338
14	Cable harness	4537320
16	Tape	4948808 (replaces 4665840)
