Saab 9000 1991-1991 Main- and engine comp.

Group 3a Electrical, general, section 1640

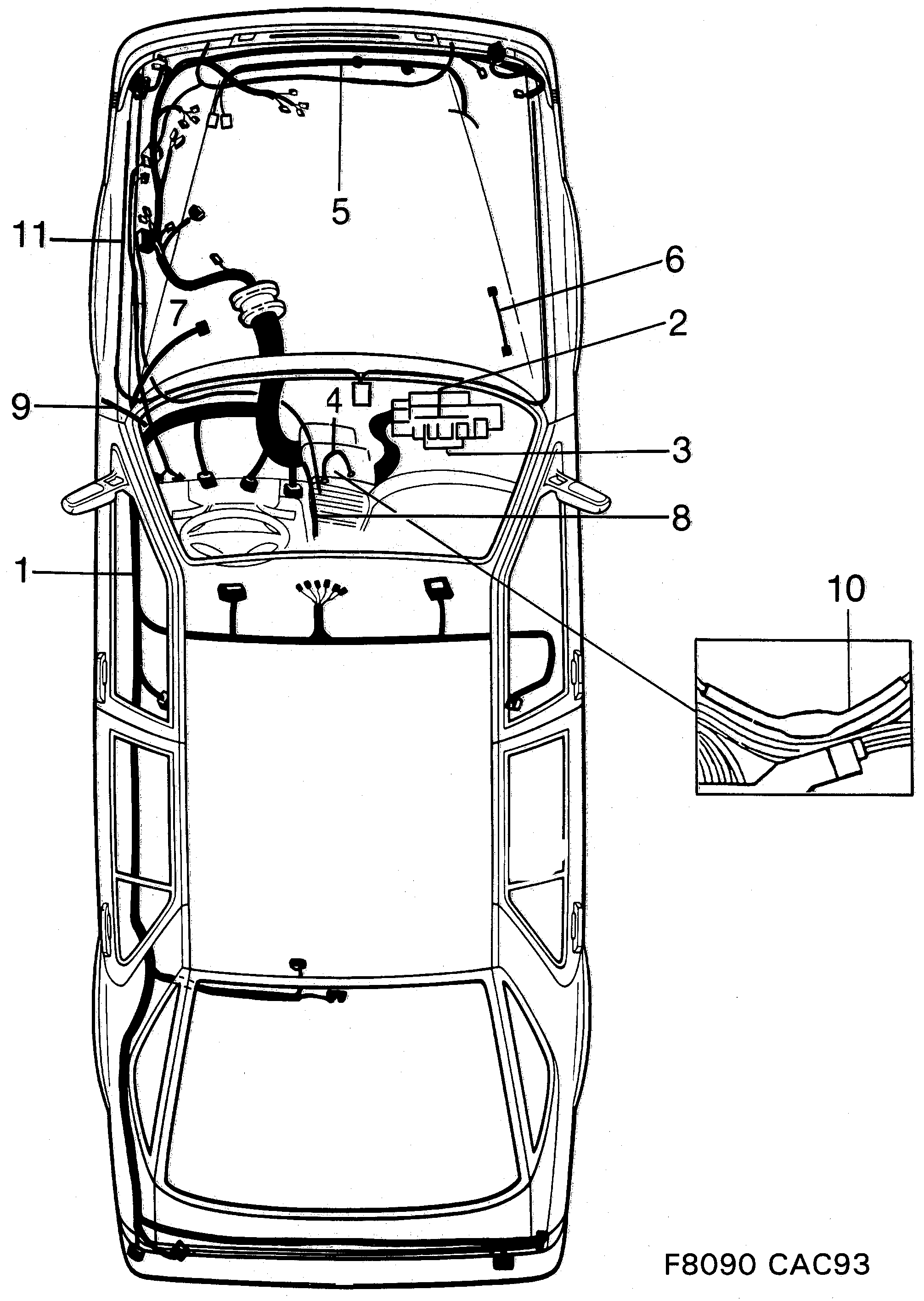

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	4111530
1	Cable harness	4111548
1	Cable harness	4111555
1	Cable harness	4111563
1	Cable harness	4111597
1	Cable harness	4111605
1	Cable harness	4111688
1	Cable harness	4111696
1	Cable harness	4111704
1	Cable harness	4111712
1	Cable harness	4111746
1	Cable harness	4111753
1	Cable harness	4112009
1	Cable harness	4112025
1	Cable harness	4112041
1	Cable harness	4112066
1	Cable harness	4112017
1	Cable harness	4112033
1	Cable harness	4112058
1	Cable harness	4112074
1	Cable harness	4112132
1	Cable harness	4112157
1	Cable harness	4112124
1	Cable harness	4112140
1	Cable harness	4112298
1	Cable harness	4112314
1	Cable harness	4112330
1	Cable harness	4112355
4	Cable	9524786
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	9517400
8	Cable harness	4067005
9	Cable harness	4066981
10	Resistor	8548034
11	Cable harness	4433132
