Saab 9000 1985-1989 Bosch 80A

Group 3a Electrical, general, section 160

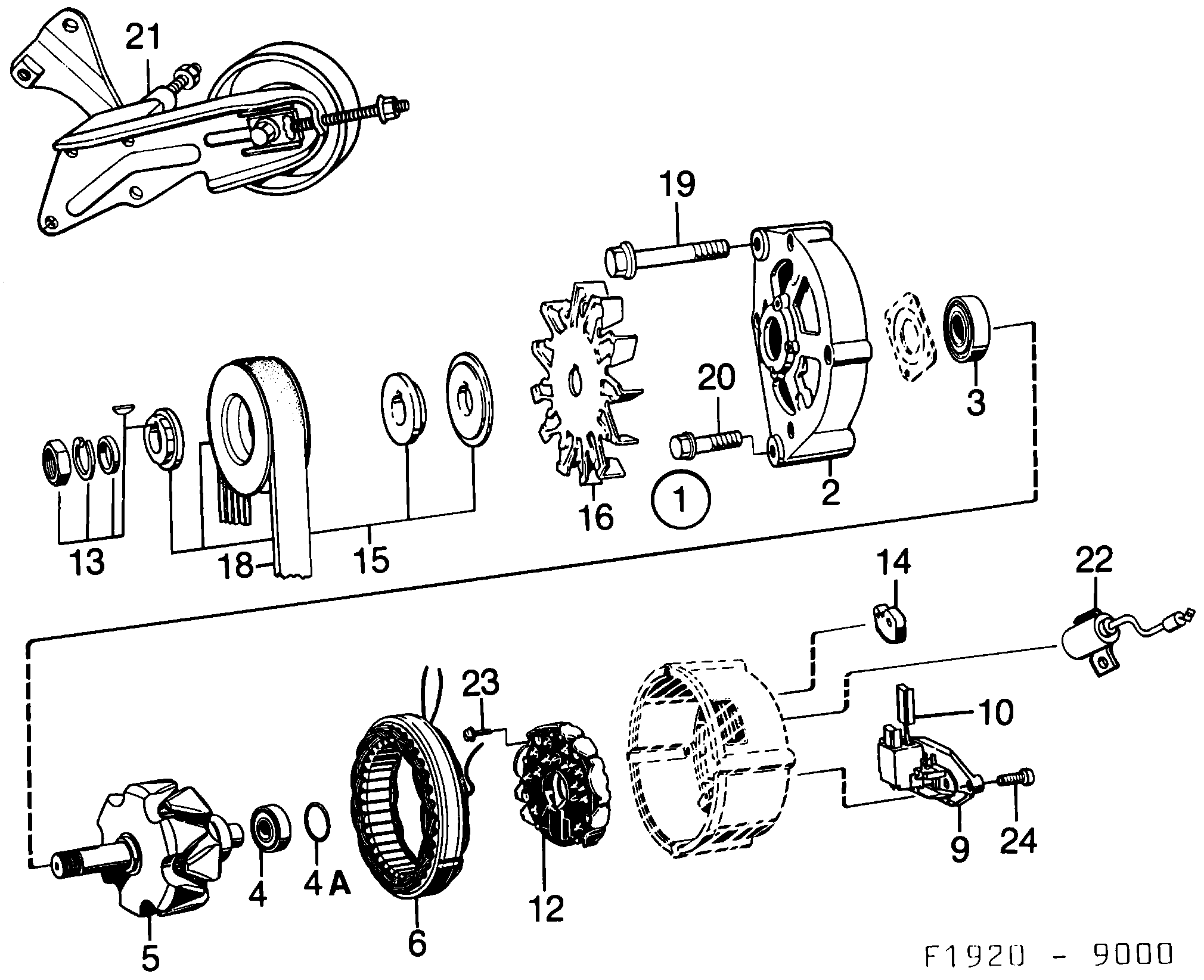

Saab 9000 Bosch 80A diagram

Pos	Article	Part No.
1	Generator	9506361
1	Generator	9529033
2	Bearing	9513763
3	Ball bearing	8549545 (replaces 8590911)
3	Ball bearing	8549545 (replaces 9513128)
4	Ball bearing	8590929
4	Ball bearing	9513185
4A	O-ring	8590986
4A	O-ring	9124355 (replaces 9513193)
5	Rotor	8590903
5	Rotor	9513144
6	Stator	9513169
9	Voltage regulator	90349907 (replaces 8590549)
10	Brush set	9515180
12	Rectifier	8590945
12	Rectifier	9513177
13	Part kit	8590994
14	Protection	8593329
15	Pulley	9503715
16	Fan disc	8587248
18	Belt	7579881
18	Belt	93185056
18	Belt	4356879
18	Belt	93185054 (replaces 7596679)
18	Belt	93185054
18	Belt	93185054 (replaces 4356887)
18	Belt	93185054 (replaces 93185057)
19	Screw	7974108
19	Screw	8098378
20	Screw	7974777
22	Capacitor	9523184
23	Screw	9513599
24	Screw	8571986
