Saab 9000 1987-1987 Main- and engine comp.

Group 3a Electrical, general, section 1540

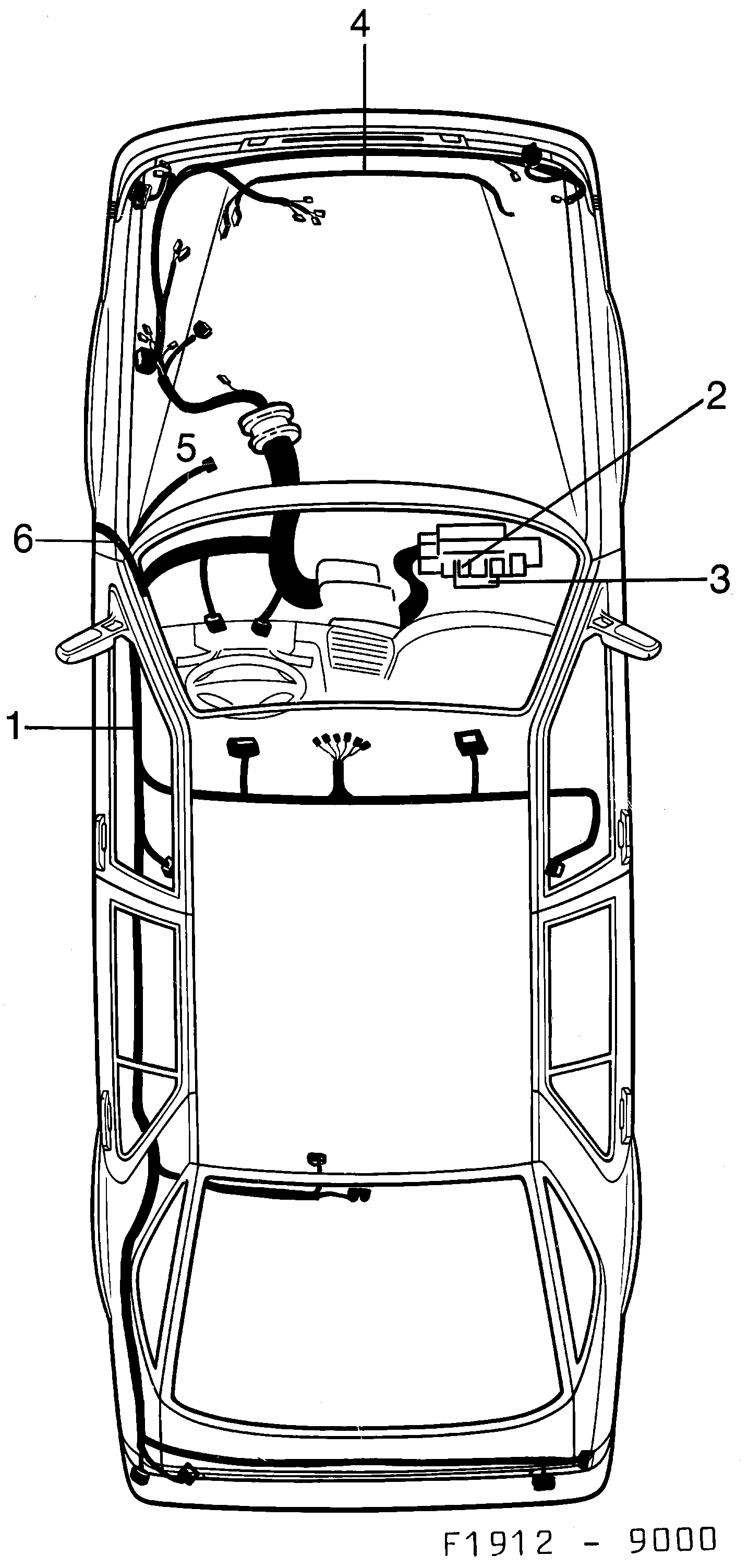

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	9520057
1	Cable harness	9520073
1	Cable harness	9520313
1	Cable harness	9520339
1	Cable harness	9520099
1	Cable harness	9520115
1	Cable harness	9520354
1	Cable harness	9520370
1	Cable harness	9520131
1	Cable harness	9520156
1	Cable harness	9520396
1	Cable harness	9520172
1	Cable harness	9520412
1	Cable harness	9520214
1	Cable harness	9520438
1	Cable harness	9520453
1	Cable harness	9520255
1	Cable harness	9520479
1	Cable harness	9520271
1	Cable harness	9516493
1	Cable harness	9520495
1	Cable harness	9520511
4	Cable harness	9523119
5	Cable harness	9517400
6	Cable harness	9517376
