Saab 9000 1995-1995 Main- and engine comp.

Group 3a Electrical, general, section 1530

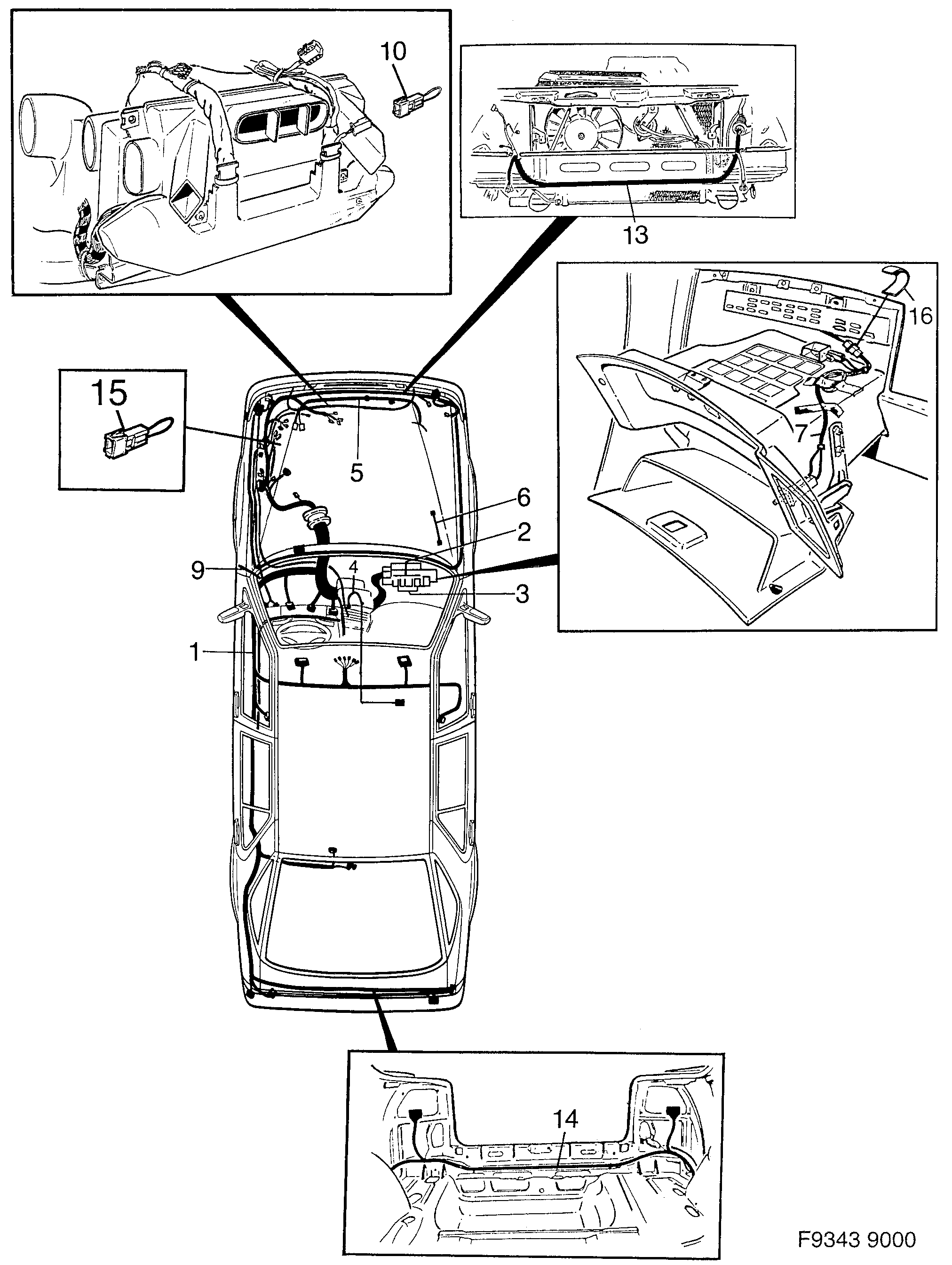

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	4517025
1	Cable harness	4517074
1	Cable harness	4517108
1	Cable harness	4517124
1	Cable harness	4517157
1	Cable harness	4517355
1	Cable harness	4517405
1	Cable harness	4517439
1	Cable harness	4517454
1	Cable harness	4517488
1	Cable harness	4517504
1	Cable harness	4517538
1	Cable harness	4517553
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	4432662
9	Cable harness	4066981
10	Cable harness	9569740
13	Cable harness	4516829
13	Cable harness	4516837
13	Cable harness	4516894
13	Cable harness	4516936
14	Cable harness	4537387
14	Cable harness	4537338
14	Cable harness	4537353
14	Cable harness	4537320
15	Cable harness	4692596
16	Tape	4948808 (replaces 4665840)
