Saab 9000 1994-1994 Bosch 80A

Group 3a Electrical, general, section 150

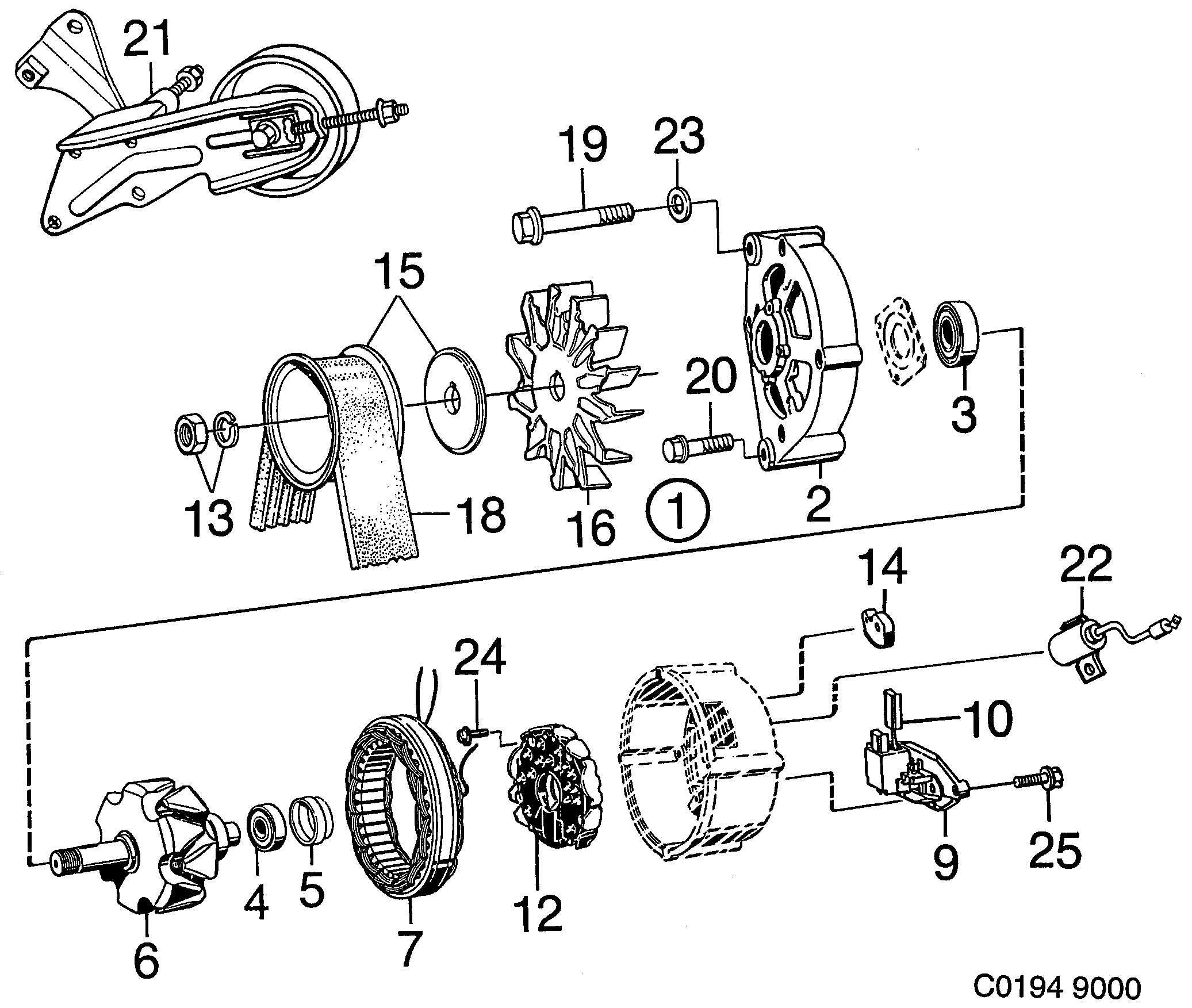

Saab 9000 Bosch 80A diagram

Pos	Article	Part No.
1	Generator	9562752
2	Bearing	9513763
3	Ball bearing	8549545 (replaces 9513128)
4	Ball bearing	9513185
5	O-ring	9124355 (replaces 9513193)
6	Rotor	9513144
7	Stator	9513169
9	Voltage regulator	90349907 (replaces 8590549)
10	Brush set	9515180
12	Rectifier	9513177
13	Part kit	8590994
14	Protection	8593329
15	Pulley	4063475
16	Fan disc	8587248
19	Screw	8098378
22	Capacitor	9523184
23	Washer	8073108
24	Screw	9513599
25	Screw	8571986
