Saab 9000 1990-1990 Main- and engine comp.

Group 3a Electrical, general, section 1490

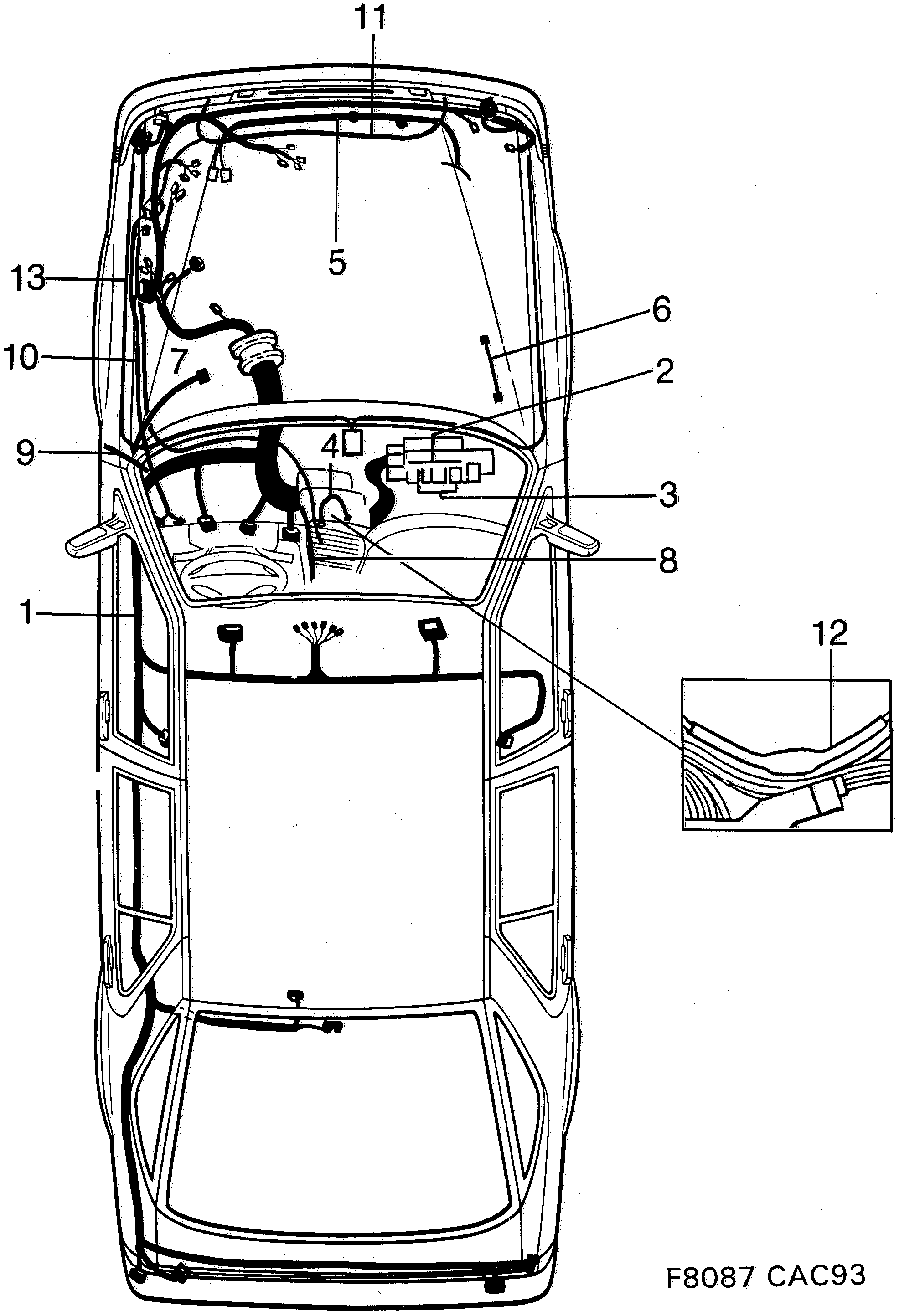

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	4064010
1	Cable harness	4064051
1	Cable harness	4064713
1	Cable harness	4064754
1	Cable harness	4064093
1	Cable harness	4064135
1	Cable harness	4064796
1	Cable harness	4065116
1	Cable harness	4064812
1	Cable harness	4065132
1	Cable harness	4064259
1	Cable harness	4064275
1	Cable harness	4064879
1	Cable harness	4064895
1	Cable harness	4064317
1	Cable harness	4064291
1	Cable harness	4064952
1	Cable harness	4064911
1	Cable harness	4064374
1	Cable harness	4065017
1	Cable harness	4064218
1	Cable harness	4065074
4	Cable	9524786
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	9517400
8	Cable harness	4067005
9	Cable harness	4066981
10	Cable harness	8664252
10	Cable harness	8664583
11	Cable harness	8664245
12	Resistor	8548034
13	Cable harness	4433132
