Saab 9000 1990-1993 Electrical system ABS, TCS, ASR, ETS

Group 3a Electrical, general, section 1460

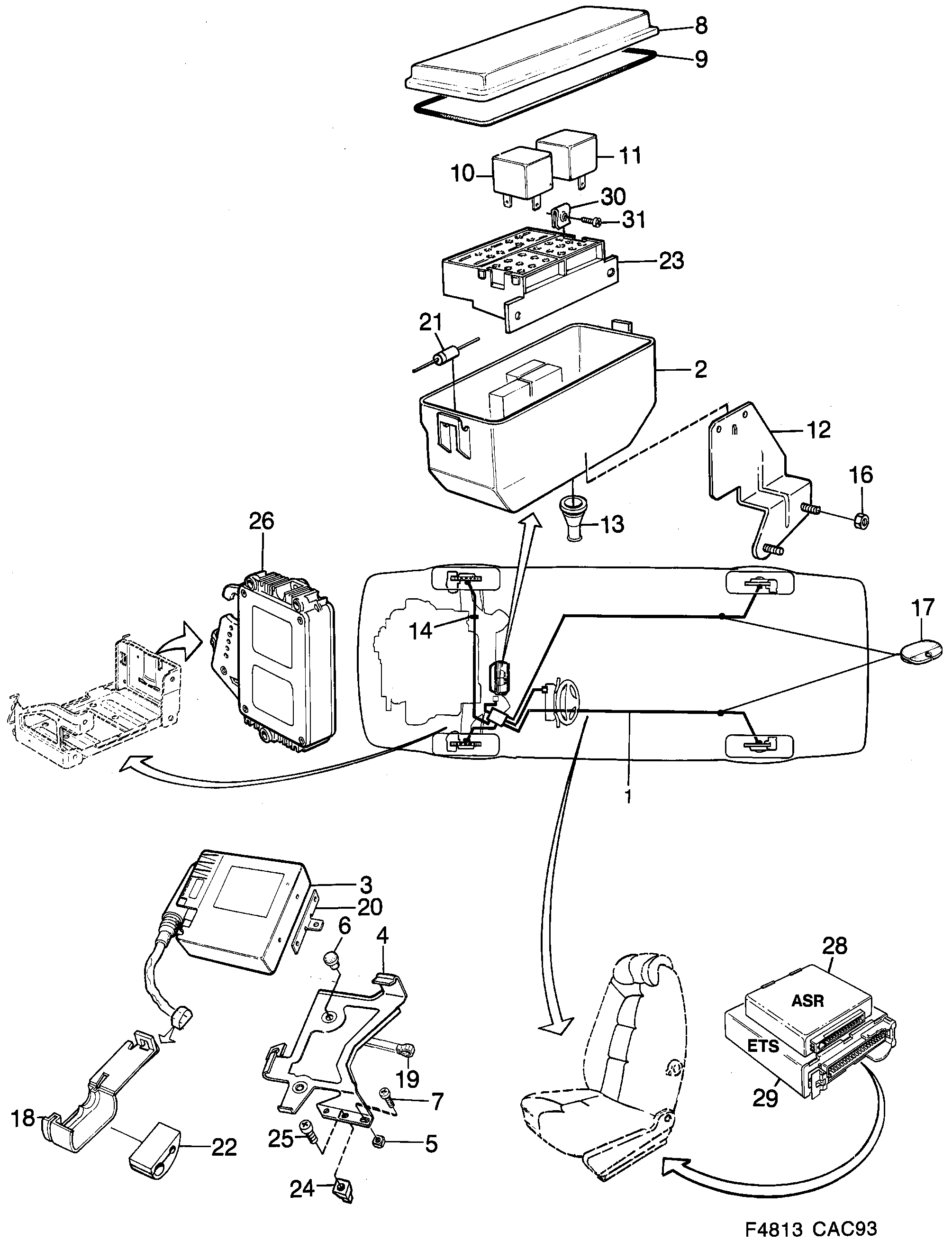

Saab 9000 Electrical system ABS, TCS, ASR, ETS diagram

Pos	Article	Part No.
1	Cable harness	4069415
1	Cable harness	4175444
1	Cable harness	4352357
1	Cable harness	4066908
1	Cable harness	4175451
1	Cable harness	4175469
1	Cable harness	4352365
2	Box	4111118
3	Electronic unit	4002176
4	Bracket	4004438
5	Spring nut	7933682
6	Plug	9268186
7	Screw	7922347 (replaces 7946734)
7	Screw	11900378 (replaces 7978372)
8	Cover	9519919
9	Seal	9519927
10	Relay	8533176
11	Relay	9522822
12	Bracket	4060711
13	Protection	9519745
14	Clamp	9228149 (replaces 7399033)
14	Clip	9228149
16	Nut	11900428 (replaces 7971658)
17	Cover	9279878
18	Bracket	9625633
19	Clamp	4001830
20	Bracket	8971970
21	Diode	4424172
22	Seal	4062063
23	Connector housing	9125543
24	Nut	7975261
25	Screw	92153219 (replaces 7922354)
25	Screw	7922438
26	Electronic unit	4190492
26	Electronic unit	4195293
26	Electronic unit	4199626
26	Electronic unit	8827628 (replaces 4107363)
26	Electronic unit	4198602
26	Electronic unit	4197927
27	Screw	92153218 (replaces 7982176)
28	Electronic unit	4159190
29	Electronic unit	30547249 (replaces 4022653)
29	Electronic unit	30547249 (replaces 4159182)
29	Electronic unit	30547249 (replaces 4300075)
29	Electronic unit	30547249 (replaces 4300539)
30	Clip nut	7968001
31	Screw	92153219 (replaces 7970601)
