Saab 9000 1986-1986 Main- and engine comp.

Group 3a Electrical, general, section 1420

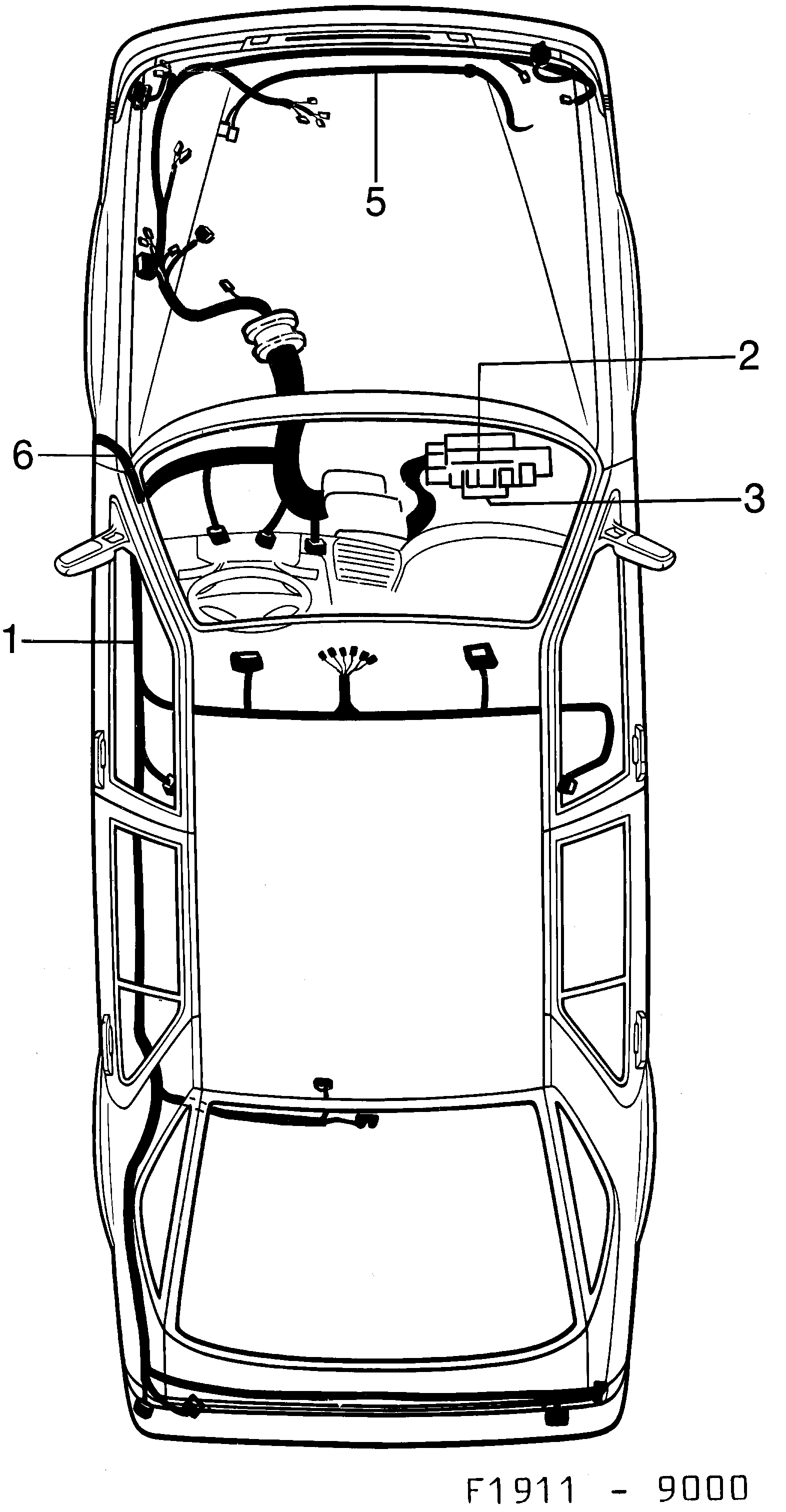

Saab 9000 Main- and engine comp. diagram
PosArticlePart No.
1Cable harness9516394
1Cable harness9516402
1Cable harness9516501
1Cable harness9516519
1Cable harness9516410
1Cable harness9516428
1Cable harness9516527
1Cable harness9516535
1Cable harness9516444
1Cable harness9516543
1Cable harness9520172
1Cable harness9516550
1Cable harness9516469
1Cable harness9516568
1Cable harness9516477
1Cable harness9516576
1Cable harness9516485
1Cable harness9516493
1Cable harness9516584
4Cable harness9519042
5Cable harness9523119
6Cable harness9517376
