Saab 9000 1994-1994 Main- and engine comp.

Group 3a Electrical, general, section 1410

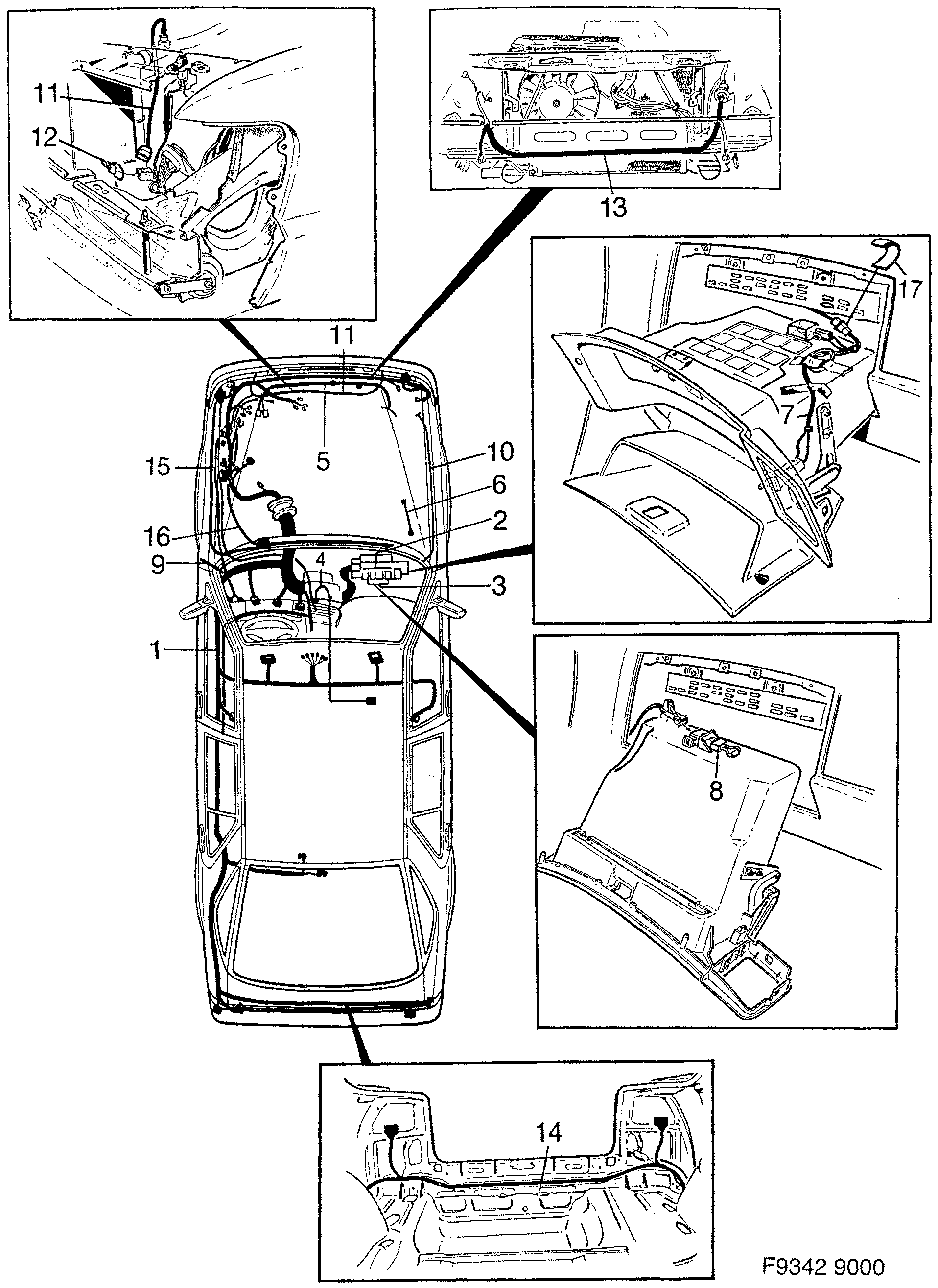

Saab 9000 Main- and engine comp. diagram

Pos	Article	Part No.
1	Cable harness	4430542
1	Cable harness	4430609
1	Cable harness	4430625
1	Cable harness	4430393
1	Cable harness	4430401
1	Cable harness	4430757
1	Cable harness	4430500
1	Cable harness	4431086
5	Cable harness	9523119
6	Ground cable	9565144
7	Cable harness	4432662
9	Cable harness	4066981
10	Cable harness	4663035
11	Cable harness	4179958
12	Cable harness	8598526
13	Cable harness	4433082
13	Cable harness	4433058
13	Cable harness	4433066
13	Cable harness	4433033
14	Cable harness	4352456
14	Cable harness	4352431
14	Cable harness	4352449
14	Cable harness	4352415
14	Cable harness	4352423
14	Cable harness	4352233
15	Cable harness	4433165
16	Cable harness	4516506
17	Tape	4948808 (replaces 4432449)
