Saab 9000 1990-1993 Anti theft system

Group 3a Electrical, general, section 1400

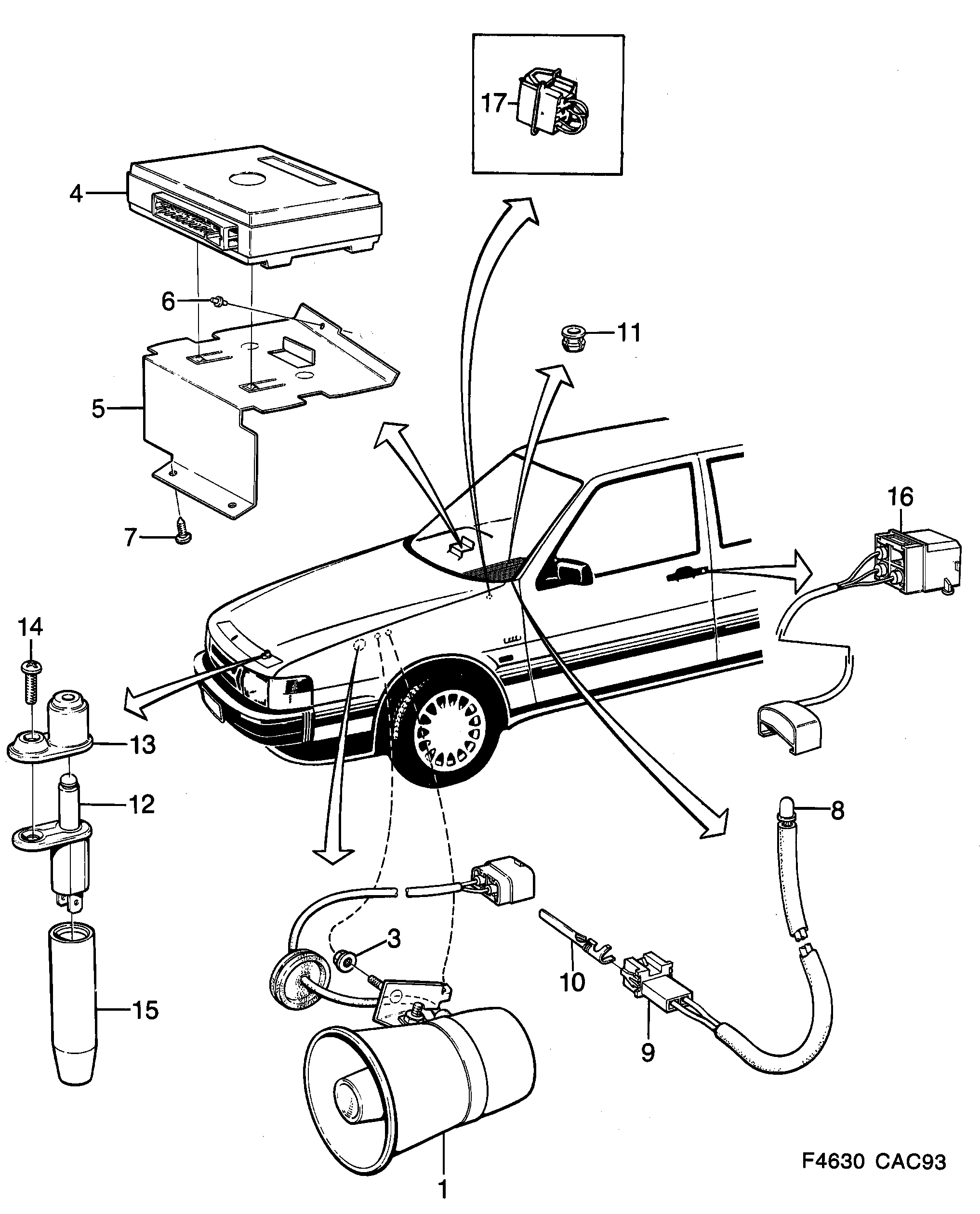

Saab 9000 Anti theft system diagram

Pos	Article	Part No.
1	Horn	9565839
3	Nut	11900429 (replaces 7967953)
4	Electronic unit	4092037
4	Electronic unit	4094306
4	Electronic unit	4251831
5	Bracket	9565995
6	Rivet	92153058 (replaces 7972490)
6	Rivet	7961642
7	Screw	7922818
8	Diode	5544721 (replaces 4090981)
9	Connector housing	9518713
10	Cable terminal	9552100
11	Bracket	9593161
12	Switch	9514860
13	Protection	30526035 (replaces 9512229)
14	Screw	7922974
15	Protection	9569997
17	Cable harness	4066932
17	Cable harness	4066940
