Saab 9000 1990-1993 Bosch 80A

Group 3a Electrical, general, section 140

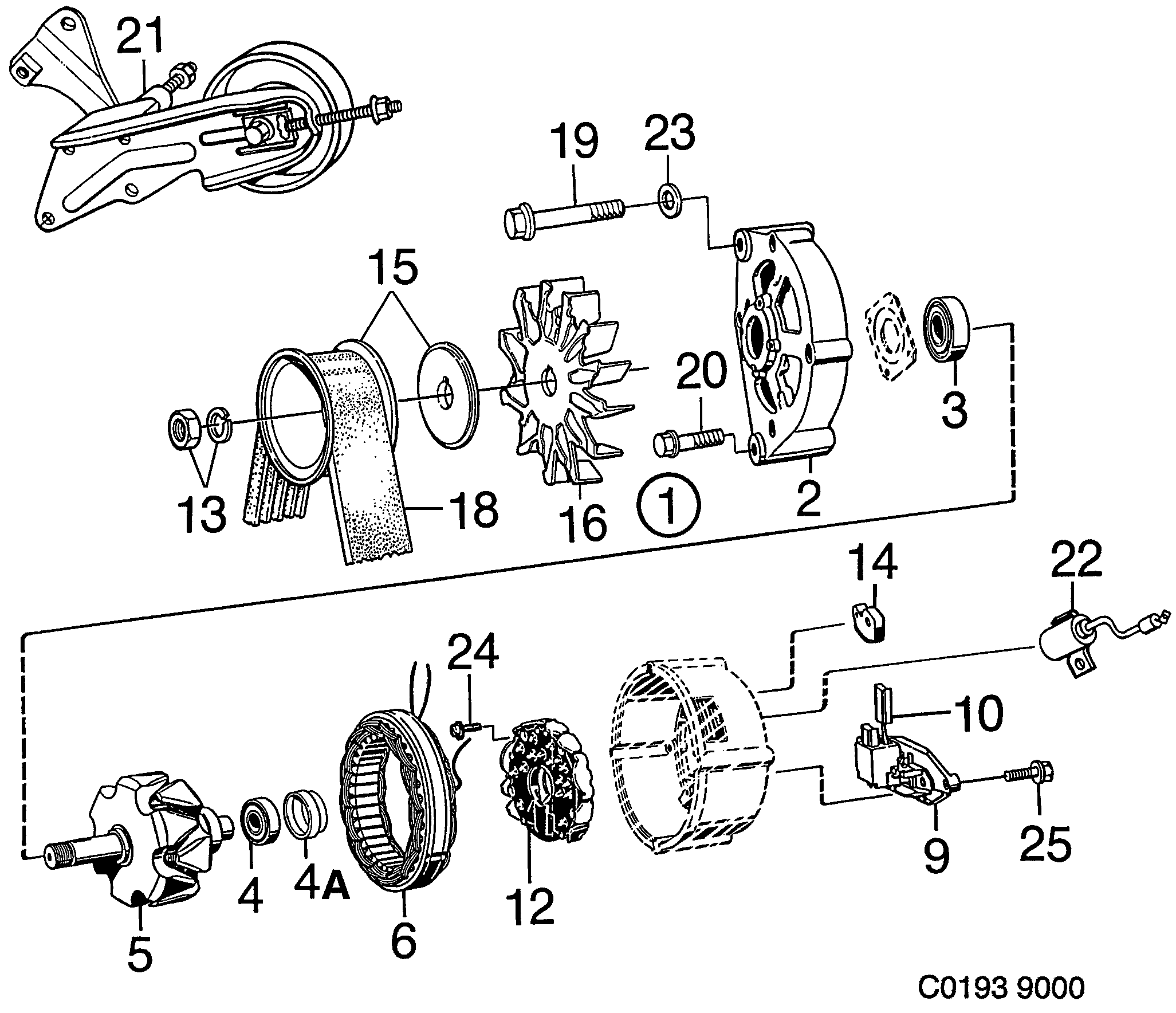

Saab 9000 Bosch 80A diagram

Pos	Article	Part No.
1	Generator	9529033
1	Generator	9562752
2	Bearing	9513763
3	Ball bearing	8549545 (replaces 9513128)
4	Ball bearing	9513185
4A	O-ring	9124355 (replaces 9513193)
5	Rotor	9513144
6	Stator	9513169
9	Voltage regulator	90349907 (replaces 8590549)
10	Brush set	9515180
12	Rectifier	9513177
13	Part kit	8590994
14	Protection	8593329
15	Pulley	9503715
15	Pulley	4063475
16	Fan disc	8587248
18	Belt	93185054 (replaces 7596679)
18	Belt	93185054
18	Belt	93185054 (replaces 4356887)
18	Belt	93185054 (replaces 93185057)
18	Belt	93185055 (replaces 4029195)
18	Belt	4356895
18	Belt	93185051 (replaces 4029203)
18	Belt	93185051 (replaces 4356903)
19	Screw	7974777
19	Screw	8098378
22	Capacitor	9523184
23	Washer	8073108
24	Screw	9513599
25	Screw	8571986
