Saab 9000 1994-1998 Electrical system ABS, TCS, ETS

Group 3a Electrical, general, section 1380

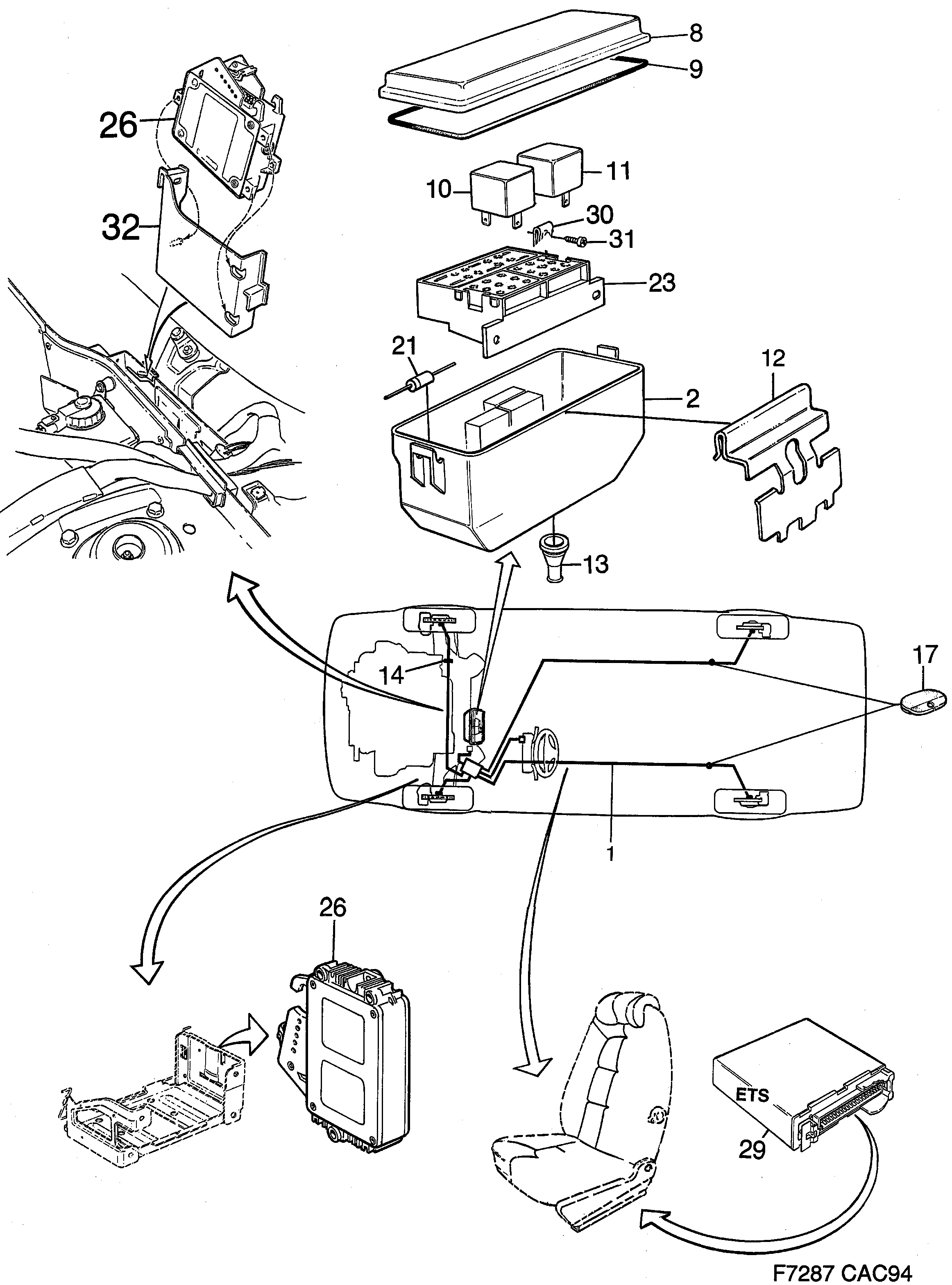

Saab 9000 Electrical system ABS, TCS, ETS diagram

Pos	Article	Part No.
1	Cable harness	4352357
1	Cable harness	4175451
2	Box	4111118
8	Cover	9519919
9	Seal	9519927
10	Relay	8533176
11	Relay	9522822
12	Bracket	4360780
13	Protection	9519745
14	Clip	9228149
17	Cover	9279878
21	Diode	4424172
23	Connector housing	9125543
26	Electronic unit	4199626
26	Electronic unit	4198602
26	Electronic unit	4197927
27	Screw	92153218 (replaces 7982176)
29	Electronic unit	4392601
29	Electronic unit	4302378
29	Throttle control module	4239190
30	Clip nut	7968001
31	Screw	92153219 (replaces 7970601)
32	Bracket	4424917
