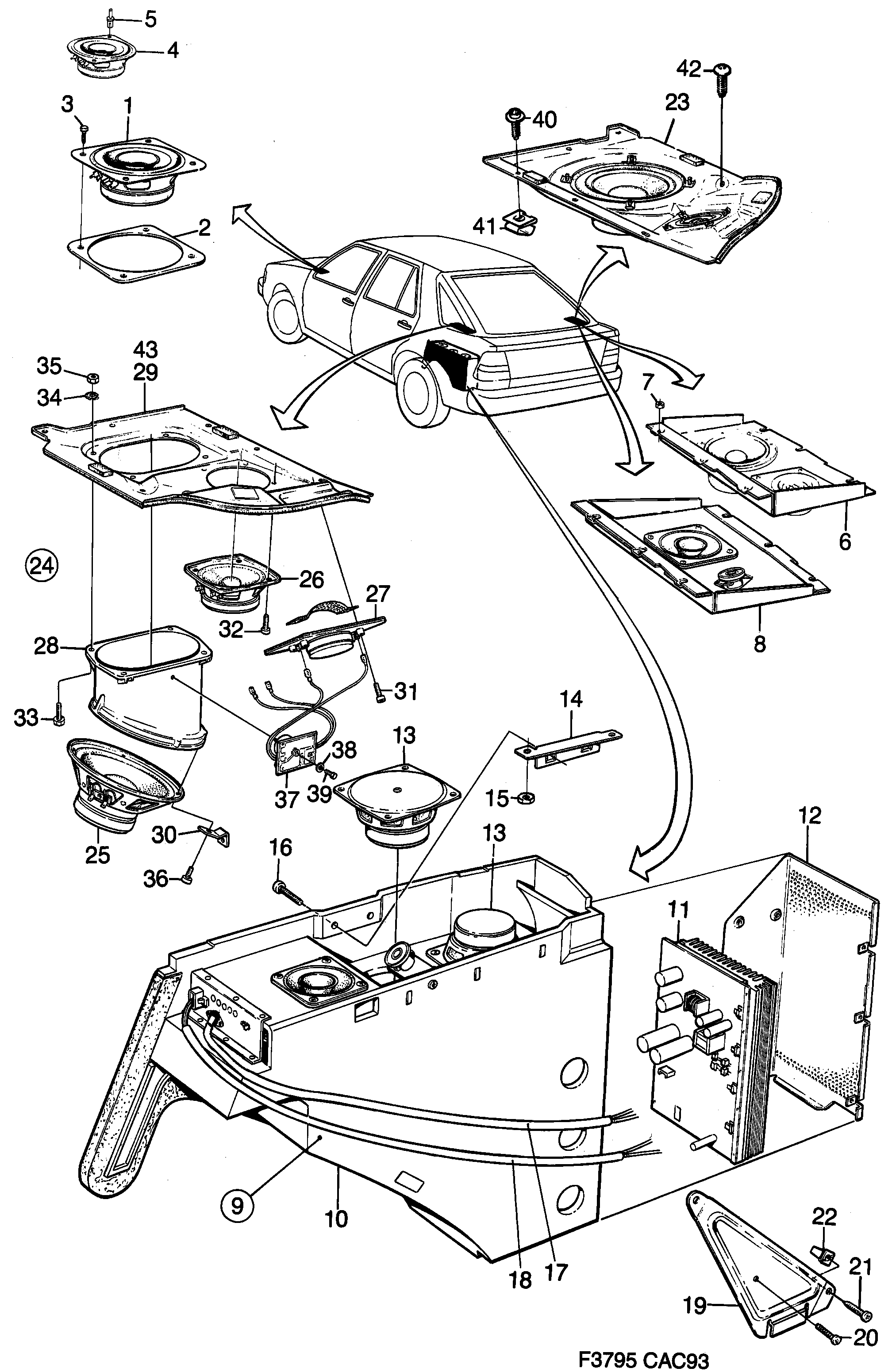

Group 3a Electrical, general, section 1370
| Pos | Article | Part No. |
|---|---|---|
| 1 | Loudspeaker | 4439121 (replaces 9522806) |
| 1 | Loudspeaker | 4439121 |
| 1 | Loudspeaker | 4085239 (replaces 4067534) |
| 1 | Loudspeaker | 4085239 |
| 2 | Spacer | 9509076 |
| 3 | Screw | 7972128 |
| 4 | Loudspeaker | 4439113 (replaces 9522814) |
| 4 | Loudspeaker | 4439113 |
| 4 | Loudspeaker | 4067542 |
| 4 | Loudspeaker | 4085148 |
| 5 | Rivet | 7399256 |
| 6 | Loudspeaker | 9522632 |
| 6 | Loudspeaker | 9522624 |
| 6 | Loudspeaker | 4084695 |
| 6 | Loudspeaker | 4084687 |
| 6 | Loudspeaker | 4067567 |
| 6 | Loudspeaker | 4067575 |
| 6 | Loudspeaker | 4083119 |
| 6 | Loudspeaker | 4083127 |
| 7 | Nut | 7977671 |
| 8 | Loudspeaker | 9524042 |
| 9 | Housing, loudspeaker | 9524315 |
| 10 | Housing, loudspeaker | 9524307 |
| 11 | Booster | 9524372 |
| 12 | Cover plate | 9524398 |
| 13 | Loudspeaker | 9524406 |
| 14 | Attaching bracket | 9564519 |
| 15 | Nut | 8029548 |
| 16 | Screw | 11900355 (replaces 7978117) |
| 18 | Cable harness | 9526096 |
| 19 | Bracket | 9564741 |
| 19 | Bracket | 4063715 |
| 20 | Screw | 7922818 |
| 21 | Screw | 7922834 |
| 21 | Screw | 11900354 (replaces 7978109) |
| 22 | Nut | 7975261 |
| 23 | Loudspeaker | 4619219 (replaces 9528167) |
| 23 | Loudspeaker | 4619227 (replaces 9528159) |
| 23 | Loudspeaker | 4083275 |
| 23 | Loudspeaker | 4083283 |
| 23 | Loudspeaker | 4714655 (replaces 4109039) |
| 23 | Loudspeaker | 4714648 (replaces 4109047) |
| 23 | Loudspeaker | 4085213 |
| 23 | Loudspeaker | 4085221 |
| 24 | Loudspeaker | 4063418 |
| 24 | Loudspeaker | 4063400 |
| 24 | Loudspeaker | 4111233 |
| 24 | Loudspeaker | 4111225 |
| 25 | Loudspeaker | 9529181 |
| 26 | Loudspeaker | 9529199 |
| 27 | Loudspeaker | 9529207 |
| 28 | Tube | 9529173 |
| 28 | Tube | 4111472 |
| 29 | Bracket | 4063434 |
| 29 | Bracket | 4063426 |
| 29 | Bracket | 4084778 |
| 29 | Bracket | 4084760 |
| 30 | Attaching bracket | 9567405 |
| 30 | Attaching bracket | 4174934 |
| 31 | Screw | 7922602 |
| 32 | Screw | 7922644 |
| 33 | Screw | 8019705 |
| 34 | Star washer | 92152203 (replaces 7915556) |
| 36 | Screw | 92151805 (replaces 8059230) |
| 37 | Filter | 9568866 |
| 40 | Screw | 92151992 (replaces 7972938) |
| 41 | Nut | 9692849 |
| 41 | Nut | 11900451 (replaces 7977929) |
| 42 | Screw | 7922420 |
| 43 | Bracket | 9571621 |
| 43 | Bracket | 9571159 |
