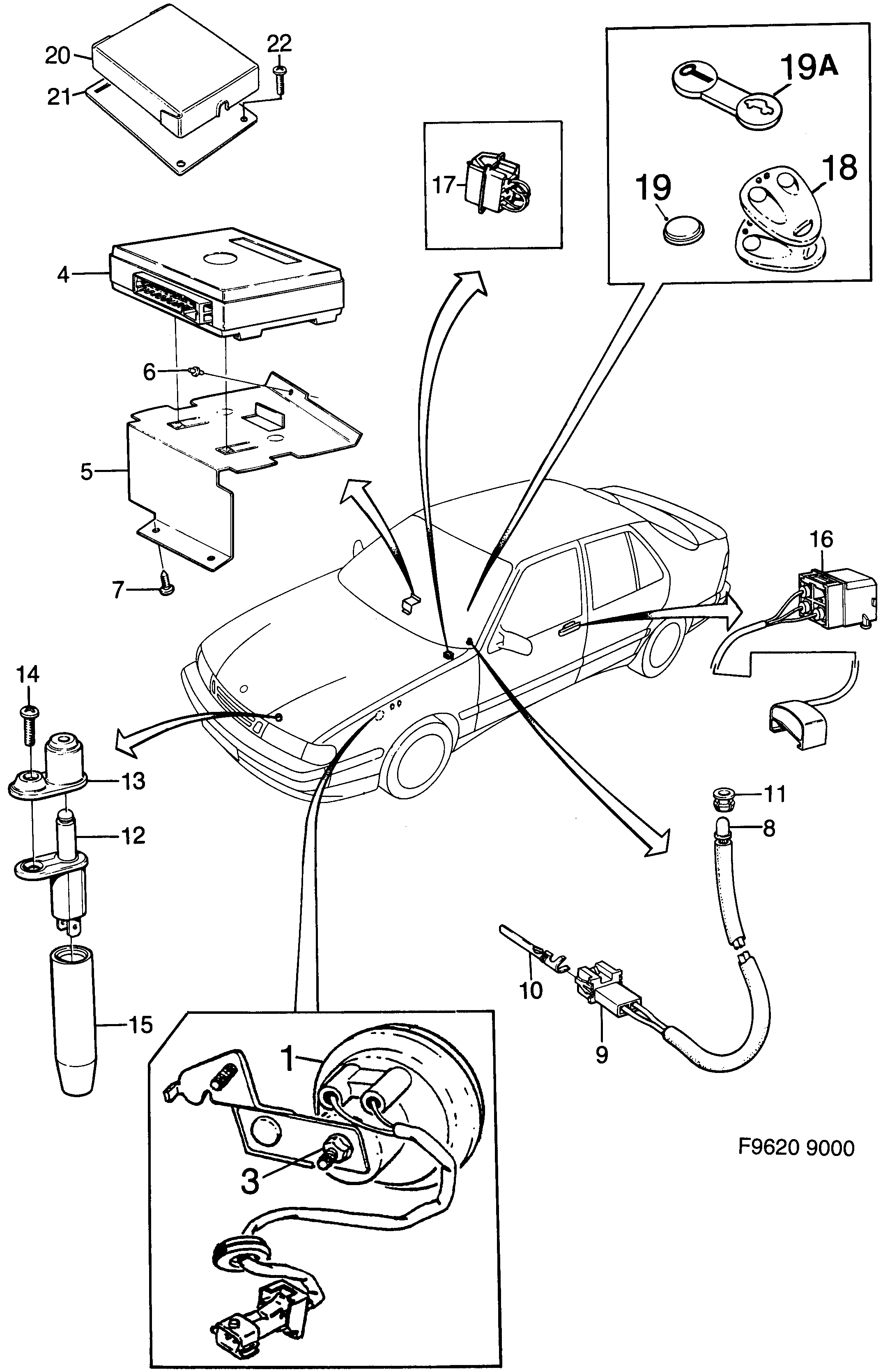

Group 3a Electrical, general, section 1320
| Pos | Article | Part No. |
|---|---|---|
| 1 | Horn | 9565839 |
| 1 | Horn | 4493276 |
| 3 | Nut | 11900429 (replaces 7967953) |
| 3 | Hexagon nut | 11900452 (replaces 7977952) |
| 4 | Electronic unit | 4251831 |
| 4 | Electronic unit | 4550133 |
| 4 | Electronic unit | 4588869 |
| 4 | Electronic unit | 4550166 |
| 4 | Electronic unit | 4619441 |
| 4 | Electronic unit | 4550117 |
| 5 | Bracket | 9565995 |
| 6 | Rivet | 7961642 |
| 7 | Screw | 7922818 |
| 7 | Screw | 92150118 (replaces 7970536) |
| 8 | Diode | 5544721 (replaces 4090981) |
| 8 | Diode | 5544721 (replaces 4870333) |
| 9 | Connector housing | 9518713 |
| 10 | Cable terminal | 9552100 |
| 11 | Bracket | 9593161 |
| 12 | Switch | 9514860 |
| 13 | Protection | 30526035 (replaces 9512229) |
| 14 | Screw | 7922974 |
| 14 | Screw | 7922891 |
| 15 | Protection | 9569997 |
| 17 | Cable harness | 4066932 |
| 17 | Cable harness | 4586822 |
| 17 | Cable harness | 4665055 |
| 17 | Cable harness | 4066940 |
| 18 | Transmitter | 4550091 |
| 18 | Transmitter | 4550083 |
| 18 | Transmitter | 4550075 |
| 19 | Battery | 4555462 |
| 19A | Button | 5040274 |
| 20 | Protection | 4618716 |
| 21 | Protection | 4618724 |
| 22 | Screw | 7399520 |
